DM STC-1000 Operation Instruction

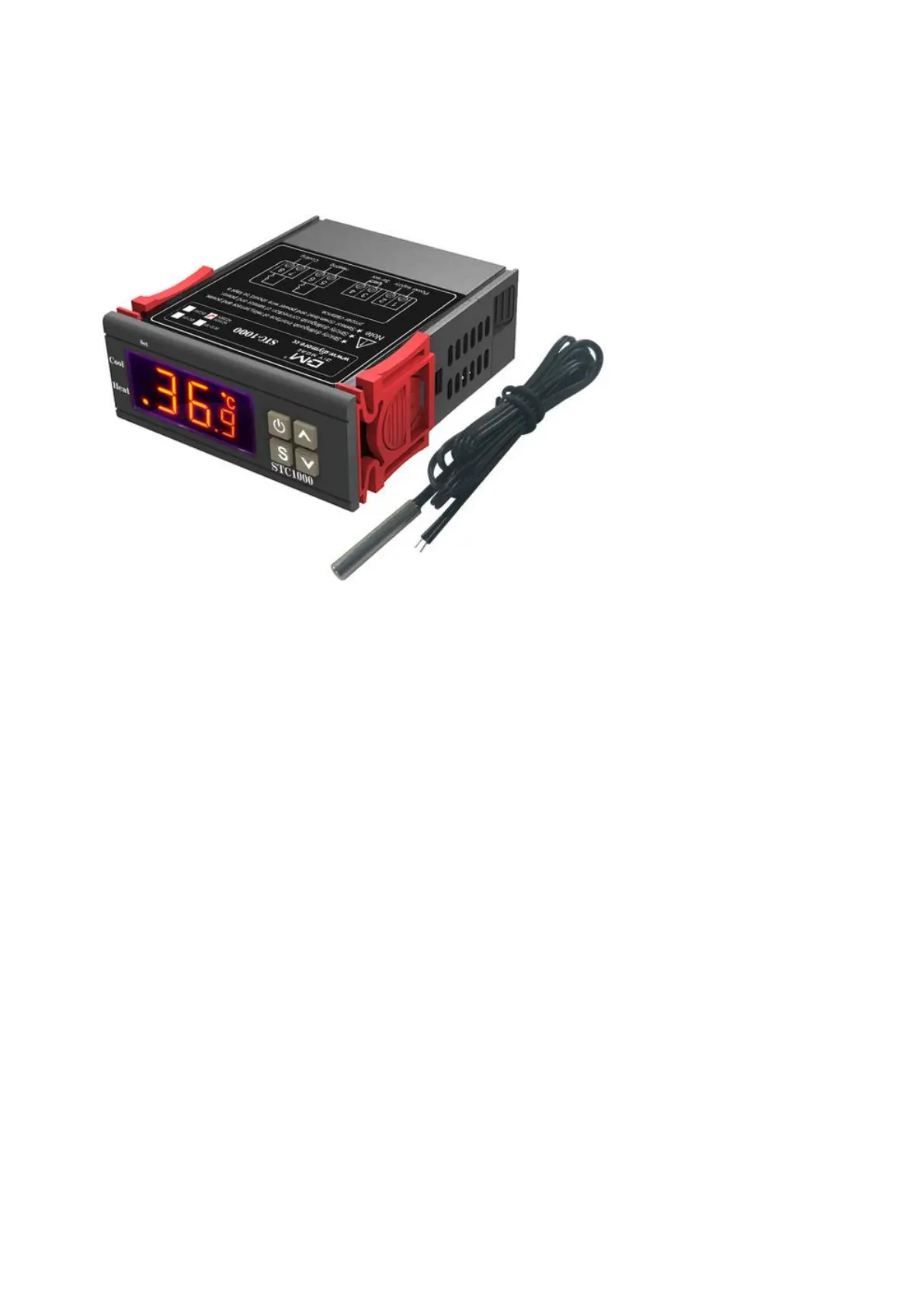

STC-1000
Temperature Controller
Main function
Switch the modes between cool and heat; Control temperature by setting the temperature set value and the
difference value; Temperature calibration; Refrigerating control output delay protection; Alarm when temperature
exceeds temperature limit or when sensor error.
Specification and size
Front panel size: 75(L)x34.5(W)(mm)
Mounting size: 71(L)x29(W)(mm)
Product size: 75(L)*34. 5(W)x85(D)(mm)
Sensor length: 1m(include theprobe)
Technical parameters
Temperature measuring range:50°C~120°C
Resolution:0.1 °C
Accuracy:±1 °C(50°~70°C)
Power supply: DC 12V-72V/AC 110V-220V
Power consumption: <3W
