AGRAS T40/T20 P
Unmanned Aircraft Flight Manual
4
6
2
3
5
1
10
18
21
20
15
14
13
19
11
12
9
7
17
8
16
T20P
4
6
2
3
5
1
10
18
21
20
15
14
13
19
11
12
9
7
17
8
16

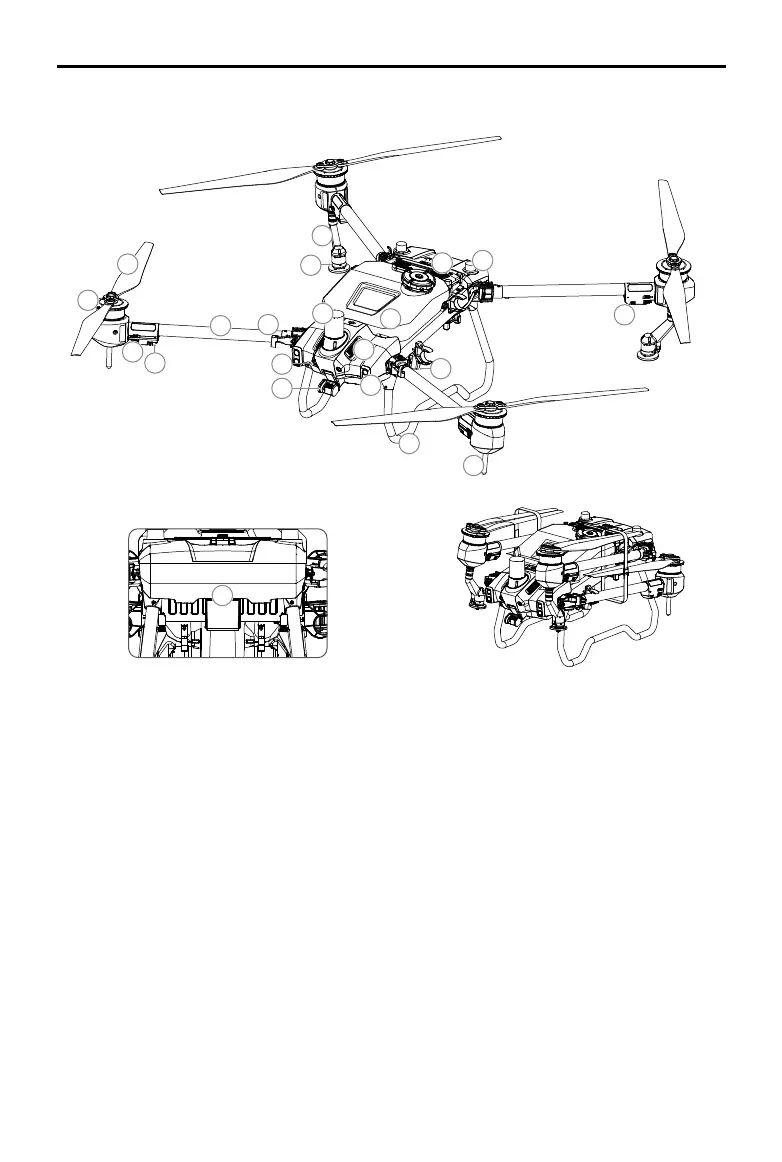

1. Propellers
2. Motors
3. ESCs
4. Aircraft Front Indicators
(on two front arms)
5. Frame Arms
6. Folding Detection
Sensors (built-in)
7. Spray Lance
8. Sprinklers
9. Spray Tank
10. Delivery Pumps
11. FPV Camera
12. Binocular Vision System
13. Spotlights
14. Heat Sinks
15. Active Phased Array
Omnidirectional Radar
16. Active Phased Array
Backward and Downward
Radar
17. Intelligent Flight Battery
18. Landing Gear
19. OcuSync Image
Transmission Antennas
20. Onboard D-RTK
Antennas
21. Aircraft Rear Indicators
(on two rear arms)
Rear View
Folded
