DJI Avata 2 User Manual
20
©
2024 DJI All Rights Reserved.
Linking
The aircraft, goggles, and motion controller are already linked when purchased together as a
combo. Otherwise, follow the steps below to link the devices.
Make sure that the devices used with the aircraft have been updated to the latest firmware
version via the DJI ASSISTANT
TM
2 (Consumer Drone Series) software before linking and
powered on.

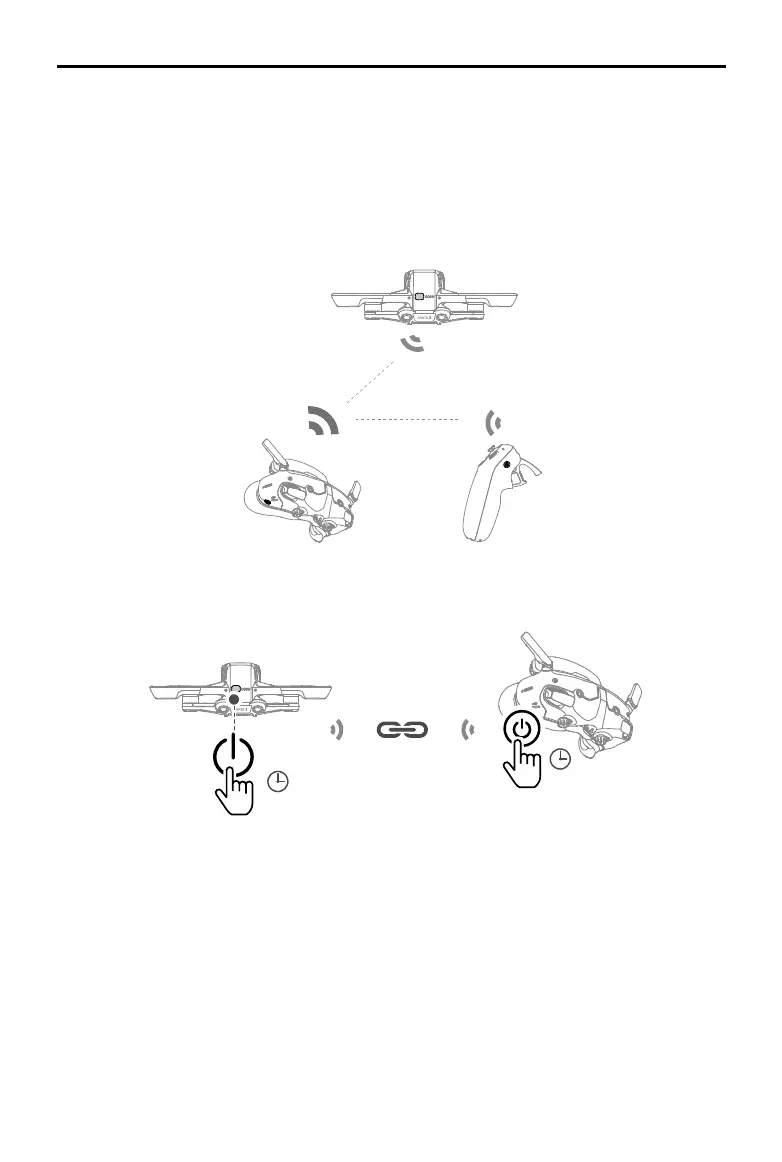

1. Linking the aircraft and the goggles:
a
.
Press and hold the power button on the aircraft until it beeps once and the battery level
LEDs start to blink in sequence.
b
.
Press and hold the power button on the goggles until the goggles start to beep
continuously and the battery level LEDs start to blink in sequence.
c
.
Once linking is completed, the battery level LEDs of the aircraft turn solid and display
the battery level, the goggles stop beeping, and image transmission can be displayed
normally.
5s
5s

dji AVATA 2 Specifications

General

Type	Quadcopter
Product color	Black
Construction type	Ready-to-fly (RTF)
Suitable for outdoor use	Yes
Maximum speed	27 m/s
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Number of rotors	4 rotors
Bluetooth version	5.0
Maximum flight time	23 min
Maximum flight altitude	5000 m
Maximum weight capacity	- kg
Maximum wind resistance	10.7 m/s
Horizontal hover accuracy	0.3 m
Maximum operating distance	13000 m
Megapixel	12 MP
Video color modes	D-Log, Normal
Video resolutions	1440 x 1080, 1920 x 1080, 2688 x 1512, 2688 x 2016, 3840 x 2160 pixels
Maximum frame rate	60 fps
Optical sensor size	1/1.3 \
Camera shutter speed	Video: 1/8000-1/30, Photo: 1/8000-1/50 s
Mechanical tilt range	-95 - 90 °
Normal focusing range	0.6 - ∞ m
Supported file systems	exFAT
Angular vibration range	-0.01 - 0.01 °
Image formats supported	JPEG
Maximum aperture number	2.8
Video formats supported	H.264, H.265, MP4
Maximum image resolution	4000 x 3000 pixels
Maximum video resolution	3840 x 2880 pixels
Field of view (FOV) angle	155 °
Bitrate at maximum video resolution	130 Mbit/s
Built-in processor	-
Internal memory	46 GB
Operating frequency	2400 - 2483.5 MHz
Battery voltage	14.76 V
Battery capacity	2150 mAh
Antennas quantity	4
Operating temperature (T-T)	-10 - 40 °C
Equivalent Isotropically Radiated Power (EIRP)	10 dBmW
Package type	Box
Cables included	USB Type-C

Weight and Dimensions

Depth	212 mm
Width	185 mm
Height	64 mm
Weight	377 g
