Calibration

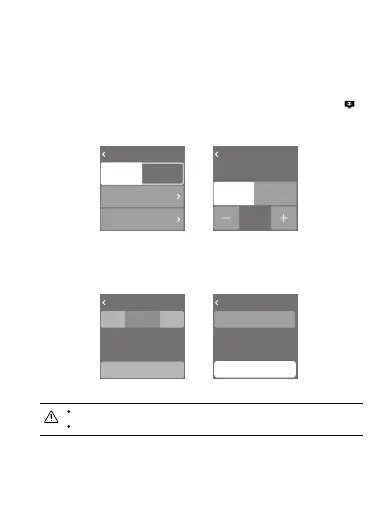

The 3D Focus System must be calibrated before using for the first time. Follow the
steps below to calibrate. A person or large object must be placed in the center of the
camera view in order to calibrate.
1. Power on the DJI RS 2 gimbal, swipe up on the touchscreen, tap Dial Functions,
and Focus Motor.
2. Return to the home screen, swipe left, tap Create, swipe up, and tap 3D Focus .
3. Tap Lens Calibration. Perform Focus Motor Calibration by following the prompts and
select the focal length.
Lens1
Focal Len
3D Focus
Lens Calibration
4. Focus the 3D Focus Sytem on a person or large object in the center of the camera view
that is approx. 1 m away. Keep the camera stable and DO NOT move the gimbal
until the progress bar is completely green. Adjust the front dial until the subject is in
focus and tap Confirm.
Keep camera stable
NOW: 1.1m
Lens 1 Calibration
Focus on subject
around 1m away
Lens 1 Calibration
Confirm
Keep camera stable
Focus on subject
around 1m away
NOW: 1.1m
Confirm
5. Repeat the previous step with a person or large object that is approx. 4 m away.
The 3D Focus System must be recalibrated if the lens is replaced.
It is recommended to focus on a person during calibration.
