Check the Battery Level and Charging

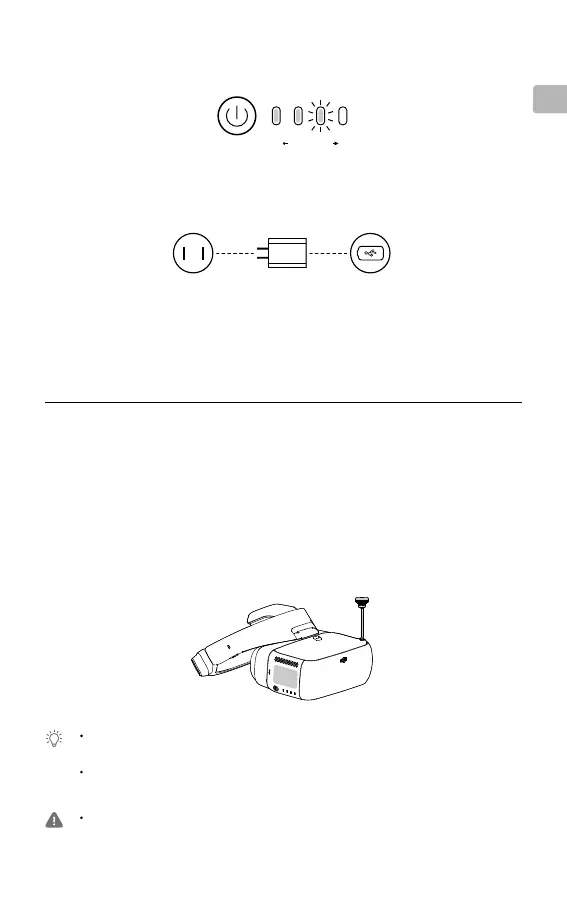

Press once to check the battery level.
Press once, then again and hold to turn on/off.
The Battery is fully charged when the Charging Status Indicator or the Battery
Level Indicators turn off.
Charge time: ~ 4 hours Maximum run-time: ~ 6 hours
Power Outlet
100~240V
USB Charger Micro USB Port
Low HighBattery Level
Module Connections
When using with third-party racing drones, you can choose between either analog or digital
video transmission. Please follow the instructions below for installation and connection.
Skip this section if you plan on using the goggles with a dedicated DJI drone.
Analog Video Transmission
Install the Pagoda antenna (SMA interface) to the SMA Port of DJI Goggles RE directly.
The analog frequency band is 5.650 GHz - 5.925 GHz, of which 5.725 GHz - 5.850 GHz are ISM frequency
bands. You may use these frequencies without permission but please follow local regulatory procedures
when using the other frequency bands.
The Pagoda antenna is an omnidirectional left hand circularly polarized (LHCP) antenna design. It is
recommended to use the Pagoda antenna or other left hand circularly polarized antennas for analog
transmitters to get the best transmission performance.
In a multi-aircraft ying environment, the adjacent frequency interval should be higher than 25 MHz to avoid
the live view of your DJI Goggles RE being affected by a nearby frequency.
