dji Goggles Quick Start Guide

EN
7
Specications
Weight (Typical) DJI Goggles Body: 495 g
Headband: 500 g
Dimensions DJI Goggles Body: 195 × 155 × 110 mm
Headband (folded): 255 × 205 × 92 mm
Screen Size 5 inch × 2
Screen Resolution 3840 × 1080 (single screen: 1920 × 1080)
Communication Frequency 2.4 GHz
Live View Modes 1080p30, 720p60, 720p30
Battery Capacity 9440 mAh
Operating Temperature Range 32° to 104° F (0° to 40° C)
Charger Input: 100-240 VAC, 50 / 60 Hz, 0.5 A
Output: 5 V
3 A / 9 V 2 A / 12 V 1.5 A
DJI is a trademark of DJI.
Copyright © 2017 DJI All Rights Reserved.
The content is subject to change.
Download the latest version from
www.dji.com/dji-goggles
Controls

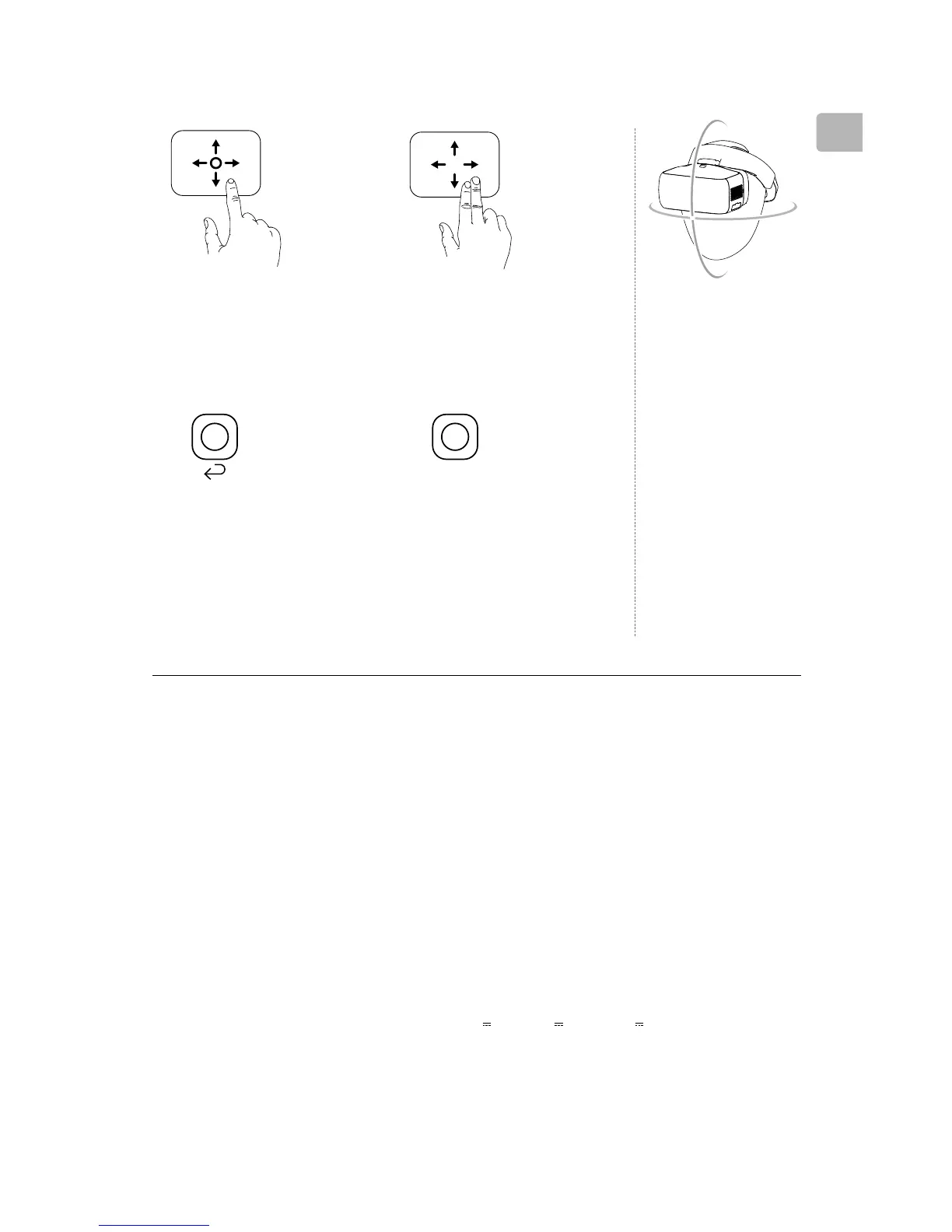

Single Finger Touch /
5D Button*
●
Swipe to scroll on the menu
●
Tap to conrm
Two Fingers Touch
●
Swipe forward/backward to unlock/
lock the touch panel
●
Swipe upward/downward to exit/enter
the shortcut menu
Only support:
Mavic Pro
Phantom 4 Series
Somatic Control
DJI Goggles support
head tracking, allowing
aircraft and gimbal to
be controlled using
head movements. Multi
Intelligent Flight Modes
are also supported.
Function Button / C1 Button*
Press to show the focus cursor, swipe
forward/backward with one nger to zoom
in or zoom out. Move your head then tap
the touch panel to dene the focus point.
Back Button / C2 Button*
Press to return to the previous
menu, or exit the current
Intelligent Flight Mode.
* When connected with Mavic Pro, the 5D, C1, and C2 buttons on the remote controller
will be used to control the DJI Goggles and their original function is disabled.
Fn

dji Goggles Specifications

Display

screen size	5 inch × 2
screen resolution	3840 × 1080 (single screen: 1920 × 1080)
live view modes	1080p30, 720p60, 720p30

Power

battery capacity	9440 mAh
charger input	100-240 VAC, 50 / 60 Hz, 0.5 A
charger output	5 V 3 A / 9 V 2 A / 12 V 1.5 A

Operating Environment

operating temperature range	32° to 104° F (0° to 40° C)
communication frequency	2.4 GHz

Weight and Dimensions

weight (DJI Goggles Body)	495 g
weight (Headband)	500 g
dimensions (DJI Goggles Body)	195 × 155 × 110 mm
dimensions (Headband folded)	255 × 205 × 92 mm
