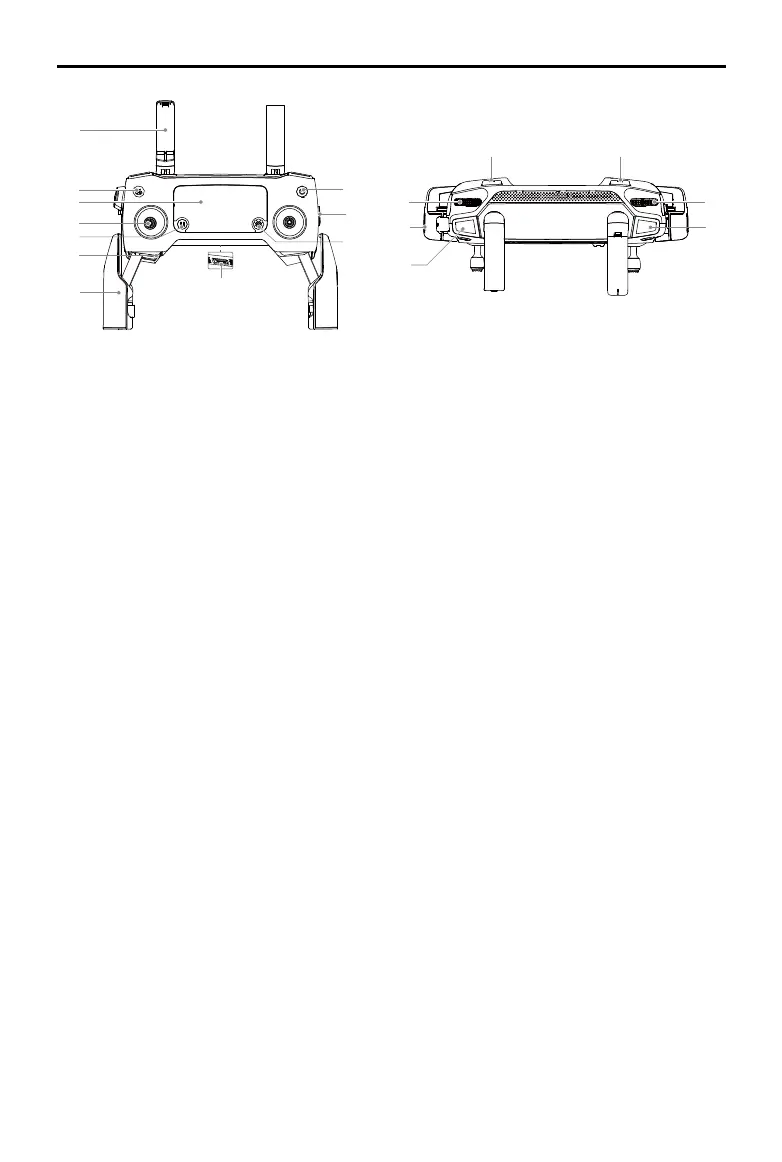

1. Antennas
Relay aircraft control and video wireless
signals.
2. Return to Home (RTH) Button
Press and hold the button to initiate RTH.
The aircraft returns to the last recorded home
point. Press again to cancel RTH.
3. LCD Screen
Displays the aircraft and Remote Controller
system status.
4. Removable Control Sticks
The removable control sticks are easy to
store. The default ight control is set to Mode
2. Set the ight control mode in DJI GO 4.
5. Flight Pause Button
Press to make the aircraft brake and hover in
place (only when GPS or Vision System are
available). Please note that the flight pause
button has different functions in different
Intelligent Flight Modes. For details, refer to
the Intelligent Flight Mode section.
6. Control Sticks Storage Slot
For storing the control sticks.
7. Mobile Device Clamps
Securely mount your mobile device onto the
remote controller.
8. Reserve Video-Downlink Port (USB)
Connect to a mobile device for video
downlink via a standard USB cable.
9. 5D Button
The default configuration is listed below.
The conguration can be adjusted based on
your preferences in DJI GO 4.
Left: Decrease EV value.
Right: Increase EV value.
Up: Recenter gimbal/gimbal downward.
Down: Recenter gimbal/gimbal downward.
Press down: Bring up DJI GO 4 Intelligent
Flight menu.
10. Flight Mode Switch
Switch between S-mode, P-mode, and
T-mode.
11. Power Button
Press once to check the current battery
level. Press once, then again, and hold to
turn on/o the remote controller.
12. C1 Button (Customizable)
The default configuration is center focus.
Adjust the conguration in DJI GO 4 based
on your preferences.
13. Gimbal Dial
Controls the camera's tilt.
14. Video-Downlink/Power Port (micro USB)
Connect to a mobile device for video
linking via the RC cable. Connect to the
12
13
14
15
17
16
18
1
2
11
10
9
3
4
5
6
7
8

dji MAVIC 2 PRO Specifications

General

Type	Quadcopter
Backlight	Yes
Product color	Gray
Construction type	Ready-to-fly (RTF)
Maximum speed	20 m/s
Frequency band	2.400 - 2.483, 5.725 - 5.850 GHz
Number of axis	3
Number of rotors	4 rotors
Maximum tilt angle	35 °
Hovering time (max)	29 min
Maximum flight time	31 min
Maximum ascent speed	5 m/s
Maximum descent speed	3 m/s
Maximum weight capacity	- kg
Maximum wind resistance	10 m/s
Vertical hover accuracy	0.5 m
Horizontal hover accuracy	1.5 m
Maximum operating distance	8000 m
Maximum pitch angular velocity	200 °/sec
Megapixel	20 MP
Sensor type	CMOS
Video resolutions	1920 x 1080, 3840 x 2160 pixels
Maximum frame rate	120 fps
Optical sensor size	1/1 \
Camera shutter speed	8 – 1/8000 s
Supported video modes	1080p, 2160p
Image formats supported	DNG, JPEG, RAW
Video formats supported	AVC, H.264, H.265, HEVC, MOV, MP4
Maximum image resolution	5472 x 3648 pixels
Maximum video resolution	3840 x 2160 pixels
Field of view (FOV) angle	77 °
Bitrate at maximum video resolution	100 Mbit/s
Operating temperature (T-T)	-10 - 40 °C
USB ports quantity	1
Operating frequency	2400 - 2483, 5725 - 5850 MHz
Maximum device width	160 mm
Output power	60 W
AC adapter power	80 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.41 A
AC adapter output voltage	17.6 V
Equivalent Isotropically Radiated Power (EIRP)	26 dBmW
Internal memory	8 GB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
Built-in processor	-
Battery voltage	15.4 V
Battery capacity	3850 mAh
Transmitter battery capacity	3950 mAh
Moving control functions	Backward, Downward, Forward, Turn left, Turn right, Upward
Cables included	Lightning, Micro-USB, USB Type-C

Weight and Dimensions

Depth	322 mm
Width	242 mm
Height	84 mm
Weight	907 g
Battery weight	297 g
