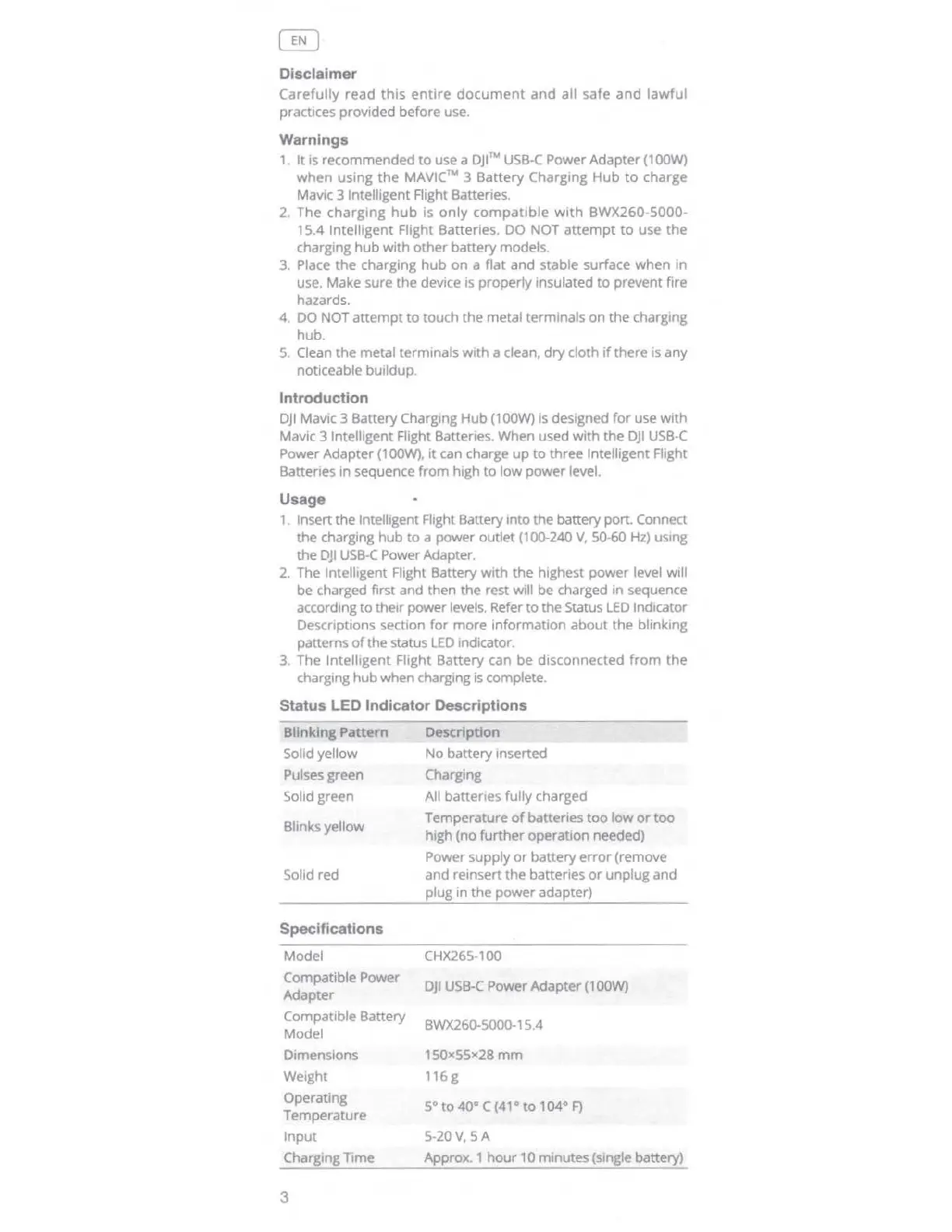

Disclaimer
Carefully
read
this
entire
document
and
all safe
and
lawful
practices provided before use.
Warnings
1.
It
is recommended
to
use a
OJI™
USB-C
Power Adapter
(1
00W)
when
using the
MAVIC™
3 Battery Charging
Hub
to
charge
MavIc 3 Intelligent Flight Batteries.
2.
The
charging
hub
is
only
compatible
with
BWX260-5000-
15.4 Intelligent Flight Batteries. DO NOT
attempt
to
use the
charging
hub
with other battery models.
3. Place the charging
hub
on a flat
and
stable surface
when
in
use. Make sure the device is properly insulated
to
prevent fire
hazards.
4. DO NOT
attempt
to
touch the metal terminals
on
the charging
hub.
5.
Clean the metal terminals
with
a clean,
dry
cloth
if
there is any
noticeable buildup.
Introduction
DJI
Mavic 3 Battery Charging Hub
(1
00W)
is
designed
for
use with
Mavic 3 Intelligent Flight Batteries. When used with the
DJI
USB-C
Power Adapter
(1
00W),
it
can charge up
to
three Intelligent Flight
Batteries
In
sequence
from
high to
low
power level.
Usage
1.
Insert the Intelligent Flight Battery into the battery port. Connect
the charging
hub
to
a power outlet (100-240
V,
50-60
Hz)
using
the
DJI
USB-C
Power Adapter.
2.
The Intelligent Flight Battery with the highest power level will
be charged first and then the rest will be charged
in
sequence
according
to
their power levels. Refer
to
the Status
LED
Indicator
Descriptions section
for
more information
about
the blinking
patterns
of
the status
LED
indicator.
3.
The Intelligent Flight Battery can be disconnected
from
the
charging hub when charging
is
complete.
Status LED Indicator Descriptions
Bllnklng Pattern
Solid yellow
Pulses green
Solid green
Blinks yellow
Solid red
Specif
ic
ations
Model
Compatible Power
Adapter
Compatible Battery
Model
Dimensions
Weight
Operating
Temperature
Input
Charging Time
3
Descr
iption
No
battery inserted
Charging
All batteries fully charged
Temperature
of
batteries
too
low
or
too
high (no further operation needed)
Power supply
or
battery
error
(remove
and reinsert the batteries
or
unplug and
plug in the power adapter)
CHX265-100
DJI
USB
-C Power Adapter
(1
00W)
BWX260-5000-15.4
150x55x28
mm
116 g
5°
to
40° C (41°
to
104°
F)
5-20V, 5 A
Approx. 1
hour
1 0 minutes (single battery)
