dji OSMO Quick Start Guide

Overview

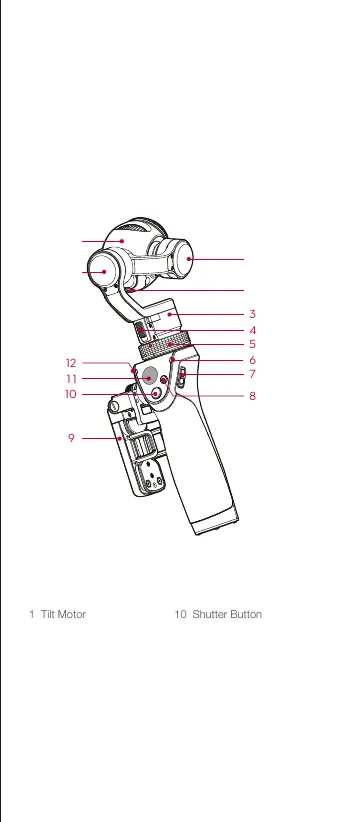

1 Tilt Motor
2 Micro USB Port
3 Pan Motor
4 Pan Axis Lock
5 Gimbal Lock
6 System Status LED
7 Power Switch
8 Record Button
9 Mobile Device Holder
Specifications
●
Handle
Dimensions 2.4×1.9×6.4 inches
(
61.8×48.2×161.5 mm
)
Weight
(
including battery
)
201 g
●
Gimbal
Model Zenmuse X3
Weight 221 g
Output Power (with camera) Static: 9 W; Dynamic: 11 W
Angular Vibration Range ±0.03°
Mount Detachable
Controllable Range Tilt:
-
35° to +135°
Pan: ±320°; Roll: ±30°
Mechanical Range Tilt: -90° to +150°
Pan: ±330°; Roll: -50° to +90°
Max. Controllable Speed 120°/s
●
Camera
Model X3/FC350H
Sensor Sony Exmor R CMOS; 1/2.3”
Effective pixels: 12.40 M
(
Total pixels: 12.76 M
)
Lens 94° FOV 20 mm
(
35 mm format equivalent
)
f/2.8
ISO Range 100
-
3200
(
video); 100
-
1600
(
)
Electronic Shutter Speed 8 s
-
1/8000 s
(
up to 30 s when camera is in M mode
)
Max. Image Size 4000×3000 pixels
Still Photography Modes Single Shot
Photo Burst Mode: 3/5/7 shots
Auto Exposure Bracketing
(
AEB
)
:
3/5 bracketed frames @ 0.7 EV bias
Interval
Timelapse
Auto Panorama
Selfie Panorama
Video Resolution UHD: 4K
(
4096×2160
)
24/25p
4K
(
3840×2160
)
24/25/30p
2.7K
(
2704×1520
)
24/25/30p
FHD: 1920×1080 24/25/30/48/50/60/120p
HD: 1280×720 24/25/30/48/50/60p
Video Recording Modes Auto; Slow Motion
Max. Video Bitrate 60 Mbps
Supported File Systems FAT32
(
≤ 32 GB
)
; exFAT
(
> 32 GB
)
Photo Formats JPEG, DNG
(
RAW
)
Video Formats MP4/MOV
(
MPEG-4 AVC/H.264
)
Supported SD Cards Micro SD; Max. Capacity: 64 GB;
Class 10 or UHS-1
Operating Temperature 32° to 104° F (0° to 40° C
)
Audio Output Two channel; 48 KHz; AAC
●
WiFi Video Link
Operating Frequency 2.412
-
2.462 GHz; 5.180
-
5.805 GHz
Max. Transmission Distance 82 feet (25 m
)
Transmitter Power
(
EIRP) 2.4G: 8 dBm; 5G: 12 dBm
●
Intelligent Battery
Model HB01-522365
Type LiPo
Capacity 980 mAh
Energy 10.8 Wh
Voltage 11.1 V
Charging Temperature 59° to 104° F
(
15° to 40° C
)
Operating Temperature 14° to 122° F
(
-10° to 50° C
)
●
Battery Charger
Model SOY015A
-
1260120
Input 100
-
240 V; 50/60 Hz
Output 12.6 V; 1.2 A
Optional Accessories
Extension Rod
Tripod
Bike Mount
Vehicle Mount
The Osmo is a professional handheld gimbal that
combines mobility and stability in one device. Its
camera shoots sharp 12MP still photos and stable
video at up to 4K. Your mobile device can be mounted
on the side of the handle and display a live feed
through the high-speed WiFi video link.
15 Air Vents
16 UV Filter
17 Micro SD Card Slot
18 Battery Cover
19 Lanyard Hole
20 Rosette Mount
21 Trigger
22 External Microphone Input
23 Built-in Microphone
10 Shutter Button
11 Joystick
12 Camera Status LED
13 Roll Motor
14 Camera
Visit the DJI Online Store for more information:
http://store.dji.com
1
3
2
7
6
5
4
8
10
9
1 1
13
14
12
15
16
17
20
18
22
2 1
19
23
OSMO
V1.0
Quick Start Guide
