dji PHANTOM 3 Advanced Manual

DJI Phantom 3 Advanced Manual
Last updated March 27 2020 Page 12 of 16

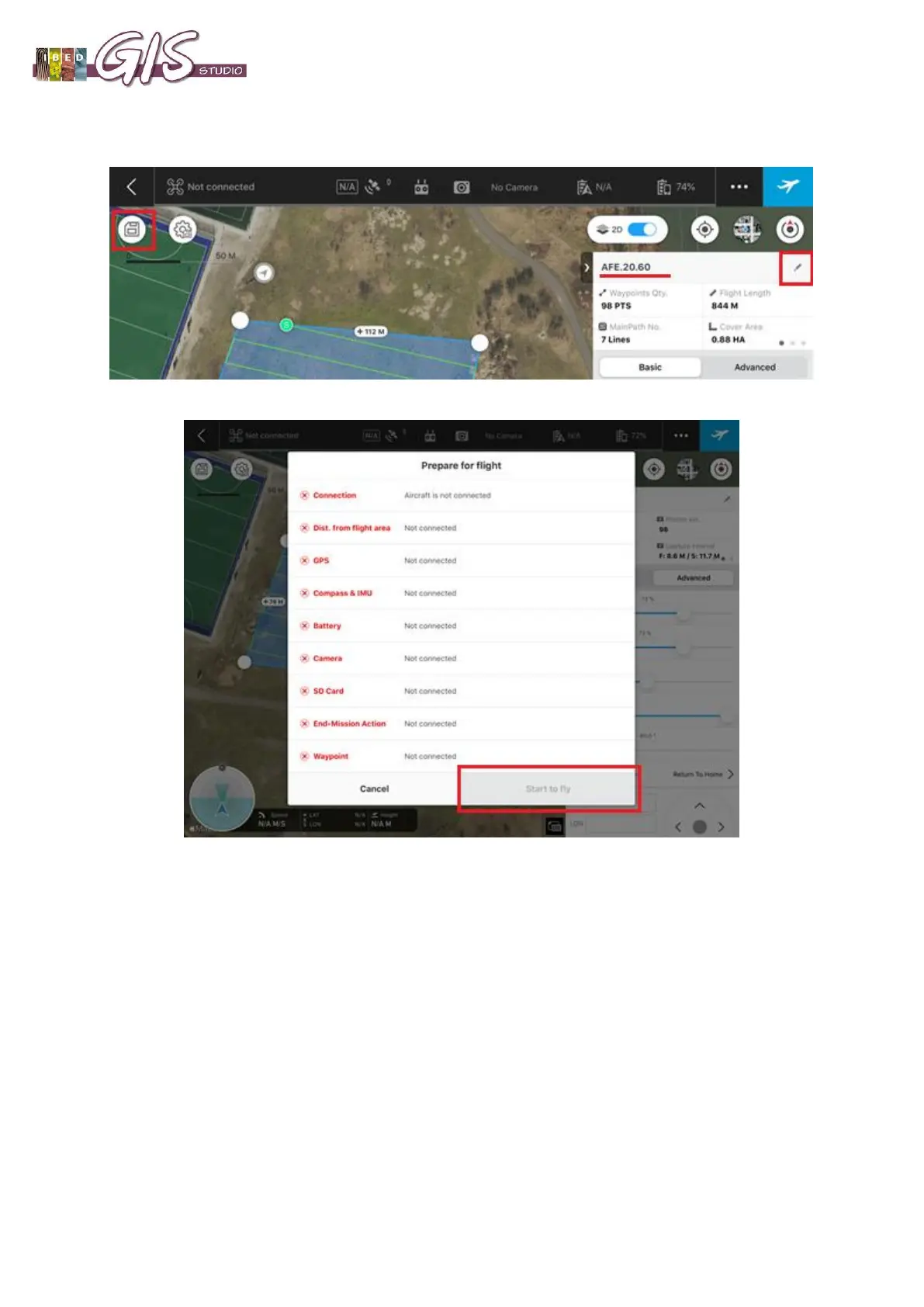

After you have set the settings for your flight plan you should give it a name and save it. If you are
ready to fly, you can go to the ‘Fly’ menu by clicking on the blue ‘Fly’ button in the top right corner.
The flight menu looks as follows:
The menu shows a checklist you should follow to prepare for your flight. Right now, the drone is not
connected, so all the fields are red and the ‘Start to fly’ button is disabled. When all fields are green,
you are good to go and you can click on the, then turned blue, button with the aircraft icon to start
to fly.
Whilst flying, you will see on the iPad what the drone is recording. The drone will automatically fly
the path and take photos, but you can adjust some settings while flying. The figure on the next page
is reprinted and modified from the DJI GS Pro app manual and shows what your in-flight-modus looks
like on the iPad.

dji PHANTOM 3 Specifications

General

Max Flight Time	23 minutes
Battery Capacity	4480 mAh
Weight	1280 g (Including battery and propellers)
Max Ascent Speed	5 m/s
Max Descent Speed	3 m/s
Max Service Ceiling Above Sea Level	6000 m
GPS Mode	GPS/GLONASS
Battery Voltage	15.2 V
Battery Type	LiPo 4S
Max Charging Power	100 W
Lens FOV	94°
Aperture	f/2.8
Shutter Speed	8s -1/8000s
Max Image Resolution	4000 x 3000
Max Bitrate	40 Mbps
Max Speed	16 m/s (ATTI mode, no wind)
Video Resolution	2.7K: 2704x1520p 24/25/30 (29.97); FHD: 1920x1080p 24/25/30/48/50/60
Operating Temperature	0°C to 40°C
Transmitter Power (EIRP)	20 dBm (FCC), 14 dBm (CE)
Video Recording Modes	2.7K, FHD
Camera Sensor	1/2.3" CMOS
ISO Range	100-3200 (video), 100-1600 (photo)
Photo Formats	JPEG, DNG
Video Formats	MP4/MOV (H.264)
Remote Controller Operating Frequency	2.4 GHz
Mobile Device Holder	For mobile phones or tablets
Hover Accuracy Range	Vertical: +/- 0.5 m; Horizontal: +/- 1.5 m
