dji PHANTOM 3 Advanced Manual

DJI Phantom 3 Advanced Manual
Last updated March 27 2020 Page 4 of 16
Quick Start Guide
SETUP

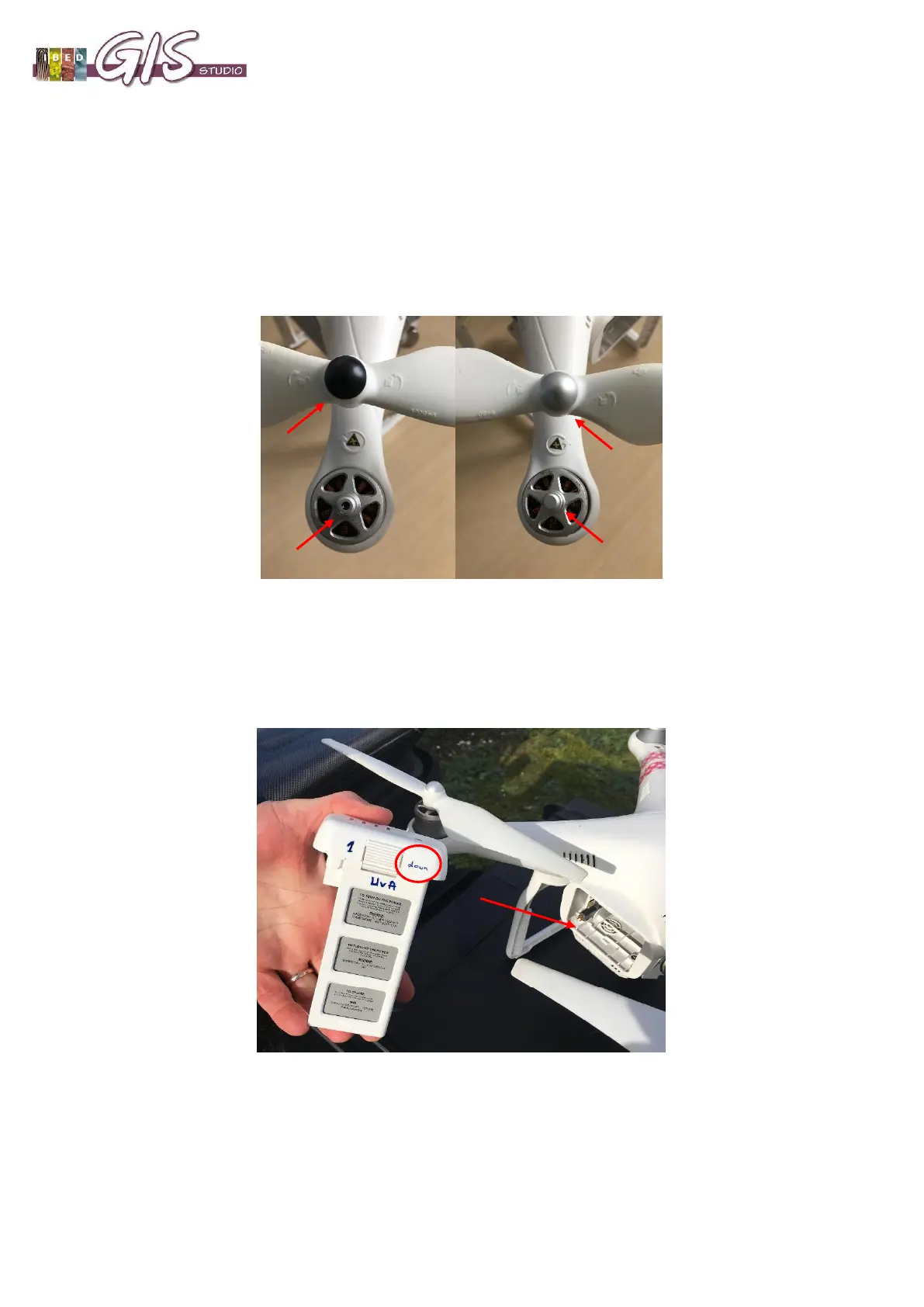

1. Attach the propellers to the drone. Make sure that:
- The black propellers are on the black base (see photo)
- The grey propellers are on the grey base (see photo)
- Follow the instructions on the propellers for tightening/loosening
2. Put the battery in the drone
- Make sure that ‘down’ is facing down when inserting the battery into the drone
- It is advisable to start with battery #1 and when this one is empty swap for
battery #2. This way, it is easy to keep track of which batteries are empty and
which are still fully charged.
3. Take the protective cap off the camera

dji PHANTOM 3 Specifications

General

Max Flight Time	23 minutes
Battery Capacity	4480 mAh
Weight	1280 g (Including battery and propellers)
Max Ascent Speed	5 m/s
Max Descent Speed	3 m/s
Max Service Ceiling Above Sea Level	6000 m
GPS Mode	GPS/GLONASS
Battery Voltage	15.2 V
Battery Type	LiPo 4S
Max Charging Power	100 W
Lens FOV	94°
Aperture	f/2.8
Shutter Speed	8s -1/8000s
Max Image Resolution	4000 x 3000
Max Bitrate	40 Mbps
Max Speed	16 m/s (ATTI mode, no wind)
Video Resolution	2.7K: 2704x1520p 24/25/30 (29.97); FHD: 1920x1080p 24/25/30/48/50/60
Operating Temperature	0°C to 40°C
Transmitter Power (EIRP)	20 dBm (FCC), 14 dBm (CE)
Video Recording Modes	2.7K, FHD
Camera Sensor	1/2.3" CMOS
ISO Range	100-3200 (video), 100-1600 (photo)
Photo Formats	JPEG, DNG
Video Formats	MP4/MOV (H.264)
Remote Controller Operating Frequency	2.4 GHz
Mobile Device Holder	For mobile phones or tablets
Hover Accuracy Range	Vertical: +/- 0.5 m; Horizontal: +/- 1.5 m
