Flight Status Indicator

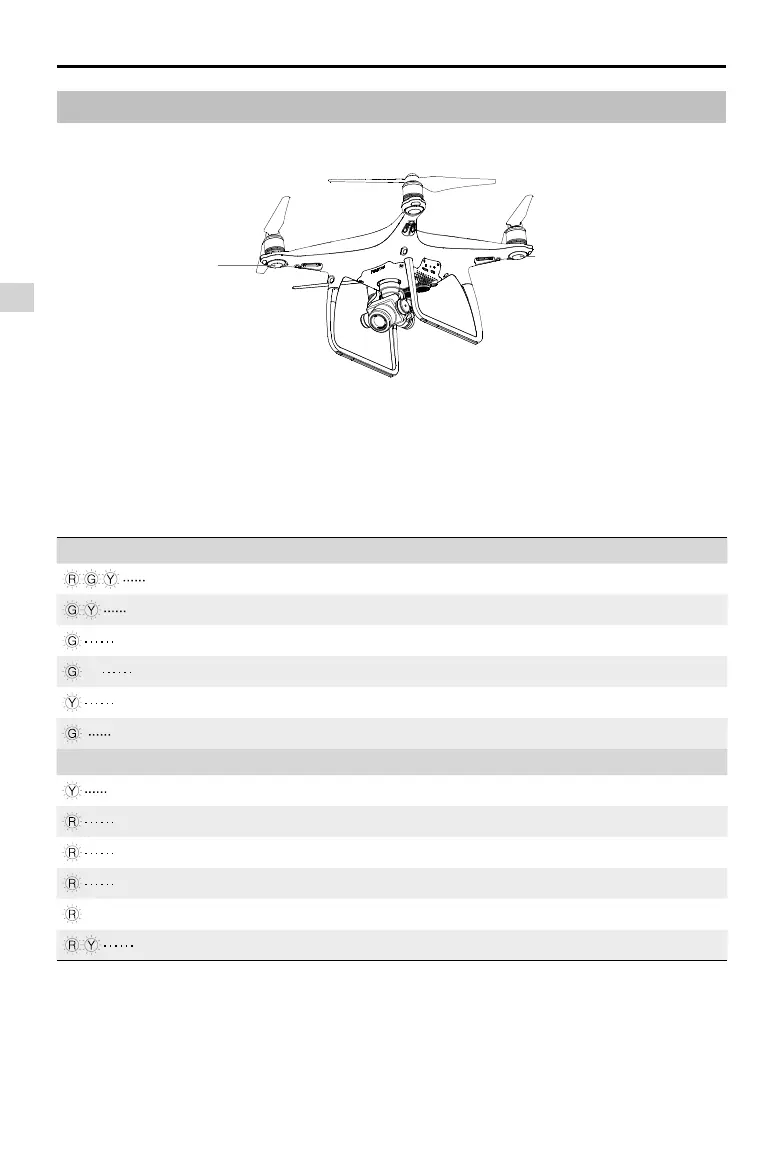

The Phantom 4 Advanced / Advanced+ has Front LEDs and Aircraft Status Indicators. The positions of
these LEDs are shown in the gure below:
The Front LEDs show the orientation of the aircraft. The Front LEDs glow solid red when the aircraft is
turned on to indicate the front (or nose) of the aircraft. The Aircraft Status Indicators communicate the
system status of the ight controller. Refer to the table below for more information about the Aircraft Status
Indicators.
Front LED
Aircraft Status Indicator
Aircraft Status Indicator Description
Normal
Alternate red, green and yellow ashing Turning On and Self Diagnostic Testing
Alternate green and yellow ashing Warming Up
Slow green ashing P-mode with GPS
×2 Two green ashes P-mode with Vision System
Slow yellow ashing A-mode but No GPS or Vision System
Fast green ashing Braking
Warning
Fast yellow ashing Remote Controller Signal Lost
Slow red ashing Low Battery Warning
Fast red ashing Critical Battery Warning
Red ashing IMU Error
— Solid Red Critical Error
Alternate red and yellow ashing Compass Calibration Required

dji PHANTOM 4 ADVANCED Specifications

General

Camera Sensor	1-inch CMOS
Effective Pixels	20 MP
Max Flight Time	30 minutes
Weight	1388 g
Max Ascent Speed	6 m/s (Sport mode)
Max Descent Speed	4 m/s (Sport mode)
GPS Mode	GPS/GLONASS
Video Storage Bitrate	100 Mbps
Photo Format	JPEG, DNG (RAW)
Battery Capacity	5870 mAh
Battery Voltage	15.2 V
Battery Type	LiPo 4S
Battery Energy	89.2 Wh
Gimbal	3-axis (pitch, roll, yaw)
Max Speed	72 kph (Sport mode)
Transmission Range	7 km
Operating Temperature Range	0° to 40°C (32° to 104°F)
Lens	24mm f/2.8
Supported File Systems	FAT32/exFAT
Video Format	MP4/MOV (H.264/MPEG-4 AVC)
Remote Controller Operating Frequency	2.400 GHz to 2.483 GHz, 5.725 GHz to 5.825 GHz
Remote Controller Max Transmission Distance	7 km
Video Resolution	4K 60fps
