Planning an Autonomous Mission

Once it says “Ready to Go(good)” Click Start, and the drone

will automatically Take off, Fly the Mission, Return and

then Land.

To access the parameters, click on the mission icon

Recommended Flight Paramters:

1. Camera Type: Select Drone Type

2. Hatch Angle: Boundary Dependent(See next Picture)

3. Flight altitude: 80m -120m Crop age dependent

4. Overlap: 70%

5. Sidelap: 75%

6. Flight Speed: 9m/s - 12m/s Height dependent

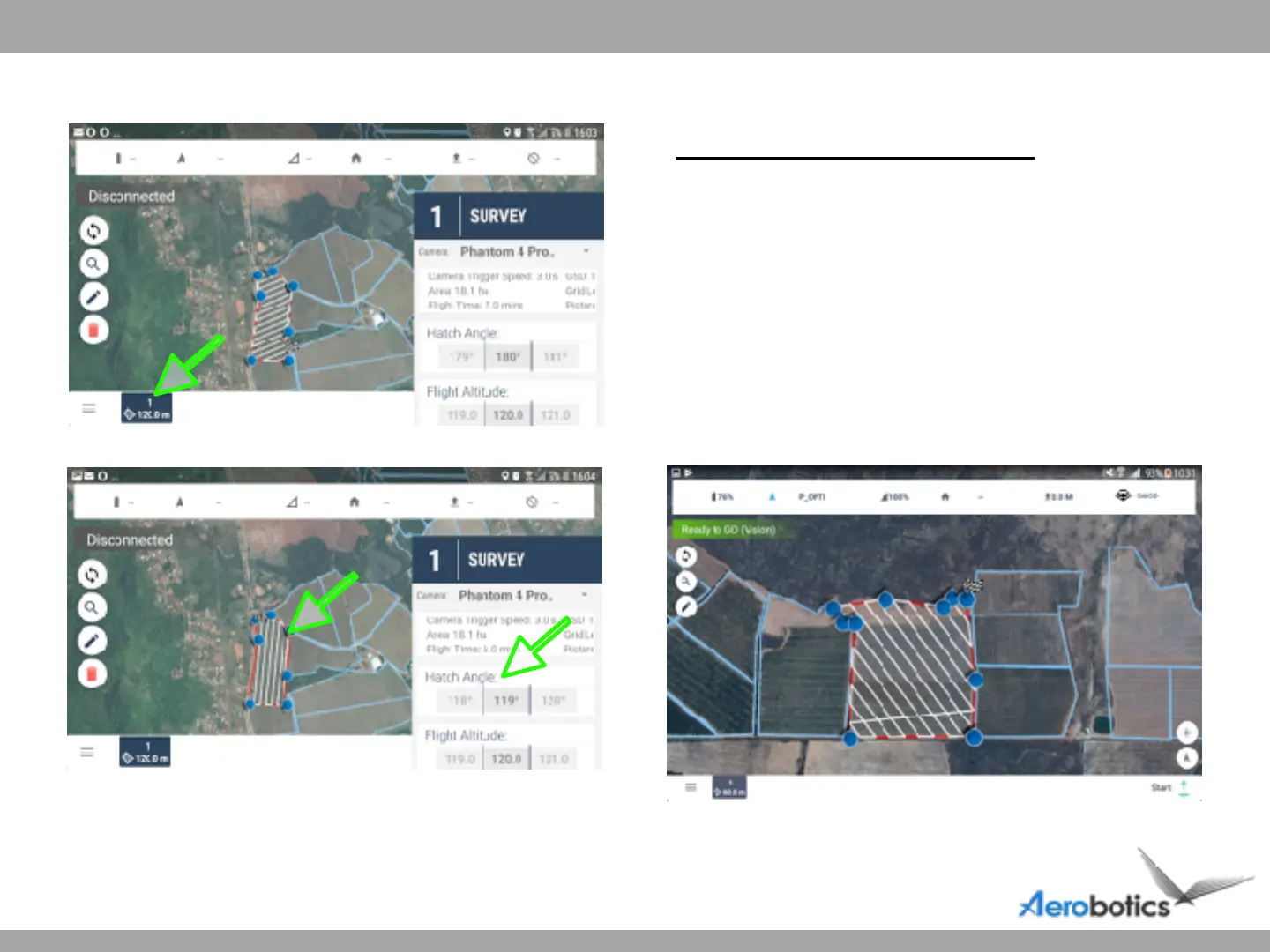

Hatch Angle is dependent to the Boundary. Adjust the hatch

until the flight path is parallel to the longest sides of the

boundary.

Other manuals for dji PHANTOM 4

Questions and Answers:

Need help?

Do you have a question about the dji PHANTOM 4 and is the answer not in the manual?

General

Product color	White
Frequency band	2.4 - 2.483 GHz
GPS (satellite)	Yes
Number of rotors	4 rotors
Maximum weight capacity	- kg
Maximum operating distance	5000 m
Number of propeller blades	2
Moving control functions	Downward, Forward, Turn left, Turn right, Upward
Cables included	USB
Memory card included	MicroSD
Megapixel	12 MP
Video resolutions	1280 x 720, 1920 x 1080, 2704 x 1520, 3840 x 2160, 4096 x 2160 pixels
Maximum frame rate	60 fps
Supported video modes	720p, 1080p
Maximum video resolution	4096 x 2160 pixels
Compatible memory cards	MicroSD (TransFlash)
Battery voltage	7.4 V
Battery capacity	6000 mAh
