dji RoboMaster EP - Page 126

125

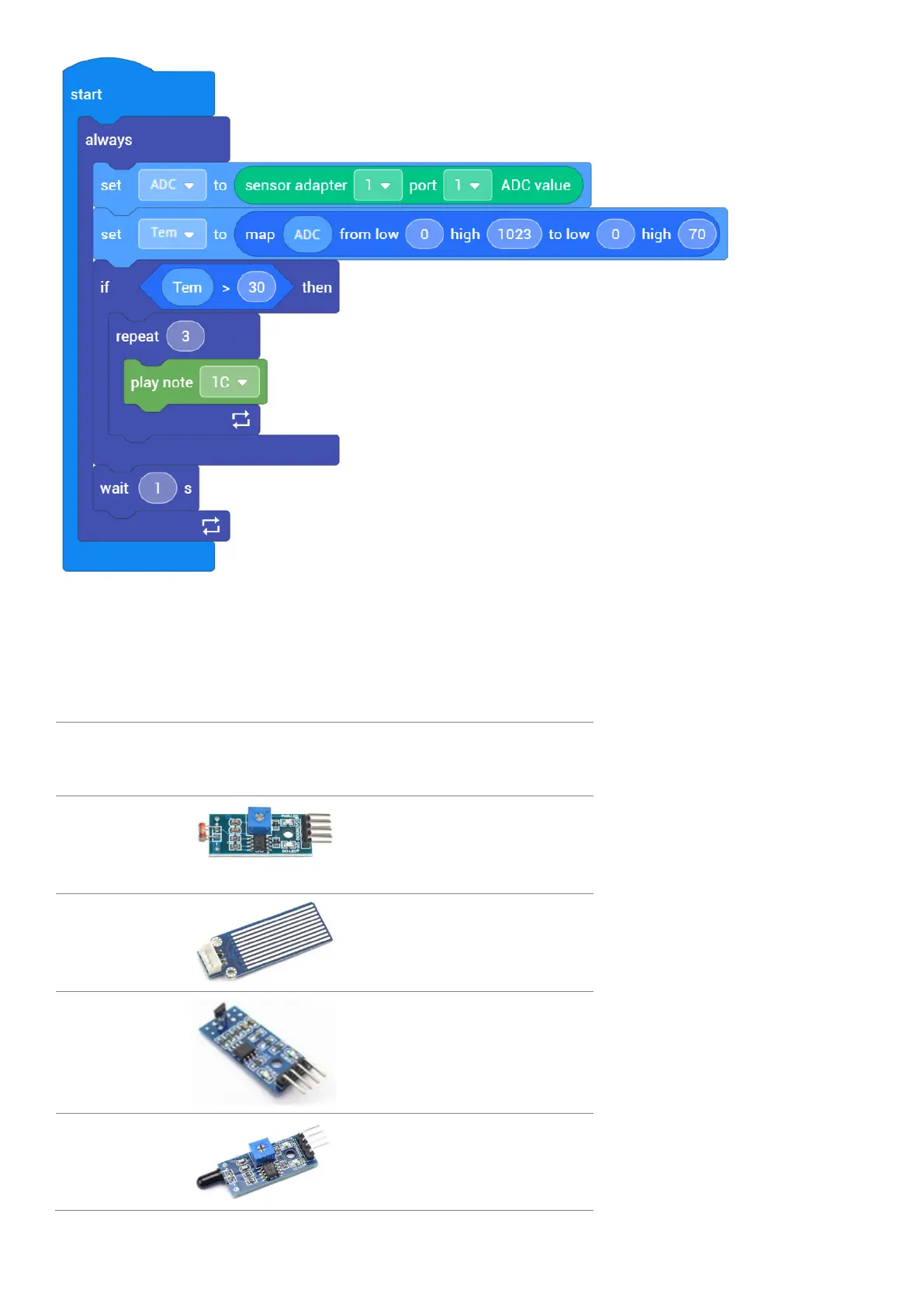

Note:
1) The sensor adaptor ADC is a 10-bit ADC which can take data of up to 1024 unique values, so the ADC range
is from 0 to 1023.
2) ADC collects the analog voltage value. Devices such as pressure sensors, potentiometers, and others have
ADC output.
Trigger+ADC
Photo resistor
sensor
module
VCC(5V)
GND
OUT(TTL)
OUT(AD)
High or low
electrical level
+ADC
Water level
sensor
VCC(5V)
GND
OUT(AD)
ADC
Hall sensor
VCC(5V)
GND
OUT(AD)
OUT(TTL)
High or low
electrical level
+ADC
Flame sensor
module
VCC(5V)
GND
OUT(AD)
OUT(TTL)
High or low
electrical level
+ADC
