3

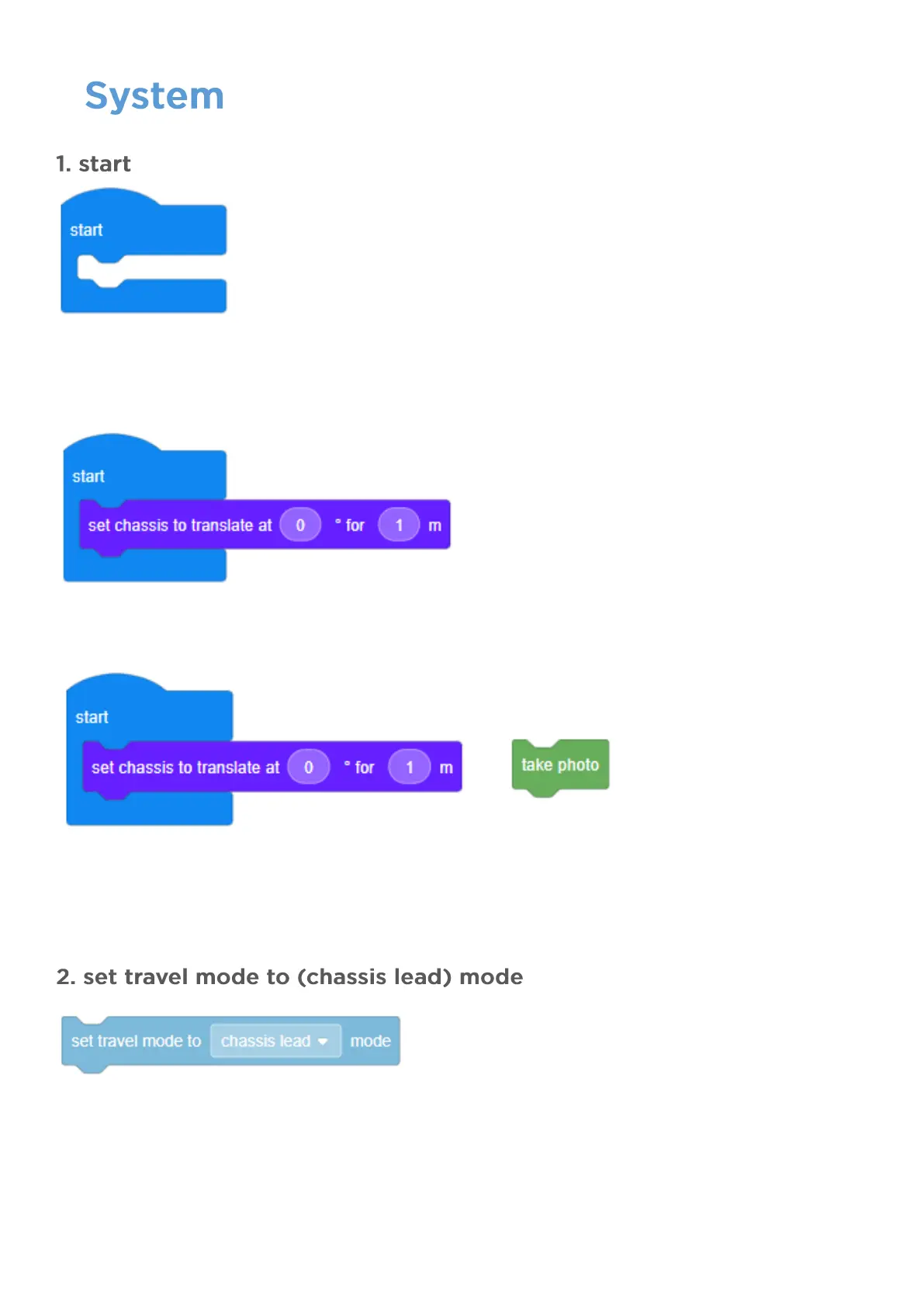

(1) Objective: Sets the first program executed when the robot powers on
(2) Type: Embedded block
(3) Example: Move forward 1 meter
This will control the EP to move forward by 1 meter.
Note:
If blocks (other than event triggering blocks and function blocks) are not placed within the “Start” area, they
will not be executed. For example, in the program shown below, the EP will not be able to take a photo.
Python API
Function: start()
Type: Main function
(1) Objective: Sets the travel mode
Chassis Lead Mode: The gimbal follows the chassis to rotate along the yaw axis.
Gimbal Lead Mode: The chassis follows the gimbal to rotate along the yaw axis.
Free Mode: The gimbal and the chassis move without affecting each other.
