Note:
1) The servo supports two kinds of control: angle control and speed control. This module is applicable to
situations with a high requirement for the rotation angle control of the servo.
2) When the servo is installed on the robotic arm, using servo-related modules in the "extension modules"
to control the servo is not supported.

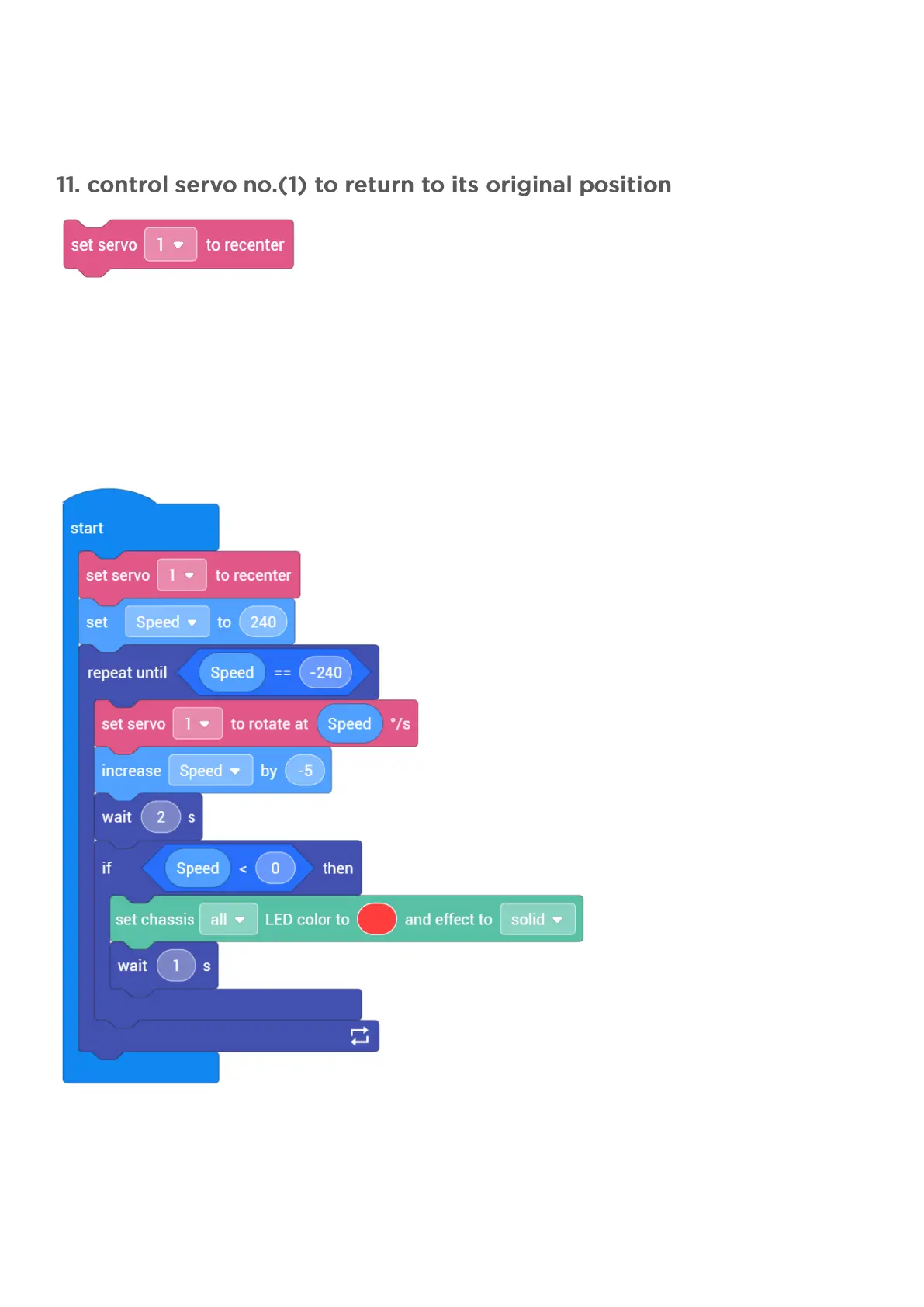

(1) Description: Control a specified servo (No.) to return to its original position.
(2) Type: Execution
(3) Example: Check servo performance
To check the performance of servo No.(1), control the servo to perform a clockwise rotation at the maximum
speed, gradually decelerating to a stop, then control it to rotate counterclockwise, continuously accelerating.
When the servo rotation direction is switched from clockwise to counterclockwise, the chassis LED indicator
is a solid red.
