dji S800 User Manual

©2012 DJI Innovations. All Rights Reserved. 5

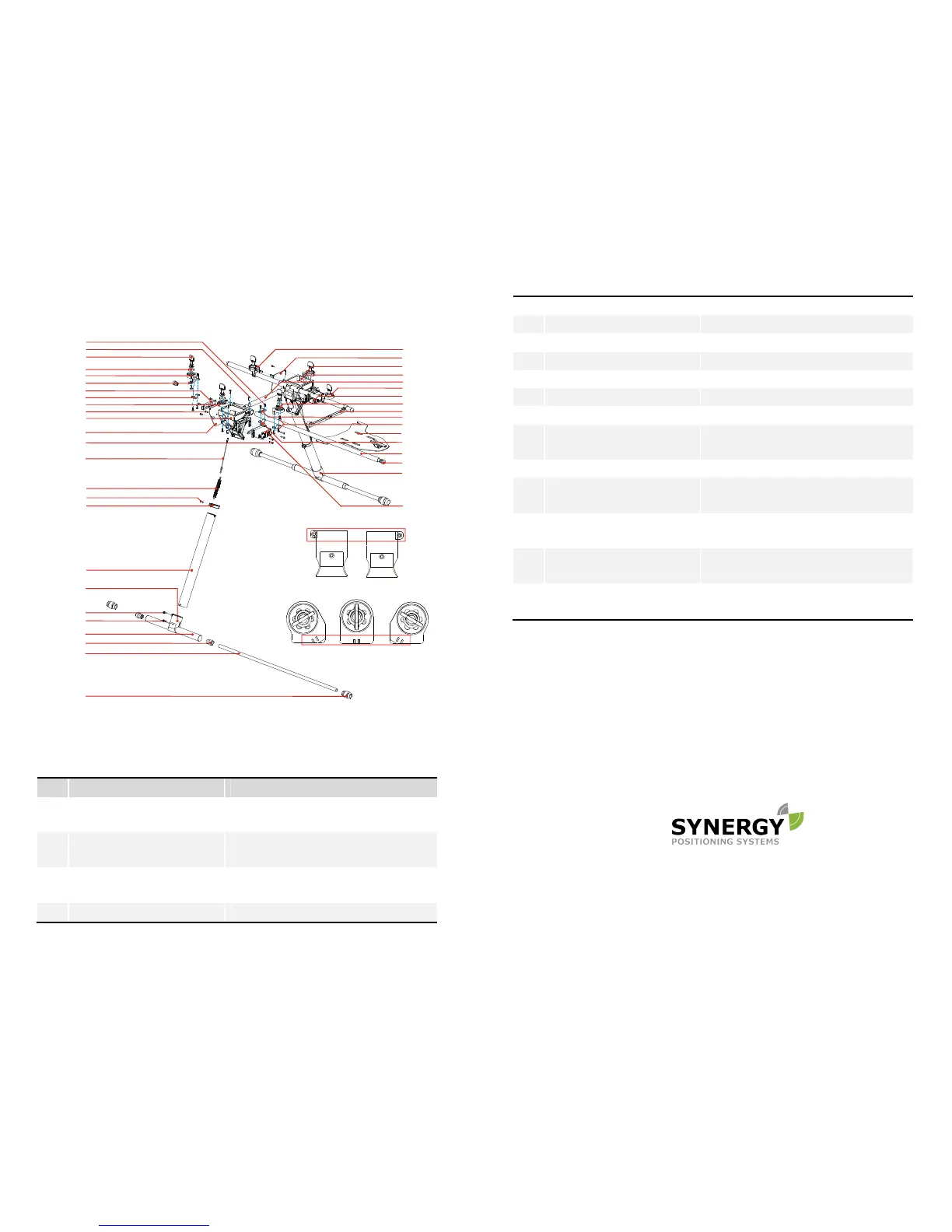

Spare Parts List
S8033401
S8033501
S8033701
S8033801
S8031601
S8032001
S8031604
S8034501
S8034601
S8034801
S8034901
S8035001
S8035002
S8035101
S8035201
S8035301
S8031501
S8031502
S803 0515
S803 0315
S803 0415
S803 0615
S8031507
S8031506
S8031507
S8032201
S8032202
S8032204
S8032203
S8031505
S8031506
S8031505 S8031507
(2)
S8031603
S8031604
(1)
HC _ M2 5x10 .
M3 0x6 7x1 3x1 ...
M2 5x5x1 3x1 ..
HC M2 5x8 _.
HC M3 0x22 _.
M3 0x6 7x1 3x1 ...
HC M3 0x8 _.
M
2
5x5x
13
x
1
..
S8031602
S8031603
S8031801
S8031901
Note: (1) Left and right T-Frame are different; (2) Left set, middle set and right set of carbon tube bracket are
different.
NO. Name Components
34 Retractable Module(Left)
S8033401、S8033801、M2.5X5X1.3X1、
M3.0X6.7X1.3X1
35 Retractable Module(Right)
S8033501、S8033801、M2.5X5X1.3X1、
M3.0X6.7X1.3X1
39 Screw Package
HC_M3X8、HC_M2.5X8、HC_M3X22、HC_M2.5X5、
M2.5X5 X1.3X1、M3.0X6.7X1.3X1、M2.5X8
51 HITEC Servo(Left)
S8035101、HC_M2.5X10
©2012 DJI Innovations. All Rights Reserved. 6
53 HITEC Servo(Right)
S8035301、HC_M2.5X10
56 Spring
S8033701、S8033801、S8034501、M3.0X6.7X1.3X1
57 Control Board Module
S8034801、S8034901、S8035201、M2.5X5X1.3X1
58 H Frame
S8034601、S8035001、M3.0X6.7X1.3X1
16 T-Frame(Right)
S8031601、S8031602、S8031603
17 T-Frame(Left)
S8031601、S8031602、S8031604
18 T-Frame Nonslip Damper (4pcs) S8031801
19
T-Frame Silicone Rubber Damper
(4pcs)
S8031901
20 Bi-pod Carbon Tube S8032001
22 Battery Tray
S8032201、S8032202、S8032203、S8032204、
M2.5X5X1.3X1
23 Carbon Tube Bracket(Left Set)
S8031501、S8031502、S8031503、S8031504、
S8031505、HC_M3X8
24 Carbon Tube Bracket(Middle Set)
S8031501、S8031502、S8031503、S8031504、
S8031506、HC_M3X8
25 Carbon Tube Bracket(Right Set)
S8031501、S8031502、S8031503、S8031504、
S8031507、HC_M3X8
Note: The parts from 16 to 20 and 22 to 25 are the same as the product of S800.
