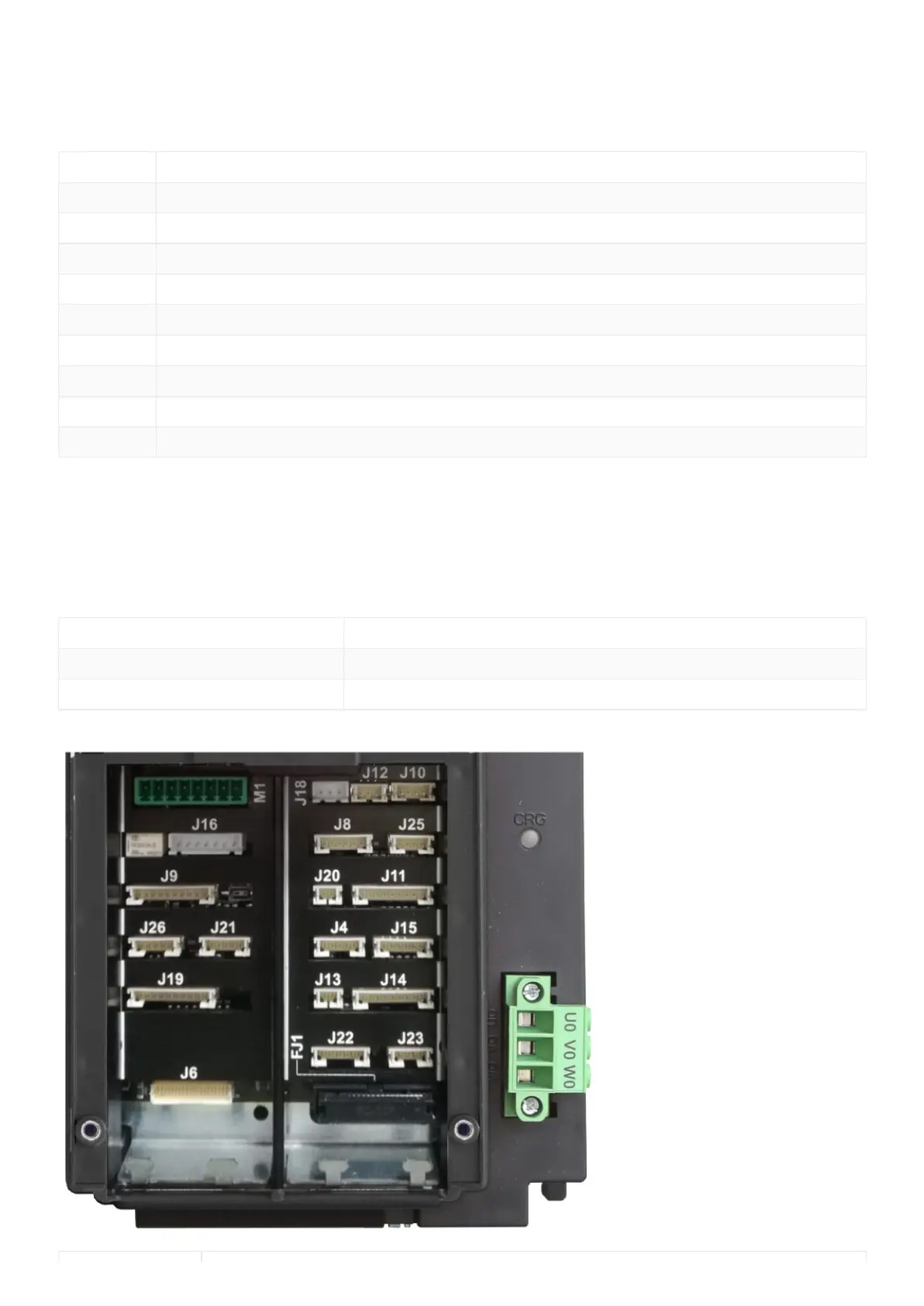

LED2: (Green led) CAN Cabine termination active: led switch off when an optional board (PIT8 / 16IO / 16RL) is connected
inside controller (termination automatically moves on last optional board).
LED3: (RGB led) color of this led gives info on the internal status of lift according following table:
Color Status
Led off The system is performing the reset procedure
Green The system is in normal operation mode
Yellow The system is in inspection mode
Pink The system is in temporary operations mode
Purple The system is out of service (parking of cabin)
Cyan The system is running in priority mode (LOP / CAR)
Red The system is operating in Fire-fighters mode
White The system is performing the emergency procedure
Blue The system is performing the elevator car drift control procedure
LED4: (Yellow led) led blinks when board is running.
LED5: (Green led) led on gives the status of SE5 safety chain
LED6: (Red led):
