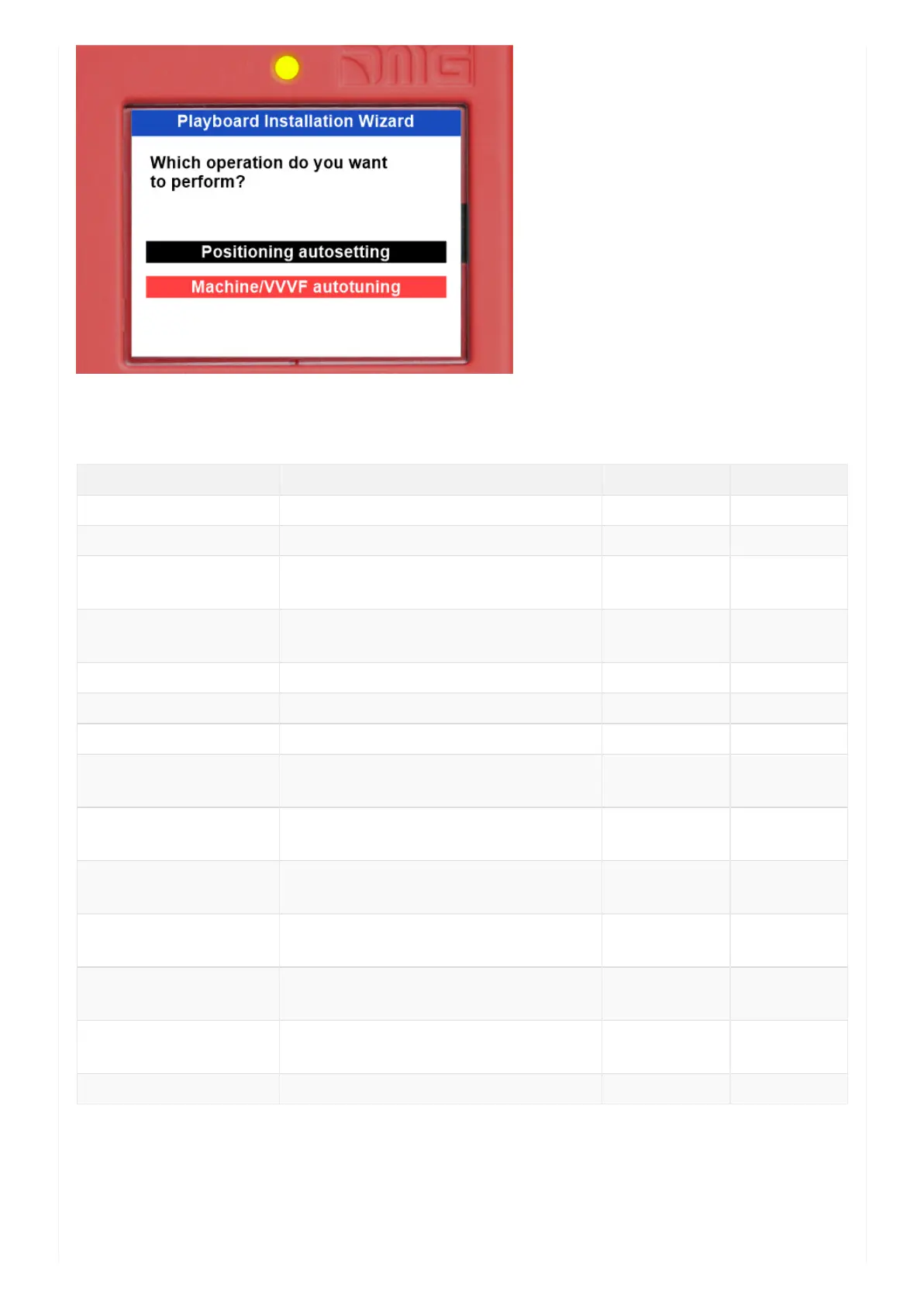

Insert the requested parameter and move on to the next one by pressing the Right Arrow.
The list of VVVF Parameter is:
Parameter Description Gearless Motor Geared Motor
P01 - Motor Poles Insert Motor Pole's number X X
F03 – Maximum Speed Insert max motor Speed [RPM] (Motor Plate) X X
F04 – Rated Current
Insert Rated motor speed [Hz]
(Motor Plate)
X X
F05 – Rated Voltage
Insert Rated motor voltage [V]
(Motor Plate)
X X
P08 – M-%X Insert value 10 % X
P07 – M-%R1 Insert value 5 % X
P06 – M-No Load Curr. Insert value 0 [A] X
P03 – Motor Rated Current
Insert rated current [A]
(Motor Plate)
X
P02 – Motor Rated Cap
Insert rated power [kW]
(Motor Plate)
X
C11 – High Speed
Insert high speed [Hz]
(Motor Plate)
X
C10 – Middle Speed
Insert middle speed [Hz]
(Inspection speed)
X
C07 – Creep Speed
Insert low speed [Hz]
(10% of C11)
X
L01 – PG select
Set motor Encoder type:
(VVVF Optional Boards)
X X (*)
L02 – PG resolution Insert Motor Encoder Resolution X X (*)
(*) Closed loop only
Last parameter is different according Motor Type:
GEARLESS motor:
