User Manual C-6000i Computerized Jigging Reel
6
INSTALLATION
Mounting the Reel
The foot of the reel fits into a regular one inch metal pipe (external foot
measurement is 26.67 mm). The pipe should preferably be made of stainless

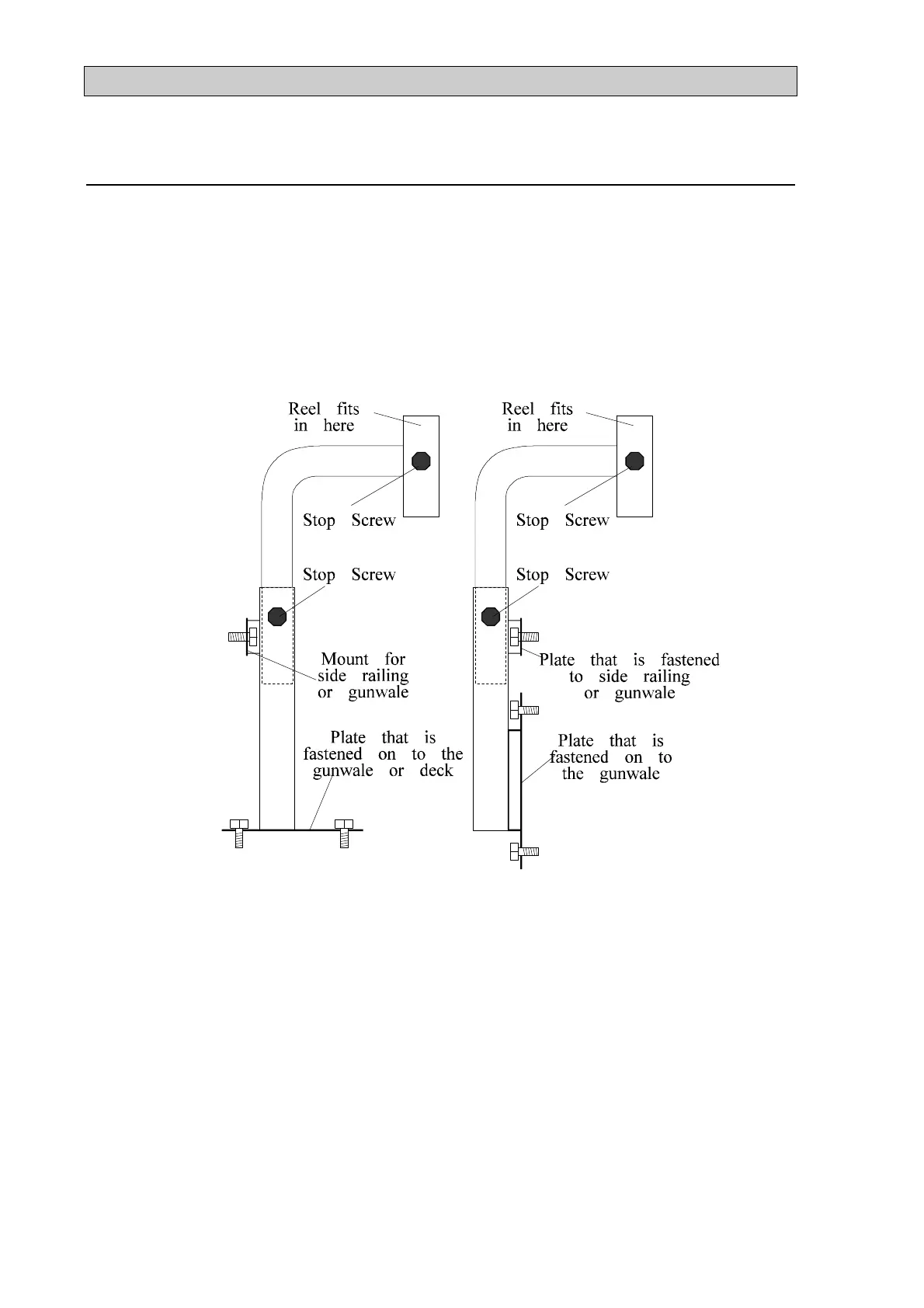

steel. The pipe must be firmly bolted on to the gunwale. Figure 2 shows a
drawing proposing two different ways of mounting.
Figure 2
Electricity
The power cable should be of suitable length. The cable has four wires, two
4mm
2
power wires and two 0.75mm
2
communication wires. The power wires
are red and black. The red wire is the plus or positive and the black wire is
the minus or negative. The machine should be connected to connection box
supplied by DNG or distributors. The connection box should contain a two
pole circuit breaker (fuse) for each machine as well as an overload voltage
protection unit (both supplied by DNG). The circuit breaker should be of the
type B10 (10A, fast).
