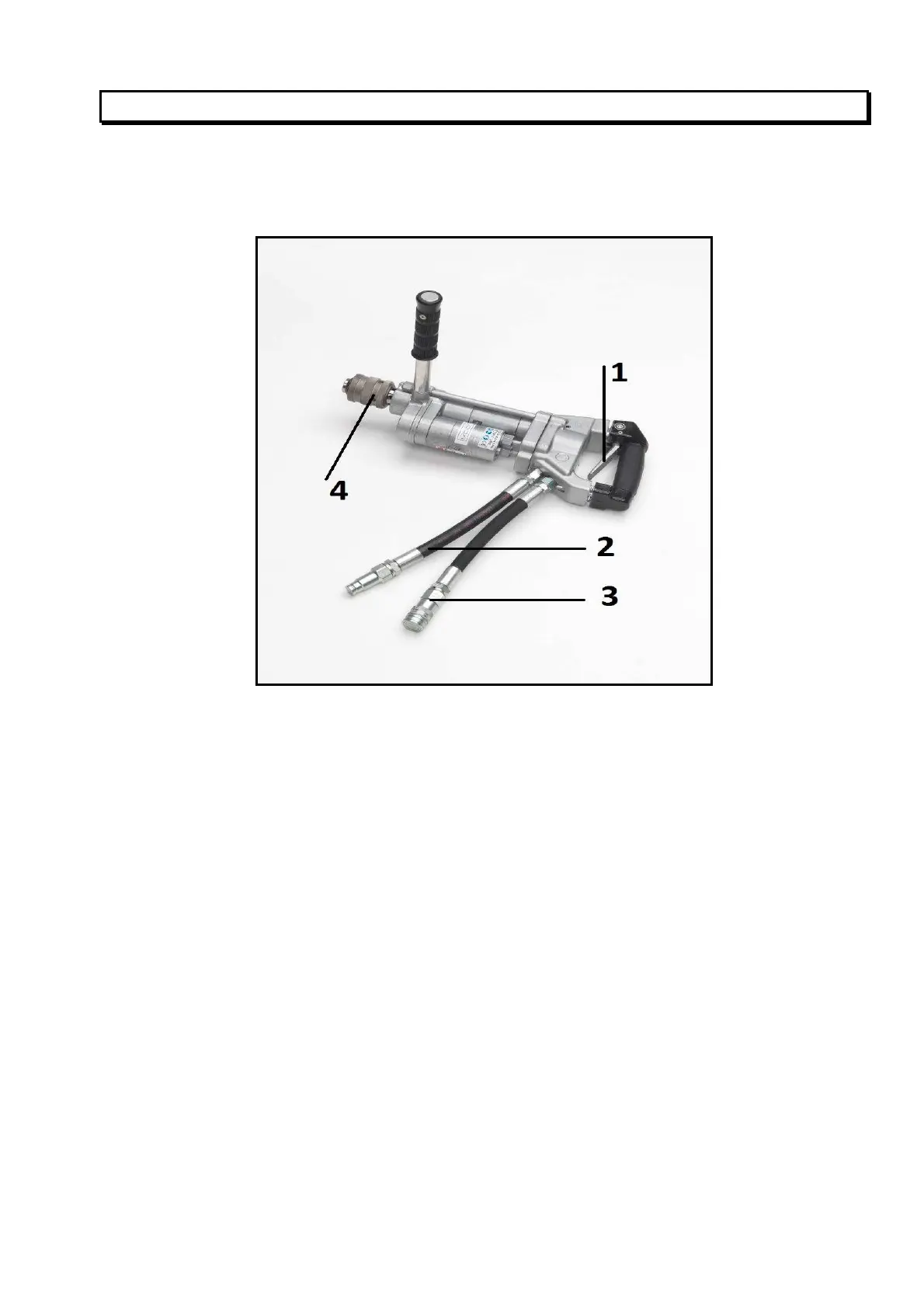

GENERAL VIEW – MAIN COMPONENTS AND THEIR FUNCTIONS
1.
TRIGGER – is the ON/OFF control of the tool, it has a device that prevents accidental tool starting , it
can be pressed with minimal effort to guarantee operator comfort also in long cutting operations
2.
RETURN HOSE – T it is the tube where oil get out/exit the tool and go back to tank
3.
OIL PRESSURE HOSE – P it is the tube where oil enter in pressure in the tool
4.
SDS MAX QUICK CHUCK STANDARD
