Controls in detail
Driving systems
3
The warning displays for the rear left and
right-hand sides are in the exterior mirror
concerned.

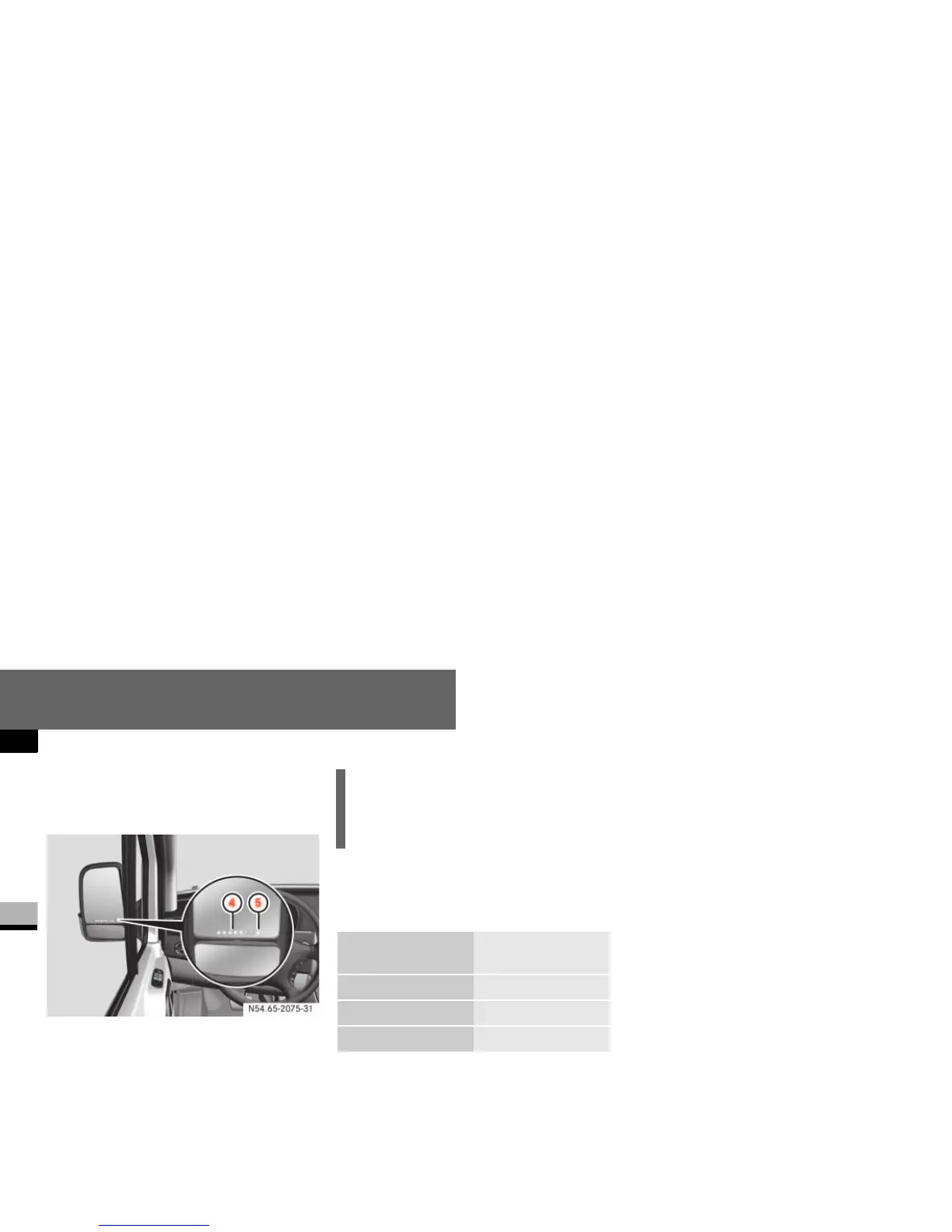

Warning display in the left-hand exterior
mirror for the area to the rear left-hand side
4 Left-hand side of vehicle
5 Indicator segments
The warning display is divided into 5 yellow
and 2 red segments for each side of the ve-
hicle. Parktronic is operational if yellow in-
dicator segments 3 and 5 light up.
The selector lever position determines
whether the front and/or rear area is mon-
itored.
One or more segments light up as the vehi-
cle approaches an obstacle, depending on
the vehicle’s distance from the obstacle.
From the:
sixth segment, an intermittent warning
tone sounds for approximately
2seconds
seventh segment, a continuous warn-
ing tone sounds. You have reached the
minimum distance.
Roll-back warning
Parktronic automatically begins to monitor
the area behind the vehicle if the vehicle
begins to roll backwards without reverse
gear engaged, e.g. after stopping on an up-
hill gradient.
If Parktronic detects an obstacle no more
than 31 in (80 cm) away,
all the segments of the warning dis-
plays light up
a continuous warning tone sounds as
the vehicle approaches the obstacle
and for a further 2 seconds after the ve-
hicle has come to a halt
N54.65-2075-31
!CAUTION
There is a malfunction if only the red
segments of the warning display light
up ( page 262).
Transmission
position
Monitoring
D Front area
R or N Front and rear area
P No areas activated
