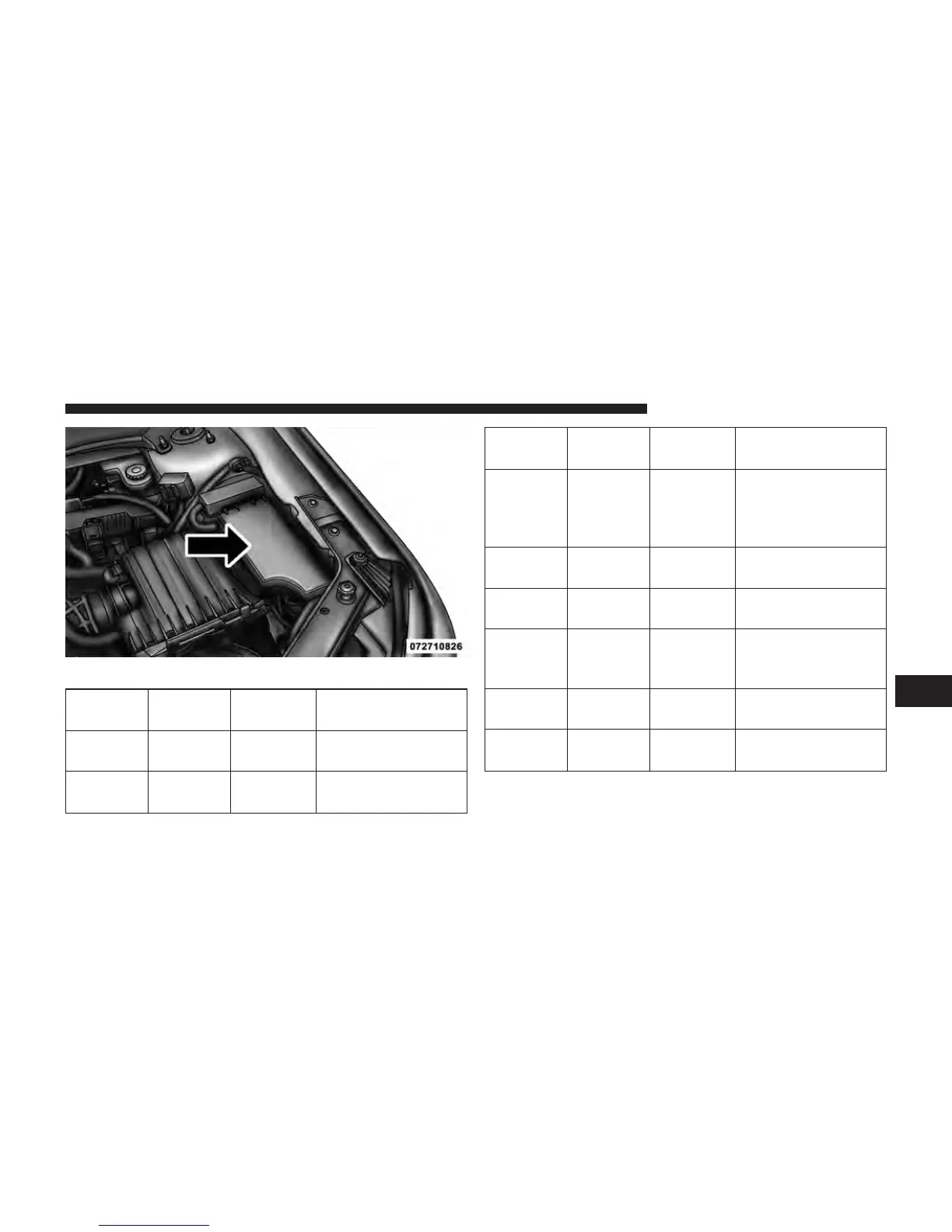

Dodge Avenger 2011 - Page 425

Cavity
Cartridge
Fuse
Mini Fuse Description
1
40 Amp
Green
—
Power Top Module
– If Equipped
2—
20 Amp
Yellow
AWD Module
Cavity
Cartridge
Fuse
Mini Fuse Description
3—
10 Amp
Red
Center High
Mounted Stop
Light (CHMSL)/
Brake Switch
4—
10 Amp
Red
Ignition Switch
5—
20 Amp
Yellow
Trailer Tow – If
Equipped
6—
10 Amp
Red
Power Mirror
Switch/Climate
Controls
7—
30 Amp
Green
Ignition Off Draw
(IOD) Sense 1
8—
30 Amp
Green
Ignition Off Draw
(IOD) Sense 2
Totally Integrated Power Module
7
