LIGHT BULBS – Exterior Bulb No.
Low Beam Headlamp.....................9006
High Beam Headlamp ....................9005
Front Park/Turn Signal Lamp.............. 3457A
Front Fog Lamp ......................... H11
Front Side Marker Lamp .................WY5W
Center High Mounted Stop (CHMSL) Lamp ..... LED
(Serviced at Authorized Dealer)
Rear Tail/Stop/Turn Signal Lamp ............LED
(Serviced at Authorized Dealer)
Backup Lamp ...........................921
License Lamp.......................... W5W
BULB REPLACEMENT
Headlamp

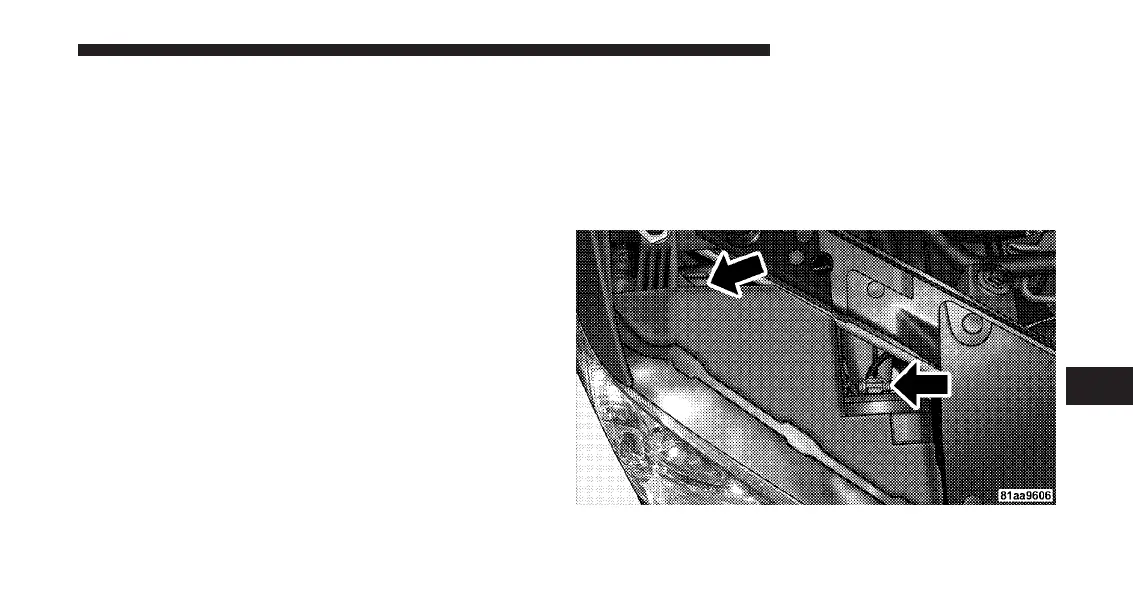

1. Raise the hood and locate the connector behind the
headlamp.
NOTE: It may be necessary to remove the air cleaner
filter housing and position the totally integrated power
module aside prior to replacing the low beam headlamp
on the driver’s side of the vehicle.
2. Reach into engine compartment and from behind the
lamp assembly and grasp the connector.
7
MAINTAINING YOUR VEHICLE 459
