5. Remove the filter cover by disengaging the
retaining tab and mid way snap that secures
the filter cover to the HVAC housing. Disen-
gage the mid way snap by pulling the door
outward. Unhinge the filter cover on the right
side to fully remove the cover.
6. Remove the A/C air filter by pulling it straight
out of the housing.
7. Install the A/C air filter with the arrow on the
filter pointing toward the floor. When install-
ing the filter cover, make sure the retaining
tabs fully engage the cover.
CAUTION!
The cabin air filter is identified with an arrow
to indicate airflow direction through the filter.
Failure to properly install the filter will result in
the need to replace it more often.
8. Reinstall the glove compartment door on the
glove compartment door hinge and reattach
the tension tether by inserting the tether clip
in the glove compartment and sliding the clip
away from the face of the glove compartment
door.
9. Push the door to the near closed position to
reengage the glove compartment travel
stops.
NOTE:
Ensure the glove compartment door hinges and
glove compartment travel stops are fully en-
gaged.
Accessory Drive Belt Inspection
WARNING!
• Do not attempt to inspect an accessory
drive belt with vehicle running.
• When working near the radiator cooling
fan, disconnect the fan motor lead. The fan
is temperature controlled and can start at
any time regardless of ignition mode. You
could be injured by the moving fan blades.
• You can be badly injured working on or
around a motor vehicle. Only do service
work for which you have the knowledge
and the proper equipment. If you have any
doubt about your ability to perform a ser-
vice job, take your vehicle to a competent
mechanic.

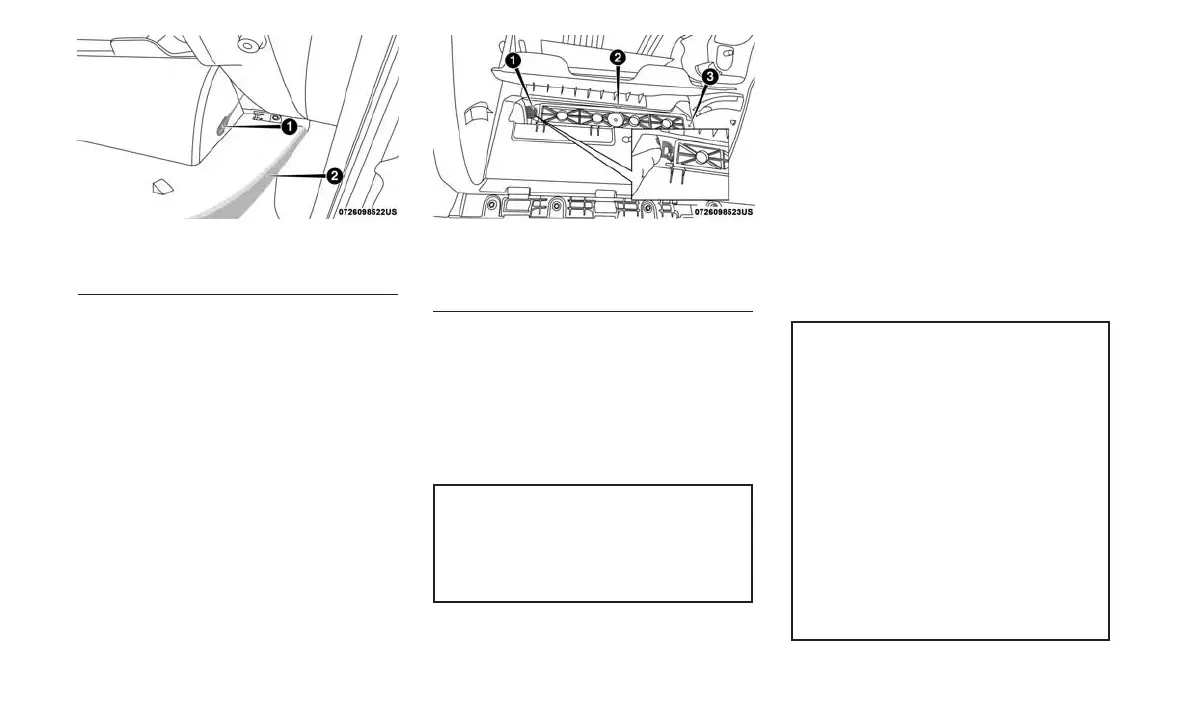

Right Side Of Glove Compartment
1 — Glove Compartment Tension Tether
2 — Glove Compartment Door
A/C Air Filter Cover
1 — Retaining Tab
2 — Mid Way Snap
3 — Filter Cover Hinge
232
