The following describes each feature and its
operation:
Home
When Home is selected, a series of widgets
(gauges) can be customized by the user. Follow
these steps to change a widget:
1. Pressing any of the gauges allows you to
switch the display.
2. Select the following option from the menu:
• Set Widget: Top Left
• Set Widget: Top Right
• Set Widget: Bottom Left
• Set Widget: Bottom Right
3. After selecting a Widget location: select the
gauge or timer to display:
• Gauge: Oil Temp
• Gauge: Oil Pressure
• Gauge: Coolant Temp
• Gauge: Battery Voltage
• Gauge: Trans Temp
• Gauge: Intake Air Temp
• Gauge: Engine Torque
• Gauge: Engine Power
• Gauge: G-Force
• Gauge: Steering Angle
• Gauge: Current Gear
• Gauge: Current Speed
• Timer: 0–60 MPH
• Timer: 0–100 MPH
• Timer: 1/8 Mile
• Timer: 1/4 Mile
• Timer: Brake Distance
• Timer: Reaction Time
NOTE:
Pressing the “Camera” icon in the upper right
corner of the Performance Pages screen will
take a screenshot of the current screen and
save it to a USB that is connected.
Timers
When the Timers Page is selected, you will be
able to select from following “Tickets”:
• Recent
Pressing the “Recent” button displays a “real
time” summary of performance timers.
• Last
Pressing the “Last” button displays the last
recorded run of performance timers.
• Best
Pressing the “Best” button displays the best
recorded run of performance timers, except for
braking data.

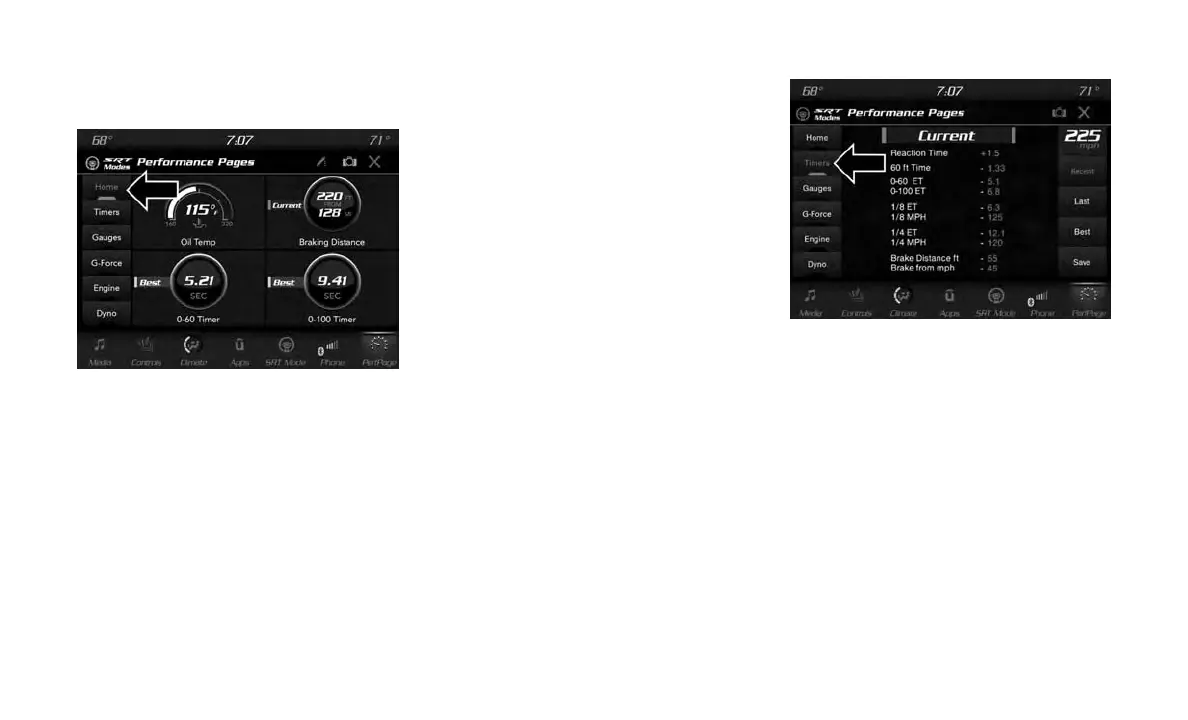

Performance Pages — Home
Performance Pages — Timers
280
