BODY LUBRICATION
2-1
BODY LUBRICATION
INDEX
Page
Body Maintenance 1
Deck Lid Hinges 3
Deck Lid Latch 3
Door Hinges 1
Door Locks and Linkage 2
Door Lock Ratchet and Striker 2
Door Remote Links 2
BODY MAINTENANCE
Body and other operating mechanisms should be
inspected, and relubricated as needed. This is neces-
sary to maintain ease of operation and to provide
protection against rust and wear.
Prior to applying any lubricant, wipe the parts
clean to remove dust and grit. After lubricating parts,
remove excess oil or lubricant.
Relubricate mechanisms as outlined in the follow-
ing paragraphs. Where Lubr¡pla†e is specified, use a
smooth,
white body hardware lubricant conforming
to NLGI grade 1. Chrysler Parts Lubripla†e, Part
Number 1064768 or equivalent, is a suitable lubricant.
Where Door Ease Lubricant is specified, use a stain-
less wax type lubricant such as Chrysler Parts Door
Ease,
Part Number 774512 or equivalent.
HOOD LOCK, RELEASE MECHANISM AND
SAFETY CATCH
Lubrication of the hood latch release mechanisms
and safety catch is of vital importance and should
be inspected, cleaned and lubricated every 6 months
SLIDING
CONTACT
AREAS
RELEASE LEVER
SLIDING
ONTACT
PIVOT AREA
PIVOT AREA
SAFETY CATCH
LOCK
Page
Fuel Tank Access Door Hinge 5
Hood Hinges 1
Hood Lock and Safety Catch 1
Lock Cylinders 2
Tail Gate Door 4
Tail Gate Wiper Linkage 5
Window Regulators 2
to assure ease of operation and freedom from binding.
All Models
Apply Multi-Purpose Lubricant NLGI grade 2
EP,
such as Multi-Mileage Lubricant, Part Number
2525035 or equivalent, sparingly to all sliding con-
tact areas of latch and release lever, and ends of
hood lock release links, if so equipped. (Figs. 1, 2, 3
and 4).
Work lubricant into the lock mechanism until all
frictional surfaces are covered. Also apply a film of
the same lubricant to the pivot contact areas of the
safety catch (Figs. 1, 2, 3 and 4).
Hood
Hinges
(All Models)
Apply engine oil to all link or hinge pivots and
Lubriplate or equivalent, to gear teeth and sliding
contact areas (Figs. 5 and 6).
Door
Hinges
(All Models)
On all hinges, apply engine oil to hinge pin ends
(Figs.
7, 8 and 9).
On lower hinges, in addition, apply engine oil to
spring ends and contact areas.
CAUTION:
Avoid lubricant on roller surfaces of
hinge arm and roller on front and rear door lower
hinges.
PIVOT AREA
STRIKER
PY819
SLIDING CONTACT
AREAS
HOOD LOCK
SUPPORT
PY816

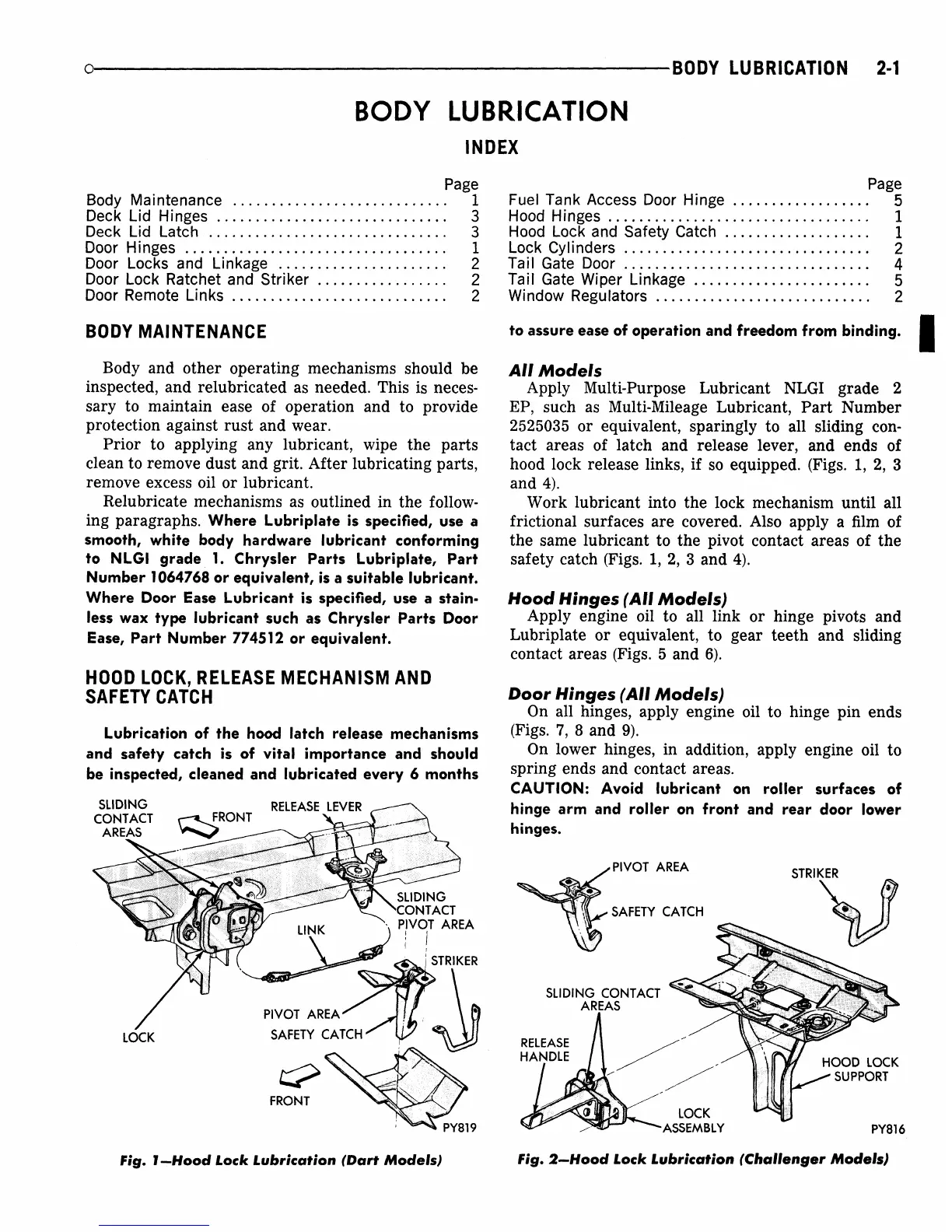

Fig.
I-Hood
Lock Lubrication (Dart Models)
Fig. 2-Hood
Lock
Lubrication (Challenger Models)
