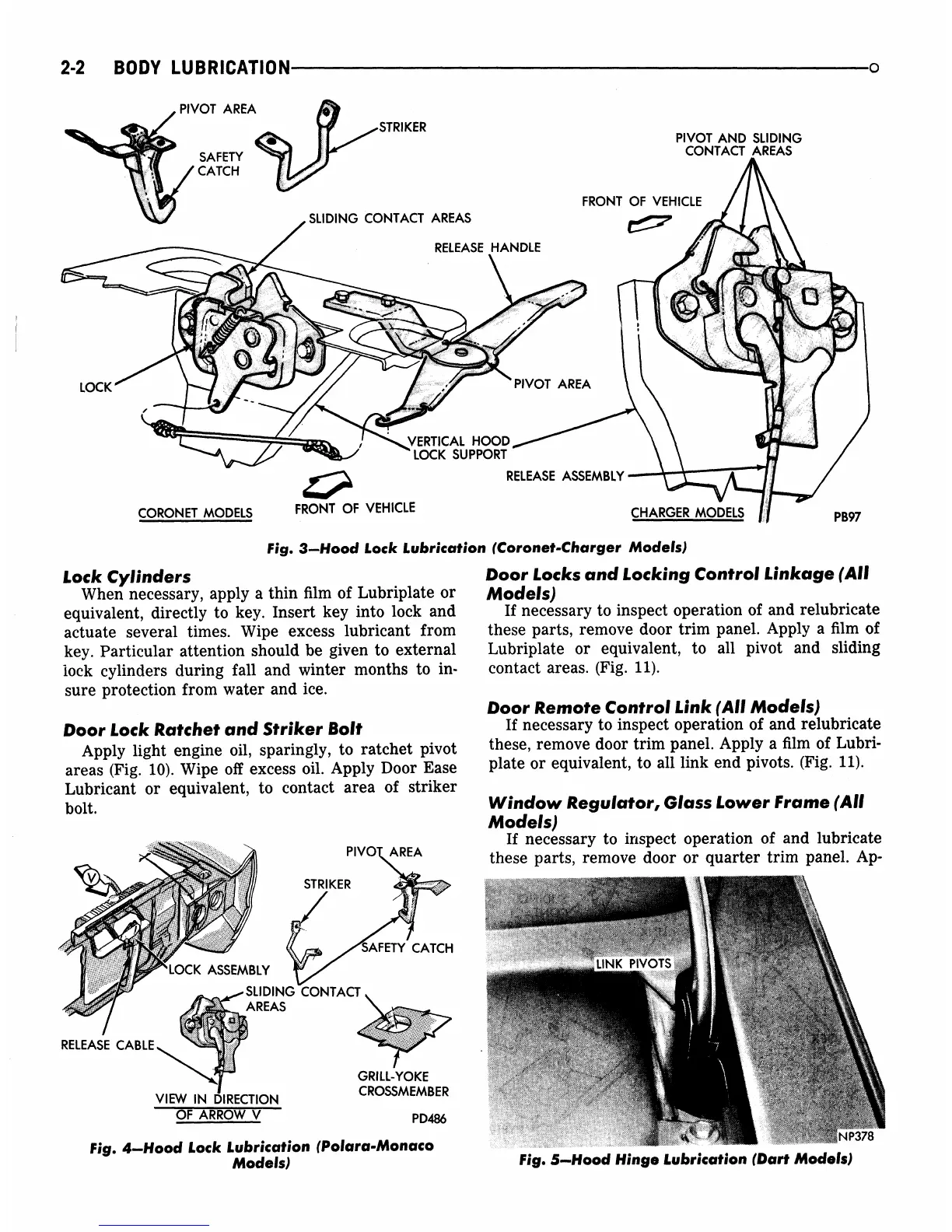

2-2 BODY LUBRICATION
PIVOT AREA
PIVOT
AND
SLIDING
CONTACT AREAS
SLIDING CONTACT AREAS
RELEASE HANDLE
VERTICAL HOOD
LOCK SUPPORT
PB97
Fig. 3—Hood Lock Lubrication (Coronet-Charger Models)
Lock Cylinders
When necessary, apply
a
thin film
of
Lubriplate
or
equivalent, directly
to key.
Insert
key
into lock
and
actuate several times. Wipe excess lubricant from
key. Particular attention should
be
given
to
external
lock cylinders during fall
and
winter months
to in-
sure protection from water
and ice.
Door Lock Ratchet and Striker
Bolt
Apply light engine
oil,
sparingly,
to
ratchet pivot
areas
(Fig.
10). Wipe
off
excess
oil.
Apply Door Ease
Lubricant
or
equivalent,
to
contact area
of
striker
bolt.
PIVOT AREA
STRIKER
LOCK ASSEMBLY
SLIDING CONTACT
AREAS
Door Locks and Locking Control Linkage (All
Models)
If necessary
to
inspect operation
of and
relubricate
these parts, remove door trim panel. Apply
a
film
of
Lubriplate
or
equivalent,
to all
pivot
and
sliding
contact areas.
(Fig. 11).
Door Remote Control
Link
(All Models)
If necessary
to
inspect operation
of and
relubricate
these, remove door trim panel. Apply
a
film
of
Lubri-
plate
or
equivalent,
to all
link
end
pivots.
(Fig. 11).
Window
Regulator,
Glass
Lower Frame (All
Models)
If necessary
to
inspect operation
of and
lubricate
these parts, remove door
or
quarter trim panel.
Ap-
FETY CATCH
RELEASE CABLE
VIEW
IN
DIRECTION
OF ARROW
V
GRILL-YOKE
CROSSMEMBER
PD486
Fig.
4-¯Hood Lock Lubrication (Poïara-Monaco
Models)
•i
`*
f
^WÊk
"
NP378
Fig.
5-Hood Hinge Lubrication
(Dart
Models)
