BODY LUBRICATION 2-3
PIVOT POINTS
PIVOT
AND
LINK
CONTACT
AREAS
PF43O

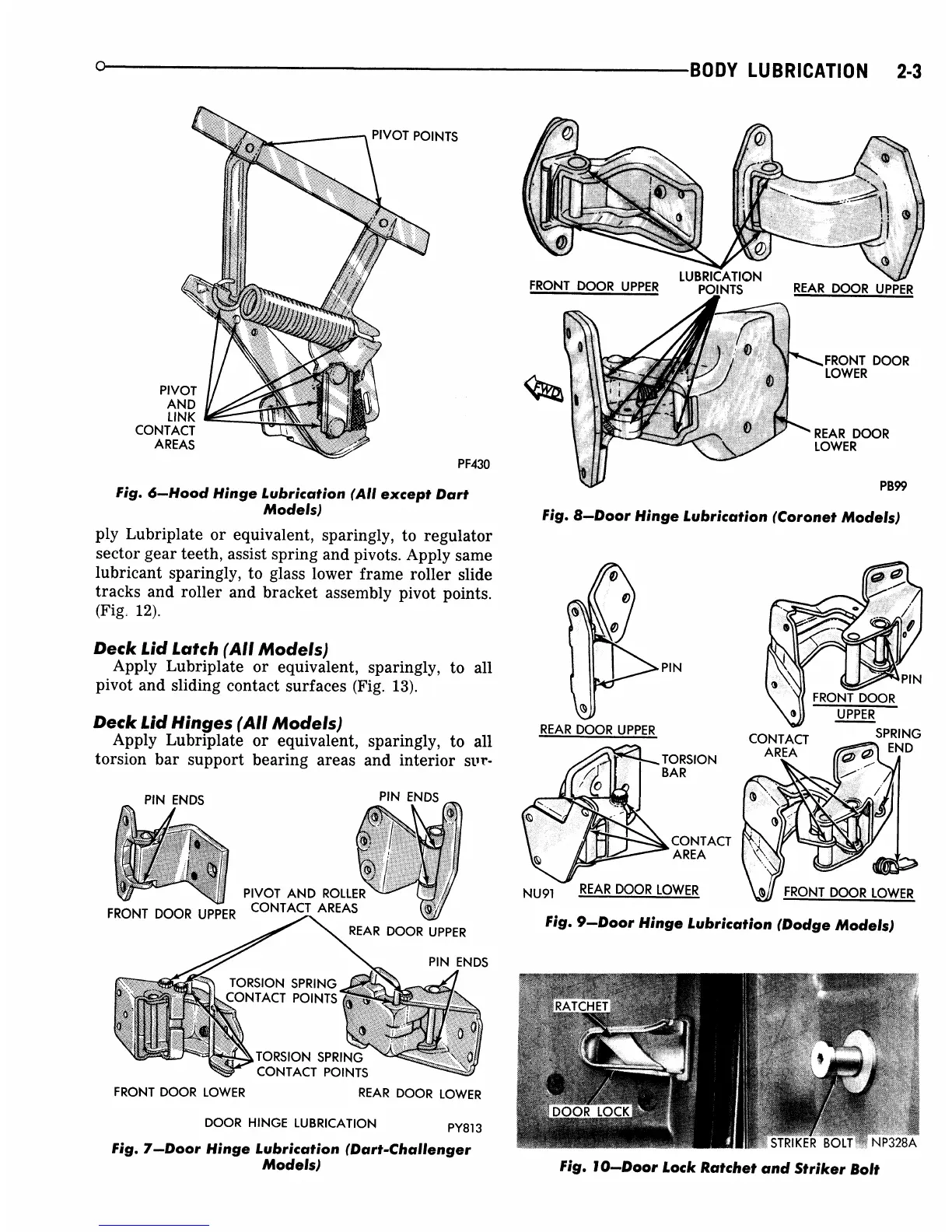

Fig. 6—Hood Hinge Lubrication (Ail except Dart
Models)
ply Lubriplate or equivalent, sparingly, to regulator
sector gear teeth, assist spring and pivots. Apply same
lubricant sparingly, to glass lower frame roller slide
tracks and roller and bracket assembly pivot points.
(Fig. 12).
Deck Lid Latch (All Models)
Apply Lubriplate or equivalent, sparingly, to all
pivot and sliding contact surfaces (Fig. 13).
Deck Lid Hinges (All Models)
Apply Lubriplate or equivalent, sparingly, to all
torsion bar support bearing areas and interior svr-
PIN ENDS
PIN ENDS
FRONT DOOR UPPER
PIVOT AND ROLLER
CONTACT AREAS
REAR DOOR UPPER
PIN ENDS
TORSION SPRING
CONTACT POINTS
JORSION SPRING
CONTACT POINTS
FRONT DOOR LOWER REAR DOOR LOWER
DOOR HINGE LUBRICATION
pY813
Fig. 7—Door Hinge Lubrication (Dart-Challenger
Models)
FRONT DOOR UPPER POINTS REAR DOOR UPPER
FRONT DOOR
LOWER
REAR DOOR
LOWER
PB99
Fig. 8-Door Hinge Lubrication (Coronet Models)
PIN
REAR DOOR UPPER
TORSION
BAR
CONTACT
AREA
NU91
REAR DOOR LOWER \$jj FRONT DOOR LOWER
Fig. 9-Door Hinge Lubrication (Dodge Models)
STRIKER BOLT NP328A
Fig. lO-Door Lock Ratchet and Striker Bolt
