2-4 BODY LUBRICATION
PIVOT AND SLIDING
CONTACT AREAS
REMOTE CONTROL
LINK'
LATCH ASSEMBLY
SLIDING CONTACT
SURFACE
PIVOT
PF43l

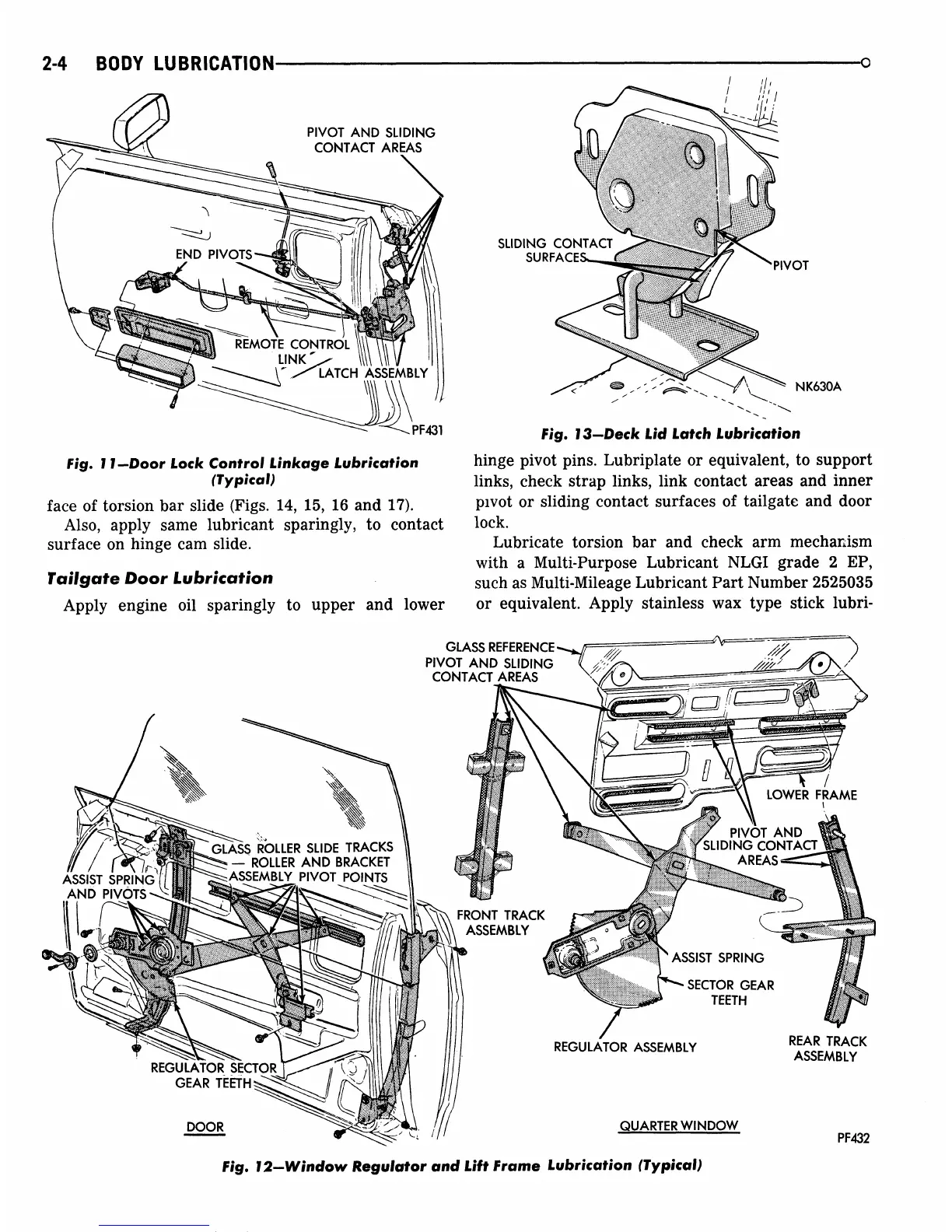

Fig. 11 —Door Lock Control Linkage Lubrication
(Typical)
face of torsion bar slide (Figs. 14, 15, 16 and 17).
Also, apply same lubricant sparingly, to contact
surface on hinge cam slide.
Tailgate Door Lubrication
Apply engine oil sparingly to upper and lower
NK63OA
Fig. 13-Deck Lid Latch Lubrication
hinge pivot pins. Lubriplate or equivalent, to support
links, check strap links, link contact areas and inner
pivot or sliding contact surfaces of tailgate and door
lock.
Lubricate torsion bar and check arm mechanism
with a Multi-Purpose Lubricant NLGI grade 2 EP,
such as Multi-Mileage Lubricant Part Number 2525035
or equivalent. Apply stainless wax type stick lubri-
GLASS REFERENCE
PIVOT AND SLIDING
CONTACT AREAS
ASSIST SPRING
AND PIVOTS
GLASS ROLLER SLIDE TRACKS
— ROLLER AND BRACKET
ASSEMBLY PIVOT POINTS
REGULATOR SECTOR
GEAR TEETH
PIVOT AND
SLIDING CONTACT
AREAS
‰ FRONT TRACK
^\ ASSEMBLY
QUARTER WINDOW
Fig. Ì2-Window Regulator and Lift Frame Lubrication (Typical)
REAR TRACK
ASSEMBLY
PF432
