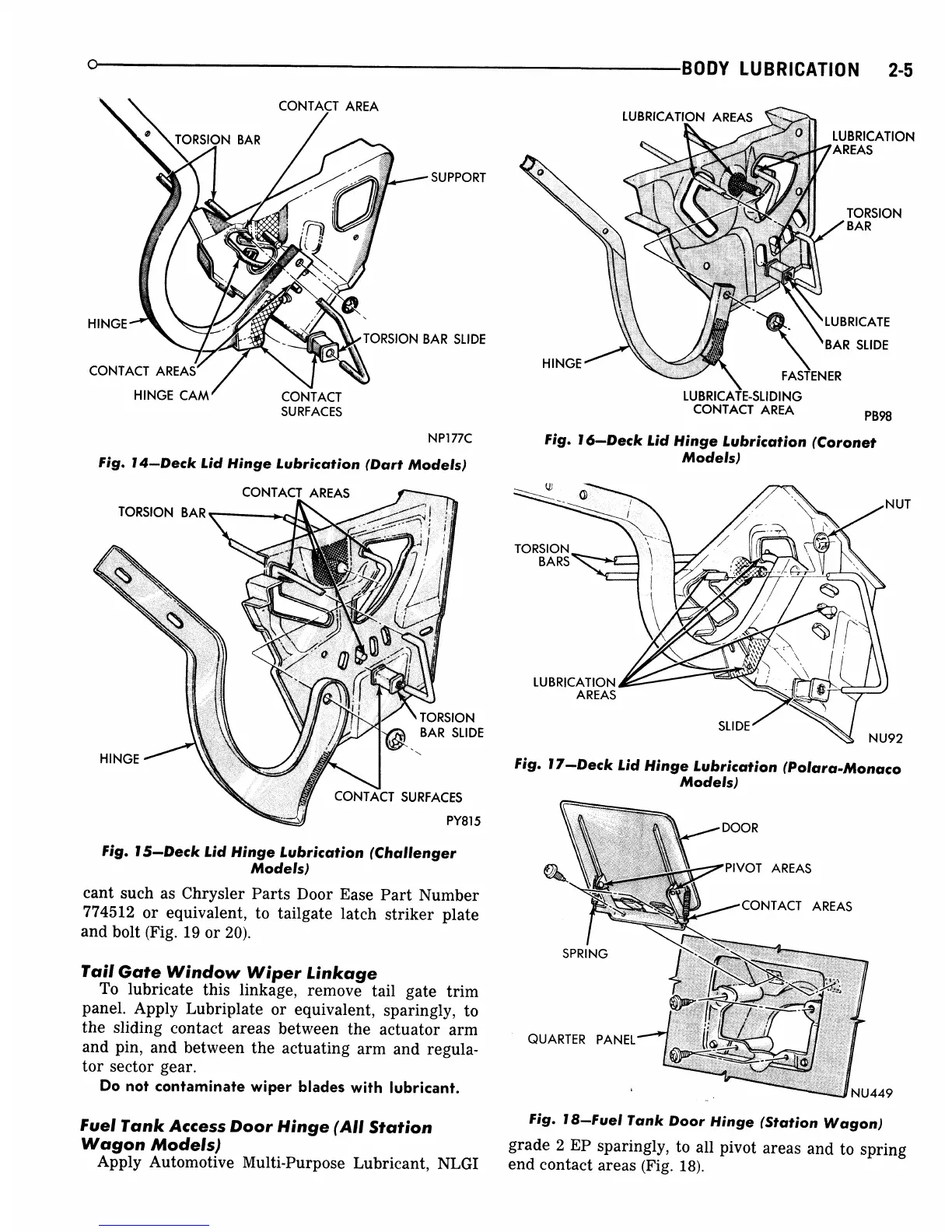

BODY LUBRICATION 2-5
CONTACT AREA
LUBRICATION AREAS
SUPPORT
HINGE
CONTACT AREAS
HINGE CAM
TORSION BAR SLIDE
CONTACT
SURFACES
NP177C
Fig. 14-Deck Lid Hinge Lubrication (Dart Models)
CONTACT AREAS
TORSION BAR
TORSION
BAR SLIDE
HINGE
CONTACT SURFACES
PY815
Fig. 15—Deck Lid Hinge Lubrication (Challenger
Models)
cant such as Chrysler Parts Door Ease Part Number
774512 or equivalent, to tailgate latch striker plate
and bolt (Fig. 19 or 20).
Tail Gate Window Wiper Linkage
To lubricate this linkage, remove tail gate trim
panel. Apply Lubriplate or equivalent, sparingly, to
the sliding contact areas between the actuator arm
and pin, and between the actuating arm and regula-
tor sector gear.
Do not contaminate wiper blades with lubricant.
Fuel Tank Access Door Hinge (All Station
Wagon Models)
Apply Automotive Multi-Purpose Lubricant, NLGI
LUBRICATION
AREAS
TORSION
BAR
HINGE
LUBRICATE-SLIDING
CONTACT AREA
LUBRICATE
BAR SLIDE
PB98
Fig. 76-Decfc Lid Hinge Lubrication (Coronet
Models)
NUT
LUBRICATION
AREAS
SLIDE'
NU92
Fig. Ï7-Deck Lid Hinge Lubrication (Polara-Monaco
Models)
DOOR
PIVOT AREAS
CONTACT AREAS
SPRING
QUARTER PANEL
NU449
Fig. 18-Fuel Tank Door Hinge (Station Wagon)
grade 2 EP sparingly, to all pivot areas and to spring
end contact areas (Fig. 18).
