2-6 BODY LUBRICATION
WEDGE
LOCKING PINS ( ``
SUPPORT LINK
HINGE PIN
STRIKER BOLT
UPPER HINGE
PIVOT AND
ROLLER
LOWER HINGE
PIVOT PIN AREAS
LUBRICATION
POINTS
VIEW IN DIRECTION
OF ARROW X
LUBRICATION POINT
TORSION BAR CENTER
BEARING SUPPORT
TORSION BAR
STRIKER PLATE

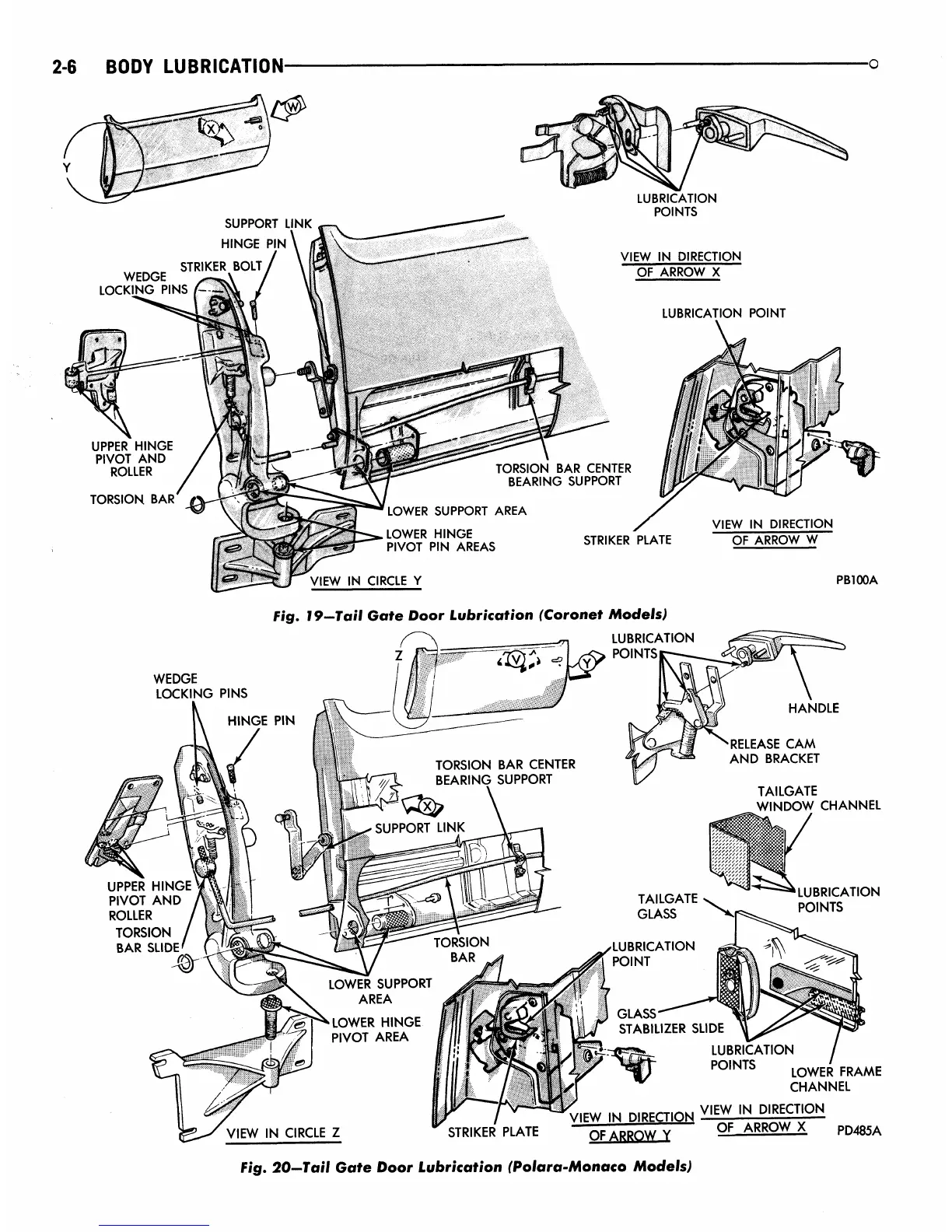

Fig. 19-Ta¡l Gate Door Lubrication (Coronet Models)
f
Z
VIEW IN DIRECTION
OF ARROW W
PB100A
WEDGE
LOCKING PINS
TAILGATE
WINDOW CHANNEL
UPPER HINGE
PIVOT AND
ROLLER
TORSION
BAR SLIDE
LUBRICATION
POINTS
RELEASE CAM
AND BRACKET
TORSION BAR CENTER
BEARING SUPPORT
TAILGATE
GLASS
LUBRICATION
POINT
LOWER SUPPORT
AREA
GLASS
STABILIZER SLIDE
LOWER HINGE
PIVOT AREA
LUBRICATION
POINTS
VIEW IN DIRECTION
VIEW IN DIRECTION
STRIKER PLATE
VIEW IN CIRCLE Z
LUBRICATION
POINTS
OFARROWY
Fig. 20-Tail Gate Door Lubrication (Polara·Monaco Models)
LOWER FRAME
CHANNEL
OF ARROW X PD485A
