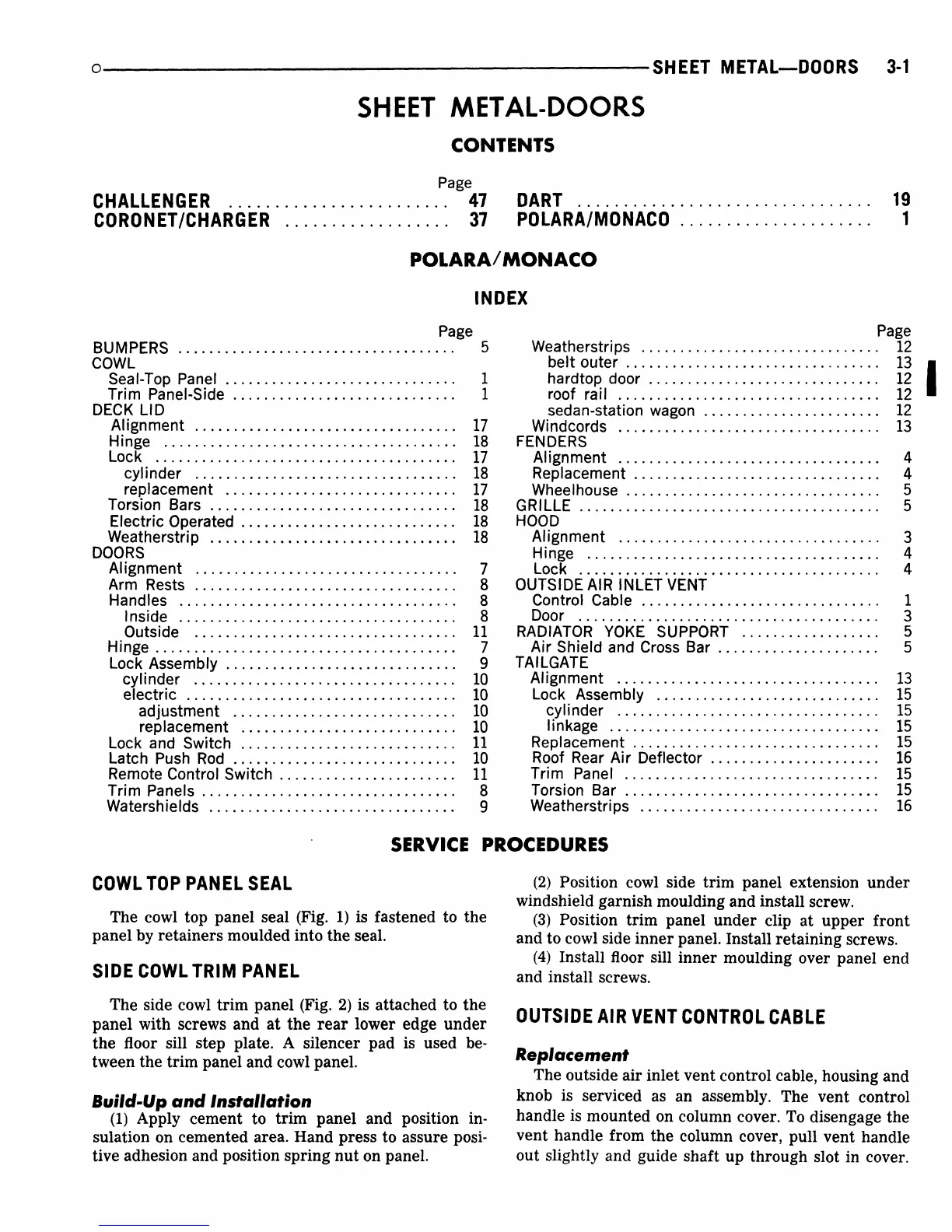

SHEET METAL—DOORS 3-1
SHEET METAL-DOORS
CONTENTS
Page
CHALLENGER 47 DART 19
CORONET/CHARGER 37 POLARA/MONACO 1
POLARA MONACO
INDEX
Page
BUMPERS 5
COWL
Seal-Top Panel 1
Trim Panel-Side 1
DECK LID
Alignment 17
Hinge 18
Lock 17
cylinder 18
replacement 17
Torsion Bars 18
Electric Operated 18
Weatherstrip 18
DOORS
Alignment 7
Arm Rests 8
Handles 8
Inside 8
Outside 11
Hinge 7
Lock Assembly 9
cylinder 10
electric 10
adjustment 10
replacement 10
Lock and Switch 11
Latch Push Rod 10
Remote Control Switch 11
Trim Panels 8
Watersh¡elds 9
Page
Weatherstrips 12
belt outer 13
hardtop door 12
roof rail 12
sedan-station wagon 12
Windcords 13
FENDERS
Alignment 4
Replacement 4
Wheelhouse 5
GRILLE 5
HOOD
Alignment 3
Hinge 4
Lock 4
OUTSIDE AIR INLET VENT
Control Cable 1
Door 3
RADIATOR YOKE SUPPORT 5
Air Shield and Cross Bar 5
TAILGATE
Alignment 13
Lock Assembly 15
cylinder 15
linkage 15
Replacement 15
Roof Rear Air Deflector 16
Trim Panel 15
Torsion Bar 15
Weatherstrips 16
SERVICE PROCEDURES
COWL TOP PANEL SEAL
The cowl top panel seal (Fig. 1) is fastened to the
panel by retainers moulded into the seal.
SIDE
COWL
TRIM PANEL
The side cowl trim panel (Fig. 2) is attached to the
panel with screws and at the rear lower edge under
the floor sill step plate. A silencer pad is used be-
tween the trim panel and cowl panel.
Build-Up
and Installation
(1) Apply cement to trim panel and position in¯
sulation on cemented area. Hand press to assure posi-
tive adhesion and position spring nut on panel.
(2) Position cowl side trim panel extension under
windshield garnish moulding and install screw.
(3) Position trim panel under clip at upper front
and to cowl side inner panel. Install retaining screws.
(4) Install floor sill inner moulding over panel end
and install screws.
OUTSIDE AIR VENT CONTROL CABLE
Replacement
The outside air inlet vent control cable, housing and
knob is serviced as an assembly. The vent control
handle is mounted on column cover. To disengage the
vent handle from the column cover, pull vent handle
out slightly and guide shaft up through slot in cover.
