Doka Shifting trolley DF - Product Presentation; Component Overview

2 999216002 - 02/2020
Original Operating Instructions Shifting trolley DF
Product presentation
Shifting trolley DF
Art.n° 586080000

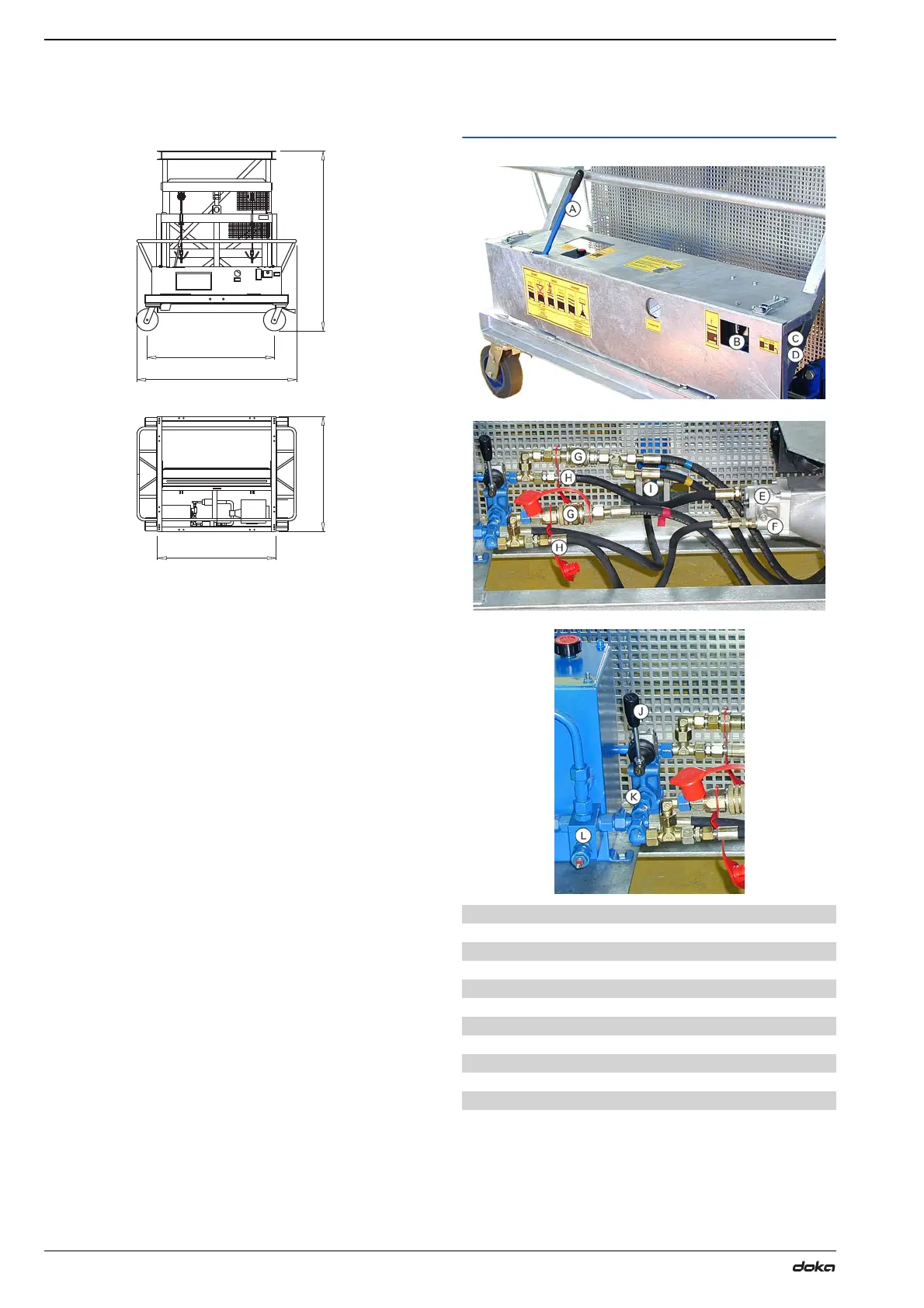

a ... 1440 mm
b ... 1804 mm
c ... 1540 mm to 3030 mm
d ... 1340 mm
e ... 1300 mm
Component overview
9216-200-01
a
b
d
e
c
A Hand-pump lever
B "Lift" button
C Power supply
D 220 V/50 Hz electric motor
E Hydraulic pump
F Non-return valve
G Quick-acting coupling for attachable drive unit
H Quick-acting coupling for attachable drive unit
I Cylinder with isolation valve
J Manual lowering valve
K Flow control valve
L Overpressure valve
