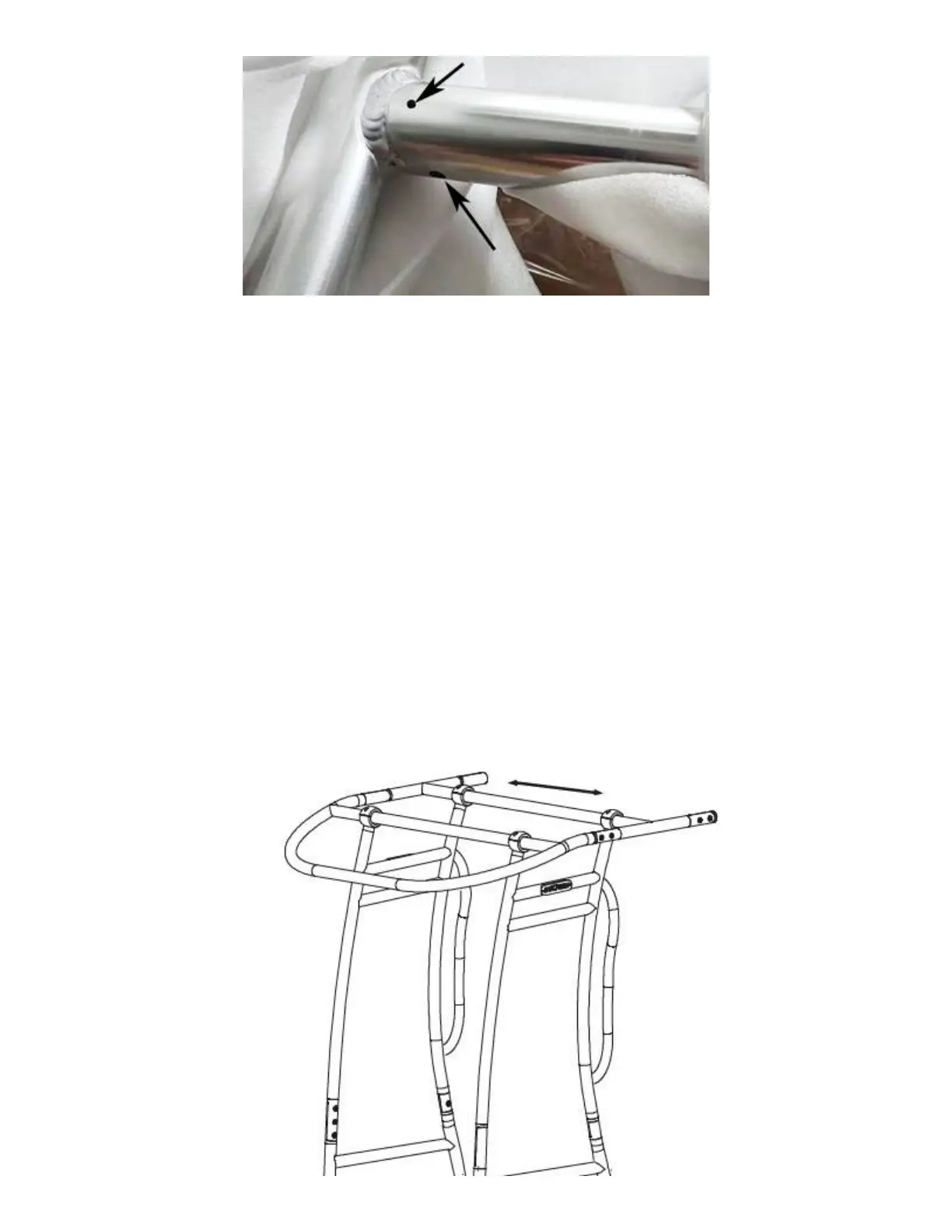

IMPORTANT: These small holes should be at the same side of each
bow otherwise it is not a correct installation and you may meet
trouble when attach the top frame to the legs.
STEP 6: Attach the Side Supports to the Assemble Top Section
Check the direction of the side support arms Logo to the outside, handle to the rear The small curved top frame
for the cover curves and bends downwards to the floor
Remove the tops of the ball clamps please NOTE the clamps are to be placed on the same way (they are
numbered inside)
Find the centre of the cross bar on the top section mark this. Use the measurement you marked out for the
postion of the deck mounts Mark this in the two cross beams on the top section that is assembled.
Attach the partial top section to the support frame ensuring all parts are facing the correct direction. (refer to
pictures of T Tops for reference if unsure.)
