NOTE: For Pro3 t top, there is 2 smaller clamps which must be assembled onto the 3rd bow of the top
frame for attaching the 2 large handles. But please don't attach the handles at this time. Keep the
clamps movable until you install the legs and find the exact position where you can tighten it.

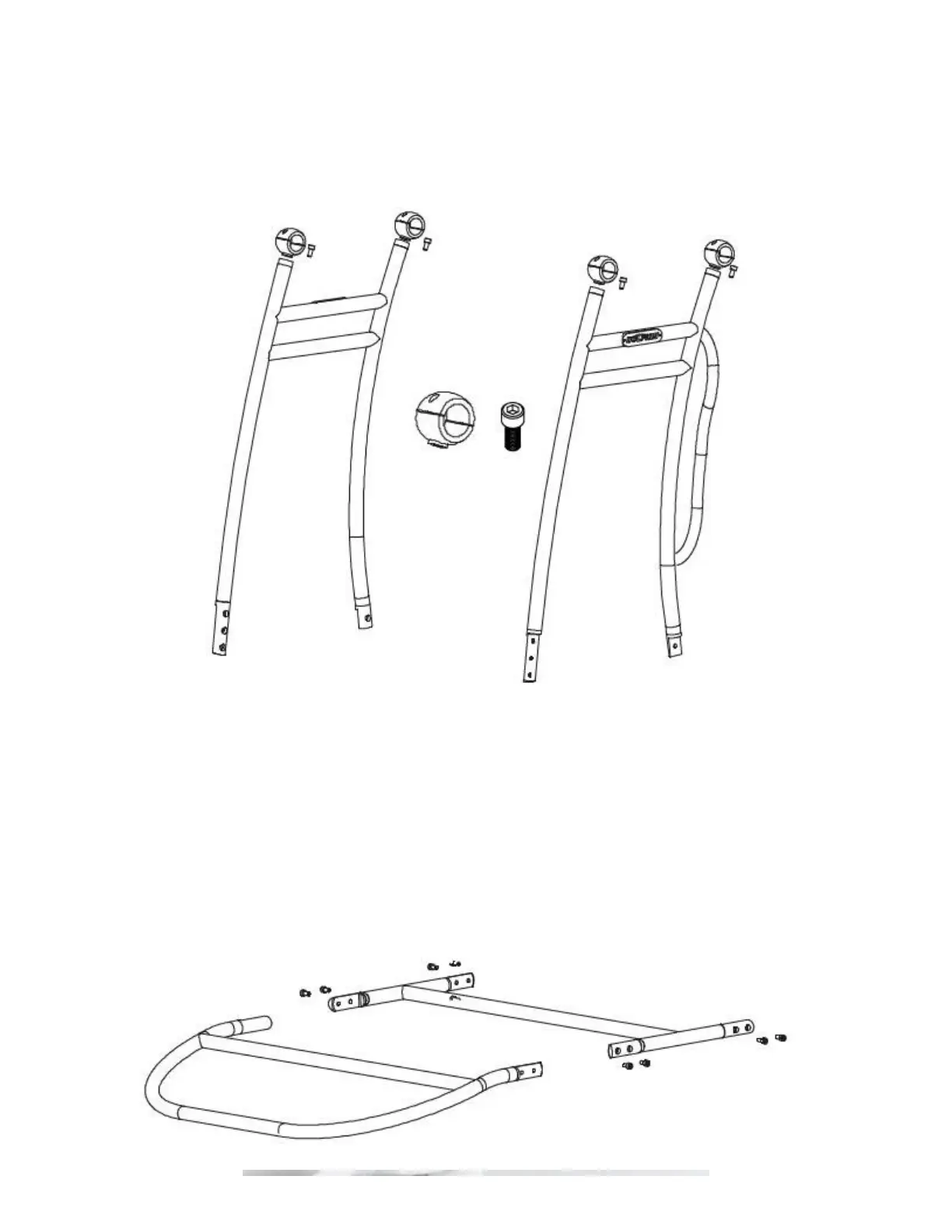

STEP 5: Assember the front and centre section of the top frame
Note the shape of the front section is narrow and also has a bend curve which faces downwards when attached
to the side support frames of the T Top.
Note the lap joints have a number on the flat face match these up for correct installation.
DO NOT use washer for top frame assembly, the washer is for support frame only!
