DOM Easykey Slim - Handle

77
EN
2
2
1
1.1
1.2
Standard cylinder dimensions for Easykey SLIM
Standard length of spindle and screws:
Door thickness, mm
for centered doors
35 40 45 50 55 60 65 70 75 80
Cylinder dimensions, mm
outside/inside
30/45 30/50 30/50 35/55 35/55 40/60 40/60 45/65 45/65 50/70
Door thickness, mm 35 40 45 50 55 60 65 70 75 80
Spindle Length, mm 94,5 94,5 94,5 94,5 94,5 119,5 119,5 119,5 119,5 119,5
Screw Length, mm 55 60 65 70 75 80 85 90 95 100
Handle

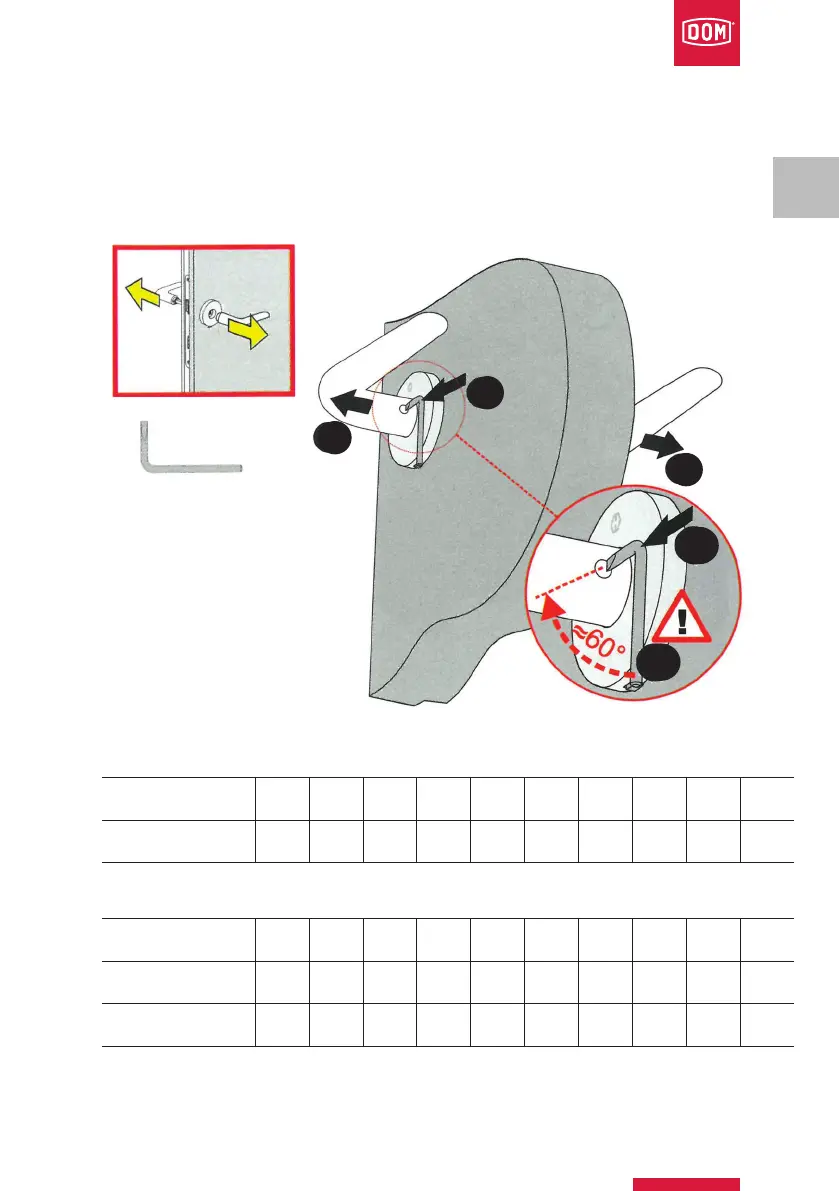

To assemble the handle, push it.
To disassemble the handle, follow the instructions:
