Dometic 4300/4400 Series Toilets Troubleshooting
Troubleshooting guide

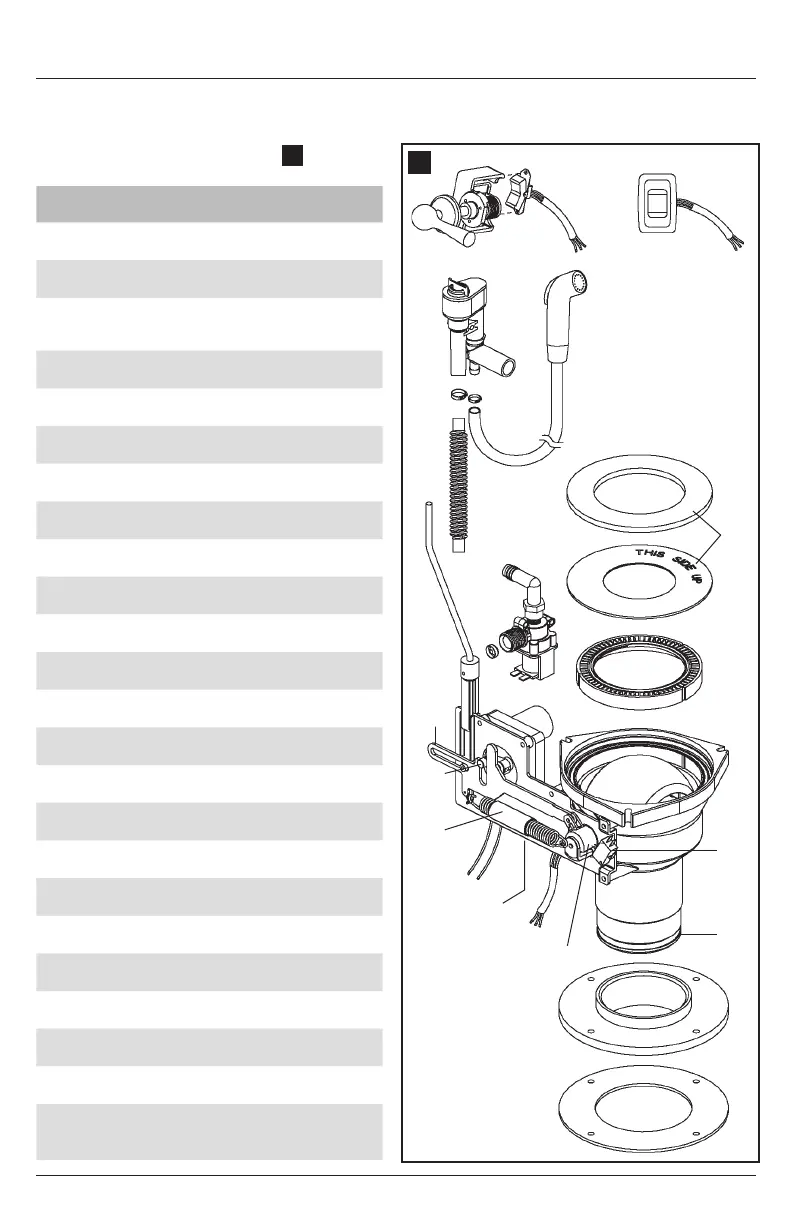

Toilet base components (g.
1
)
Ref. Description
A Flush handle (4300 series)
B Flush switch (4400 series)
C Hand sprayer (optional – not on all
models)
D Vacuum breaker
E Bowl and ush ball seals
F Seal plate
G Flush ball
H Cam switch (adjustable)
I O-ring
J Floor ange adapter
K Flange adapter seal
L Rotor shaft cam
M Flush switch cable (4400 series)
N Terminal block (opposite side)
O Power wires
P Flush spring
Q Drive arm
R Drive linkage
S Flush ball drive motor
T Water valve
U Screen
V Manual ush lever
W Bowl water supply hose
Refer to complete parts list (packed separately)
for additional information.
A B
CD
E
F
G
H
I
J
K
L
M
N
O
P
Q
R S
TUV
W
