Dometic BR342 Installation
EN 15

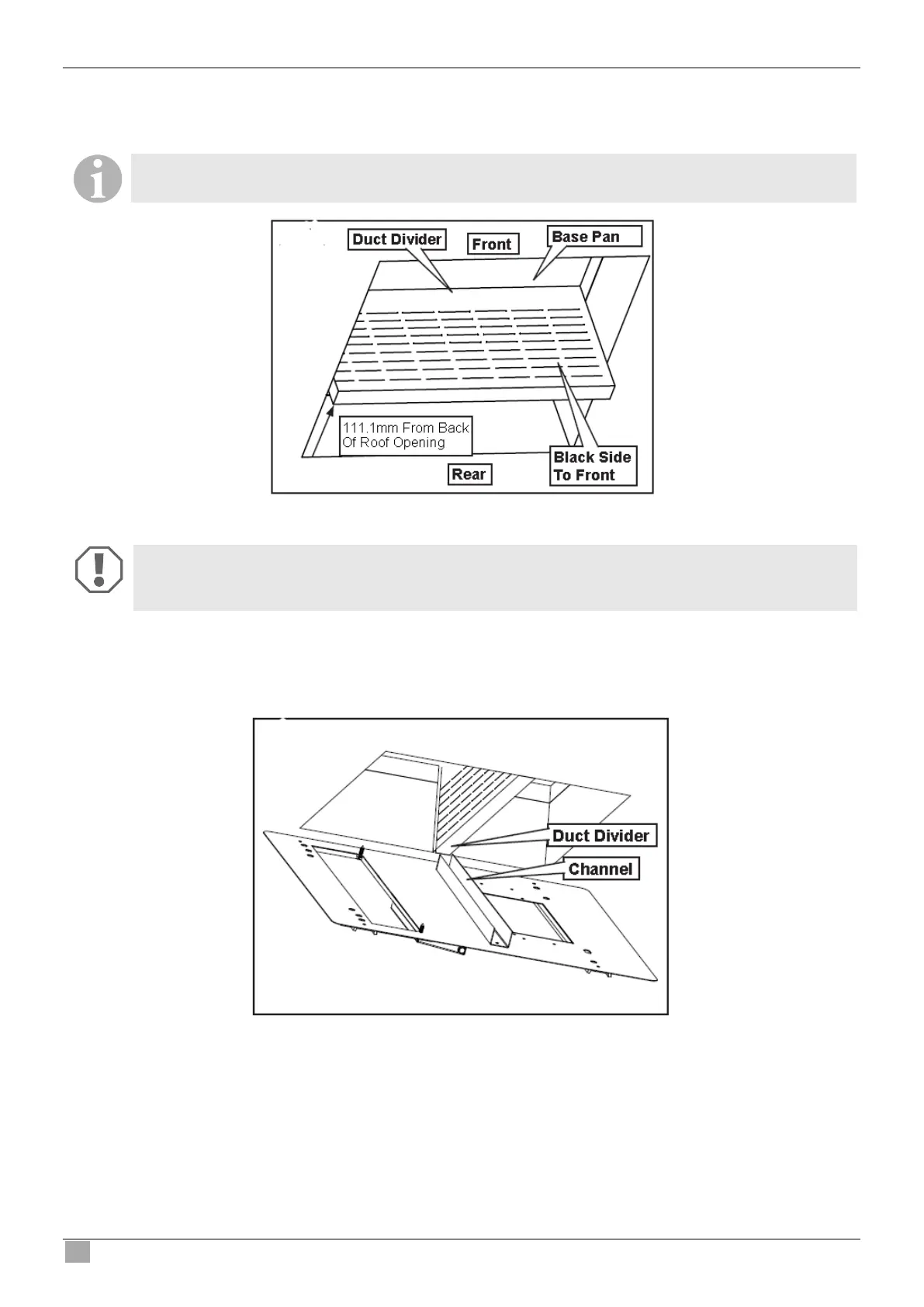

➤ Carefully install the duct divider in the roof opening 111.1mm from back of roof opening.
Note
The foil side faces rear of unit.
➤ Hold the ceiling template up to the roof opening and start each mounting bolt, by hand, through the ceiling template
and up into the unit base pan.
➤ Bolts should be fed into locations A, D, E and H as shown in the following diagram.
NOTICE!
Incorrect installation of the divider could cause compressor to short-cycle, resulting in supply circuit
overload and reduced product performance.
