Dometic CCF-T Installation Manual

Dometic CCF-T Ford Expedition 2022 Installation Manual/ 2022-03-03/ Page 10 of 15

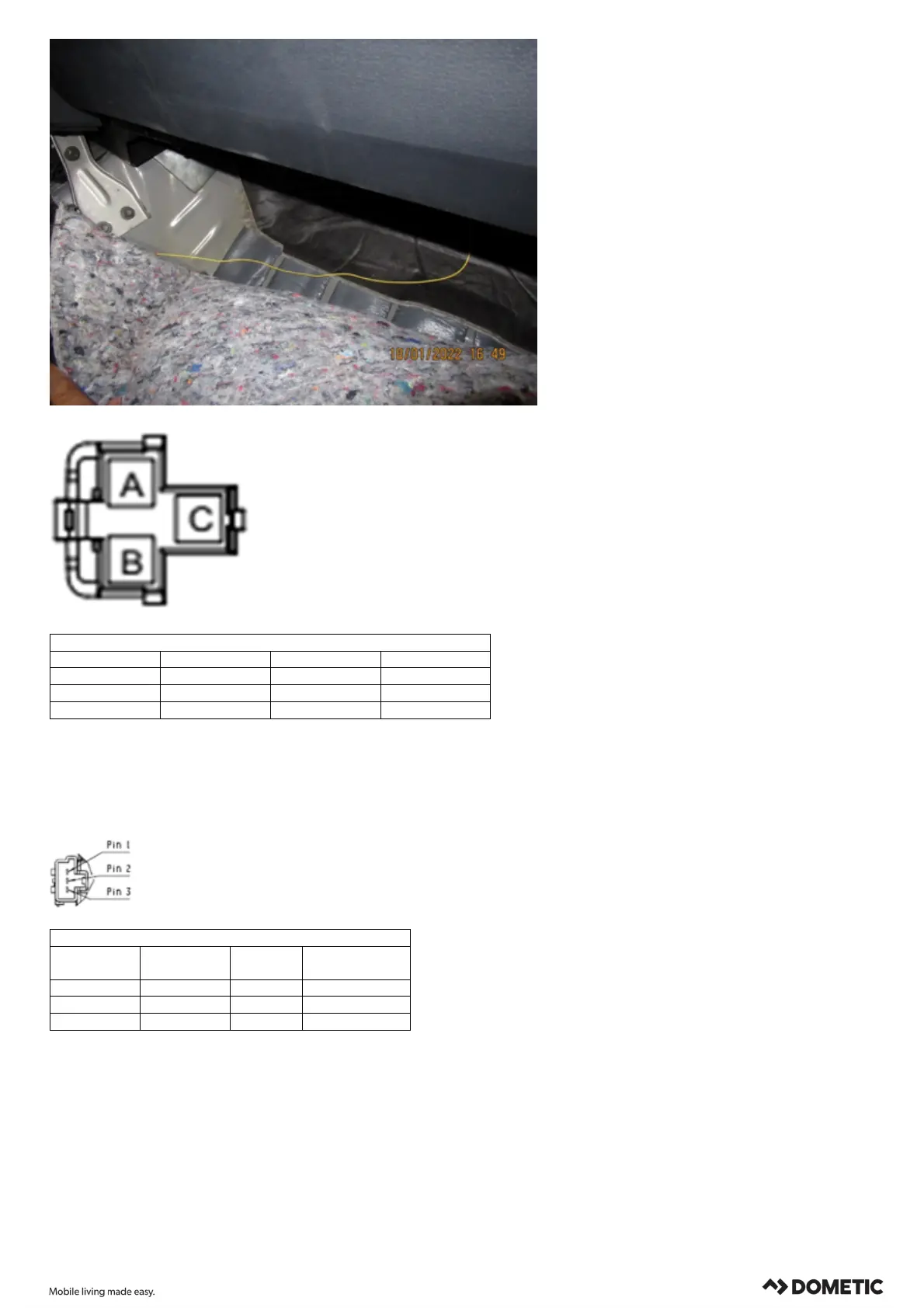

6. Remove the C3786 connector from the 12V socket.
DC Harness
Pin Signal Cable Color Section
A Power B+ Red 2.5
B
C GND Black 2.5
7. Cut-off the B+(Red) and GND(Black) terminal from the C3786 connector.
8. Insert the Yazaki female terminals P/N 7116-4272-02 on the B+ Red wire and fix the terminal into Yazaki female connector housing Pin 1 cavity.
9. Insert the Yazaki female terminals P/N 7116-4272-02 on the GND Black wire and fix the terminal into Yazaki female connector housing Pin 3 cavity.
10. Insert the Yazaki female terminals P/N 7116-4272-02 on the R/S Yellow wire other end and fix the terminal into Yazaki female connector housing Pin 2
cavity.
DC Harness
Pin Signal Cable
Colour
Section(mm2)
1 Power B+ Red 2.5
2 R/S signal Yellow 0.5
3 GND Black 2.5
