IBIS4 Installation

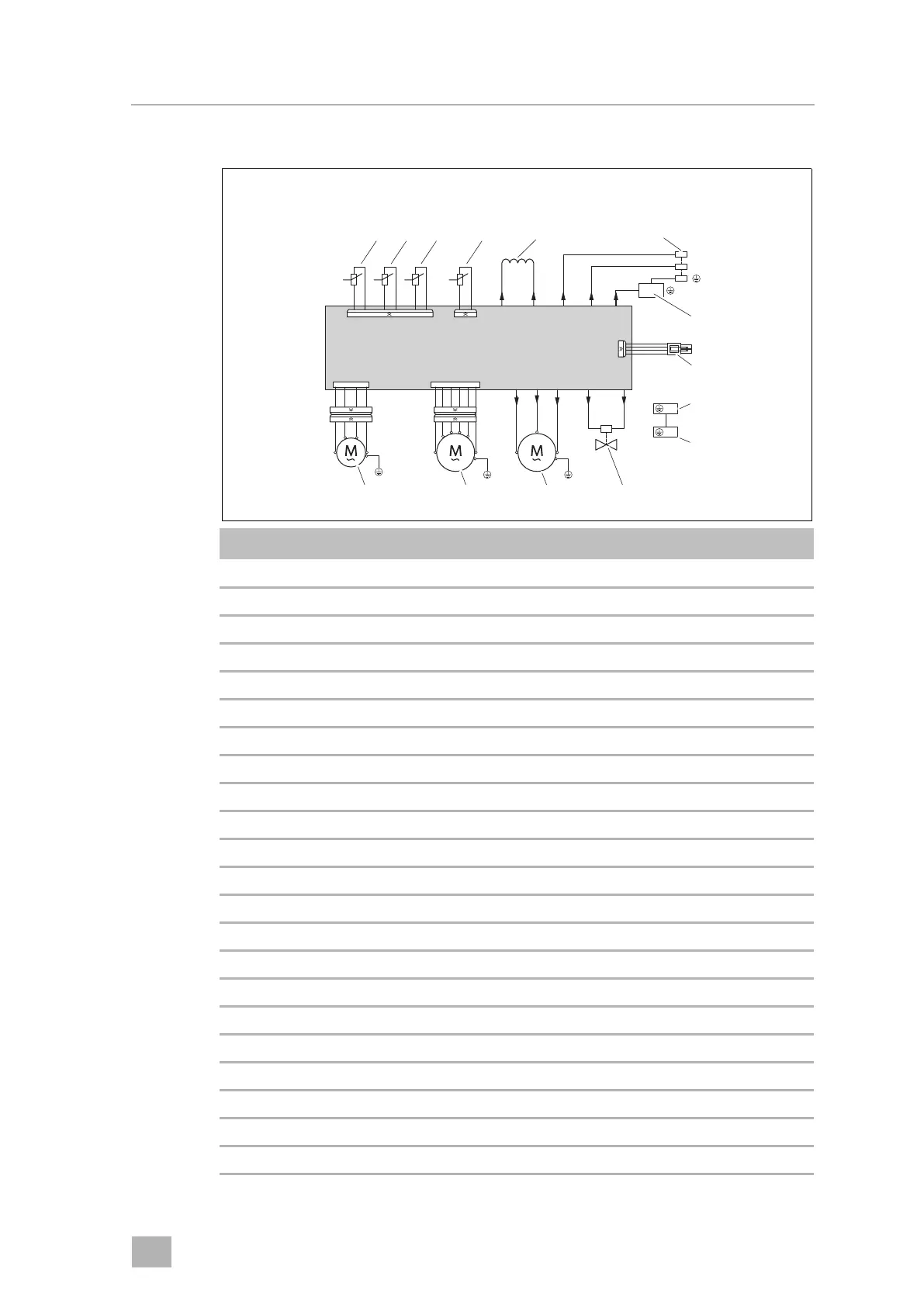

Electrical connection
Item Description
1 220 – 240 Vw mains
2 Evaporator plate
3 Communication wire
4 Heatsink metal net
5Condenser plate
6 Reversing valve
7Inverter compressor
8 Fan evaporator
9Fan condenser
10 Out air sensor
11 Evaporator sensor
12 Condenser sensor
13 Discharge sensor
14 Inductor
ye yellow
bn brown
bu blue
gn green
vt violet
rd red
wh white
bk black
0000
L
N
CN5
COMU
ye/gn
ye/gn
bu
bn
ye/gn
yeye
vtvt
bk wh rd
rd
rd ye
bkbk
bu
brbr
whwh
ye/gnye/gn
ye/gn
N14VWVU
PE
AC-N
AC-LLX1
CN1CN2
CN3 CN4
LX2
RT1 RT2 RT3 RT4
2
3
4
5
6
1413121110
789
