Dometic IBIS4 Series - Mains voltage cable connection; Communication cable connection

AU
Installation IBIS4
18

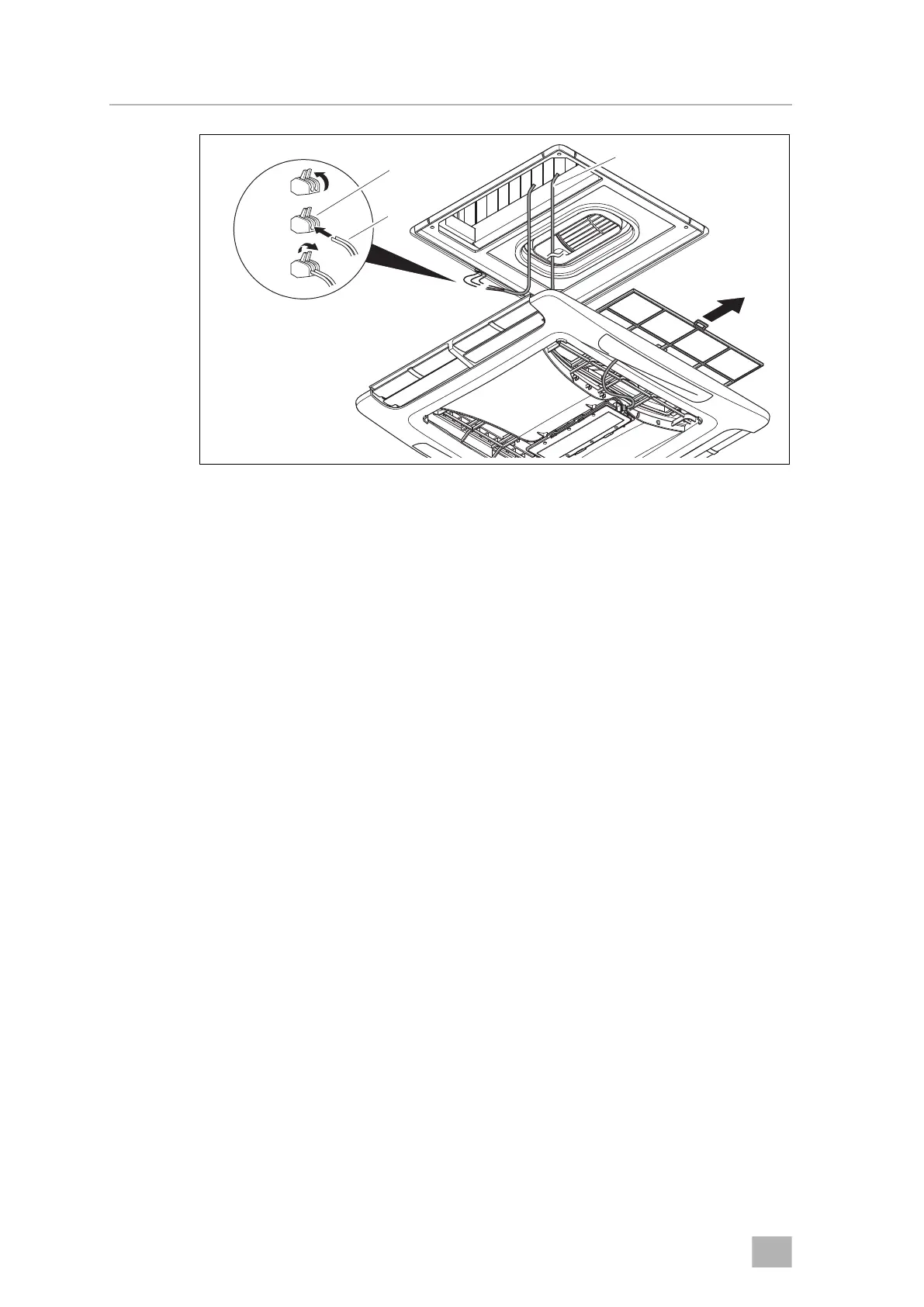

See fig. f
Mains voltage cable
➤ Connect the roof air conditioner with the mains voltage supply.
Connect the cables (1) to a cable connector (2).
Communication cable
➤ Pull out the filter slightly to create a gap for the communication cable (3).
➤ Feed the communication cable through the gap and locate the wire in the
opening.
1.
2.
3.
