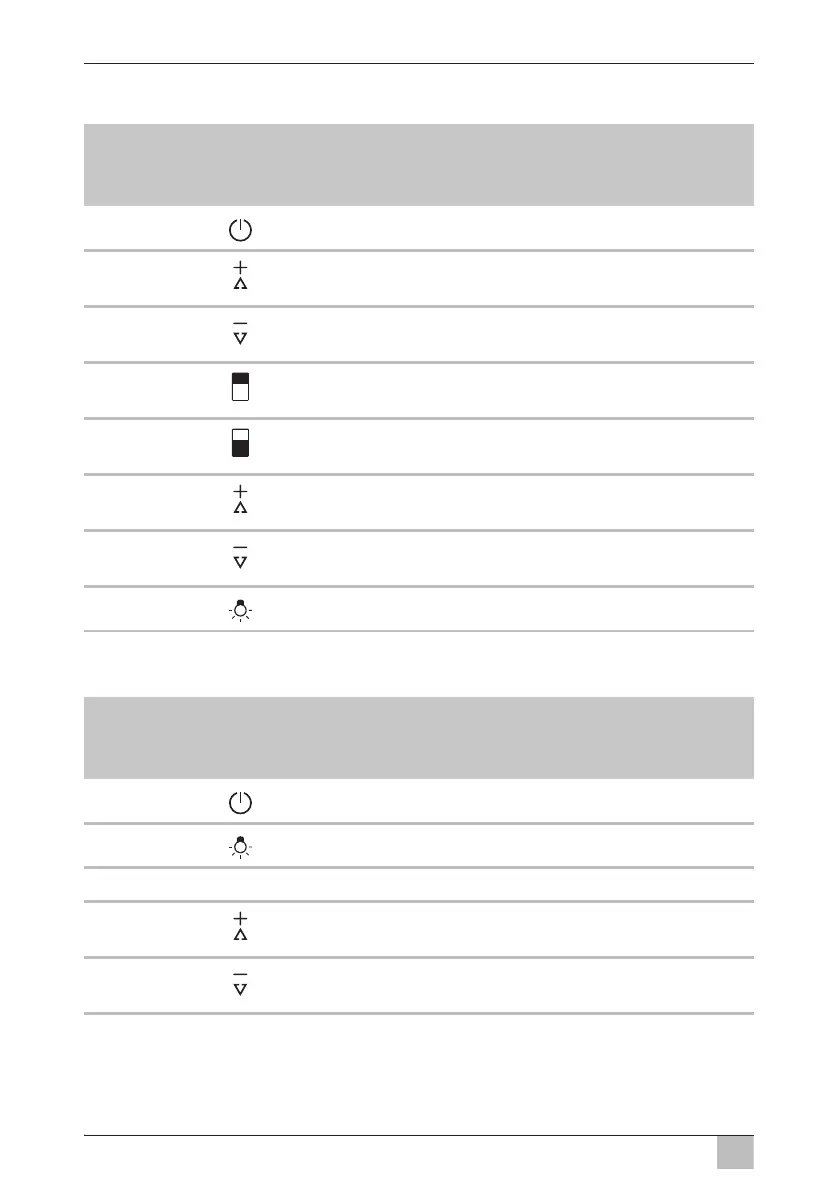

Control elements (S17G, S46G, S118G, ST198D)
Control elements (S24G)
No. in
fig. 3,
page 4
Symbol Description
1 On/off switch
2 Increases the set temperature of the upper temperature
zone by 1 °C or 1 °F
3 Decreases the set temperature of the upper temperature
zone by 1 °C or 1 °F
4 Display indicates the current temperature of the upper
temperature zone
5 Display indicates the current temperature of the lower
temperature zone
6 Increases the set temperature of the lower temperature
zone by 1 °C or 1 °F
7 Decreases the set temperature of the lower temperature
zone by 1 °C or 1 °F
8 Switches the interior light on or off
No. in
fig. 4,
page 4
Symbol Description
1 On/off switch
2 Switches the interior light on or off
3 – Display indicates the current temperature
4 Increases the set temperature of the upper temperature
zone by 1 °C or 1 °F
5 Decreases the set temperature of the upper temperature
zone by 1 °C or 1 °F
