CLEARANCES
Minimum clearances (in inches) to combustible materials:
Top (G) 0
Side (K) 0
Bottom (L) 0
Rear (M
1
) 0 / 1 (RM2351 & RM2354)
1
The distance between the rearmost part of the refrigerator and the wall
behind it.

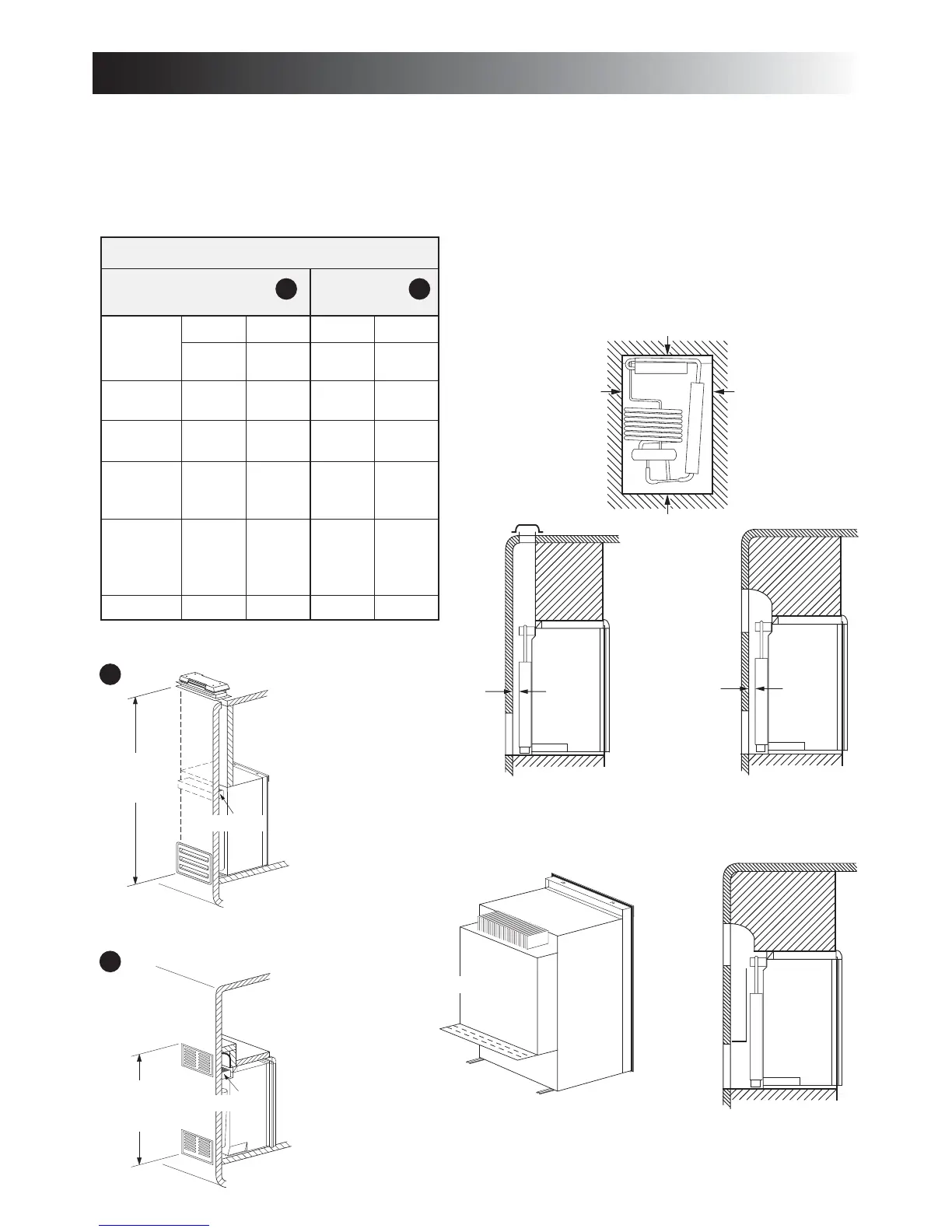

VENTILATION HEIGHTS
It is essential that all maximum or minimum dimensions
are strictly maintained, as the performance of the refrigerator
is dependent on adequate fl ow of air over the rear of
the refrigerator.
Minimum ventilation heights
Roof vent and
lower side vent
Upper and lower
side vent
RM2351
RM2354
inches mm inches mm
31 787 34 864
RM2451
RM2454
37-3/4 960
RM2551
RM2554
44-1/2 1130
DM2652
DM2662
DM2663
57-3/4 1465
DM2852
DM2862
DM3862
NDM1062
63-3/4 1620
NDR1292 65 1651
A
B
B
Minimum
ventilation
height
Condenser
A
Condenser
The upper vent
should be centered
over the condenser
coil at the back of
the refrigerator.
Minimum
ventilation
height
M
M
G
KK
L
SIDE VIEW WITH DUCT SYSTEM
DM2852, DM2862, DM3862 & NDM1062
Air channel
For installation instructions of the Air Channel, please refer to
“
INSTALLATION OF AIR CHANNEL”, Rev. 825129100 or later.
VENTILATION REQUIREMENTS
