Please contact Dometic Service Centres for
replacement LED-lighting.
 Switch off the refrigerator.
 Remove the reflector disk.
 Loosen LED-housing and take it off.
 Connect new LED-board. Observe polarity.
 Clip the LED-housing back in place.
 Clip reflector disk back in.
 Switch on the refrigerator.
4.10 Exchange of interior lighting
Refrigerator operation

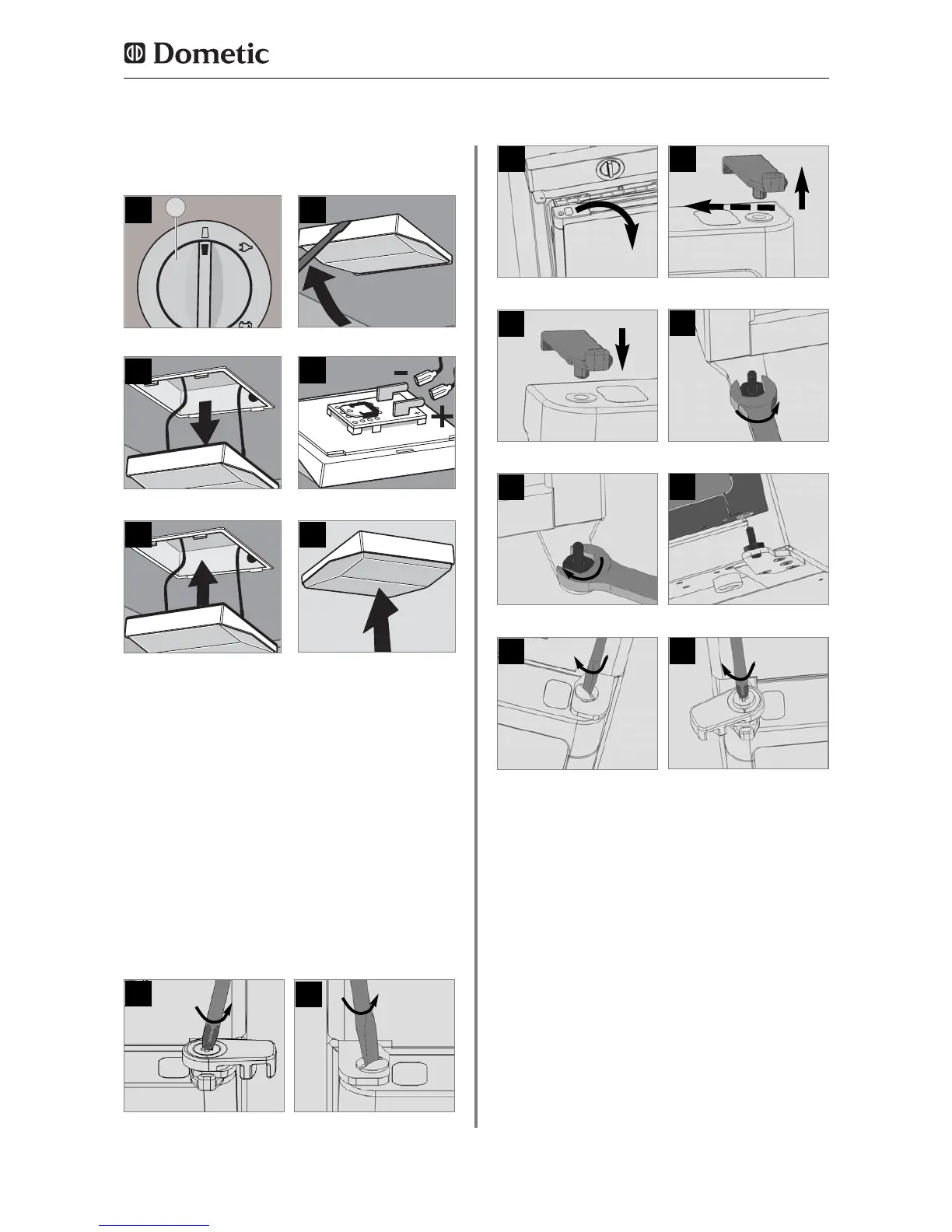

Fig. 23
Fig. 24
Fig. 25
Fig. 26
Fig. 21
1
3
Fig. 22
2
5
4
6
1
Fig. 31
Fig. 32
Fig. 33
Fig. 34
Fig. 29
4.11 Changing the doorhang
1
3
Fig. 30
2
5
4
6
Fig. 35
Fig. 36
7
8
Fig. 37
Fig. 38
9
10
 Unscrew the travel catch (door lock)
 Remove screw, travel catch and distance
ring.
 Unscrew the hinge screw at the opposite
side and keep it to hand.
 Lift the door from for removing it.
 Remove the travel catch nose from the
door and mount it on the opposite side.
 Unscrew the lower hinge pin and mount it
on the opposite side hinge .
 Fit the door on the hinge pin.
 Screw on the upper hinge screw.
 Screw on the travel catch.

Dometic RM 5330 Specifications

General

Noise level	- dB
Climate class	SN
Total net capacity	65 L
Total gross capacity	70 L
Lamp type	LED
No Frost (fridge)	-
Fridge net capacity	60 L
Fridge interior light	Yes
Door hinge	Left
Product color	Black, Grey
Appliance placement	Freestanding
Refrigerating medium	R717
Freezer position	Top-placed
Freezing capacity	- kg/24h
Freezer net capacity	5 L
Storage time during power failure	- h
Current	0.54 A
Power source	Gas/Electric
Connected load	125 W
Gas consumption	270 g/24h
AC input voltage	230 - 240 V
AC input frequency	50 - 60 Hz
Package depth	543 mm
Package width	523 mm
Package height	845 mm
Package weight	27000 g

Weight and Dimensions

Depth	474 mm
Width	486 mm
Height	821 mm
Weight	22000 g
