5. VENTILATION HEIGHTS
Refer to FIG. 1, Page 1.
lnstallation
wlth roof
Minimum
ventilation
vent and lower side vent
heights In
REFRIGERATOR
inches
mm
RM2410 34
884
RM2510
42
lo87
RM2610
58 1422
RM2810
82 1575

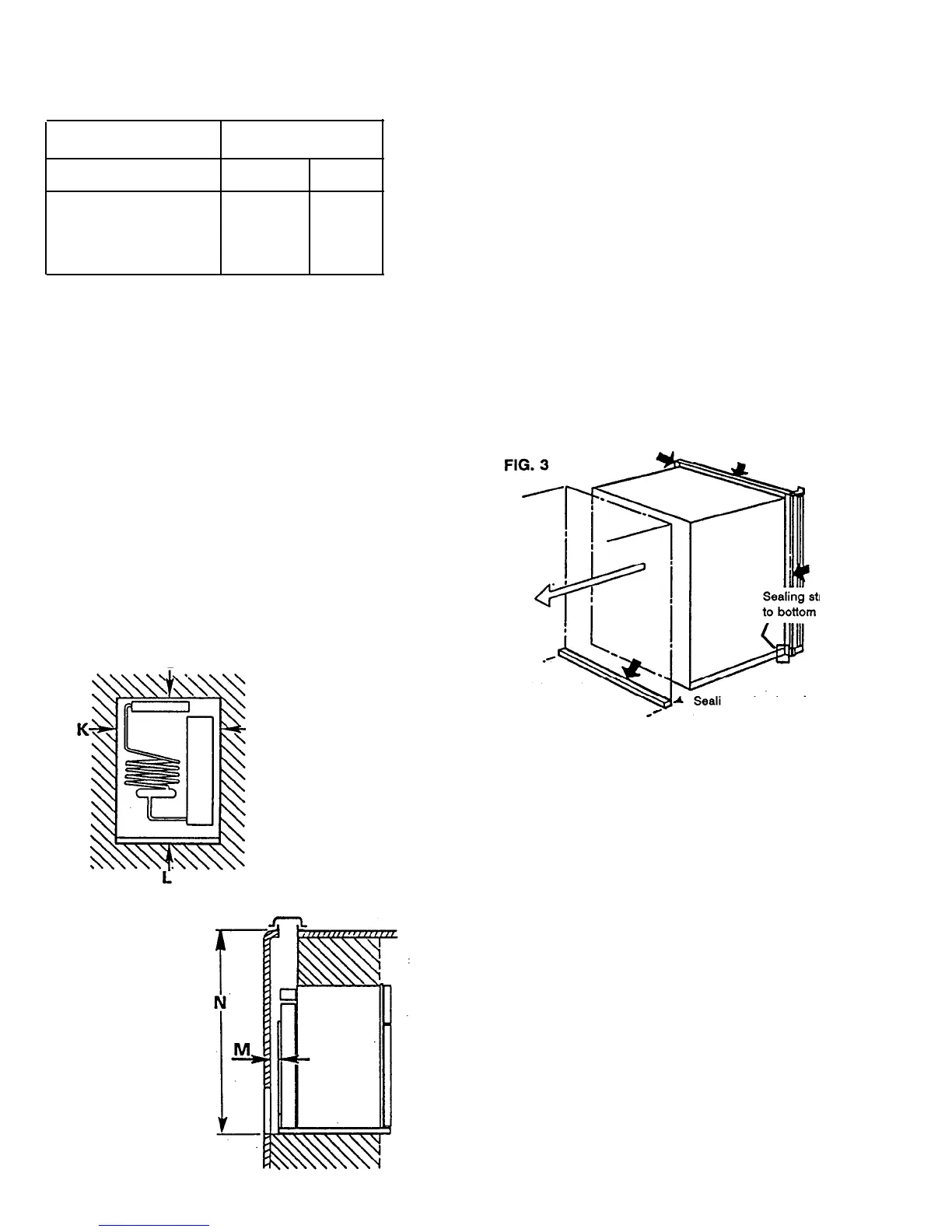

6. CLEARANCES
Minimum clearances in inches to combustible materials
are:
G: Top 0
K: Side 0
L:
Bottom 0
M: Rear
1/2
NOTE:
N: Ventilation Height
Clearance
‘M’
is between the
rearmost
part of the refrigerator and the wall behind the
refrigerator.
NOTE:
Clearance
‘N’
is the distance between the
bottom of the lower vent to the roof material. For
ventilation height, refer to Section A. Installation,
Item
5.
Ventilation Heights. See FIG. 2.
FIG. 2
G
7. INSTALLING REFRIGERATOR IN
ENCLOSURE
NOTE: DO NOT install the appliance directly on
carpeting. Carpeting must be removed or
protected by
a metal or wood panel beneath
the appliance, which extends at least the full
width and depth of the appliance.
The refrigerator must be installed in a substantial
enclosure and must be level. When installing the
refrigerator in the enclosure,
be certain there is a
complete seal between the front frame of the refrigerator
and the top, sides and bottom of enclosure. A length of
sealing strip is applied to the rear surface of the front
frame for this purpose. Also apply a sealing strip to the
foremost floor of the enclosure and apply a second
sealing strip to the bottom of the trim strip on the front
base as shown in FIG. 3. The sealing should provide
complete isolation of the appliance’s combustion system
from the vehicle interior.
rip applied
of trim strip
ingg
stripplaced on
front of compartment floor
-K
Be careful not to damage the sealing strip applied to the
floor of the enclosure when the refrigerator is put in
place.
The refrigerator is secured in the enclosure with six
screws and they must be installed in the following order:
First two screws installed on front base, Second two
screws installed in the top frame; Third two screws
installed in the rear base. Failure to follow the sequence
in securing refrigerator in enclosure can cause leakage
between the frame and cabinet. The plastic caps are
snapped in the front base to cover the screw heads and
the decoration strip is secured to the top frame. (See
FIG. 4, Page 3).
Any space between the counter, storage area or ceiling
and top of the refrigerator should be blocked. The heat
produced at the rear of the refrigerator will become
trapped in this space, making the top of the refrigerator
hot and reduce the efficiency of the refrigerator.
2
