Dometic Saneo B Installation Instructions

10
Installation of toilet
4.0 Installation of toilet
4.1 Installing the service door
The description for the installation of the
service door can be found in the document
supplied Dometic Seitz SK 5 )
(optional/depending on model).

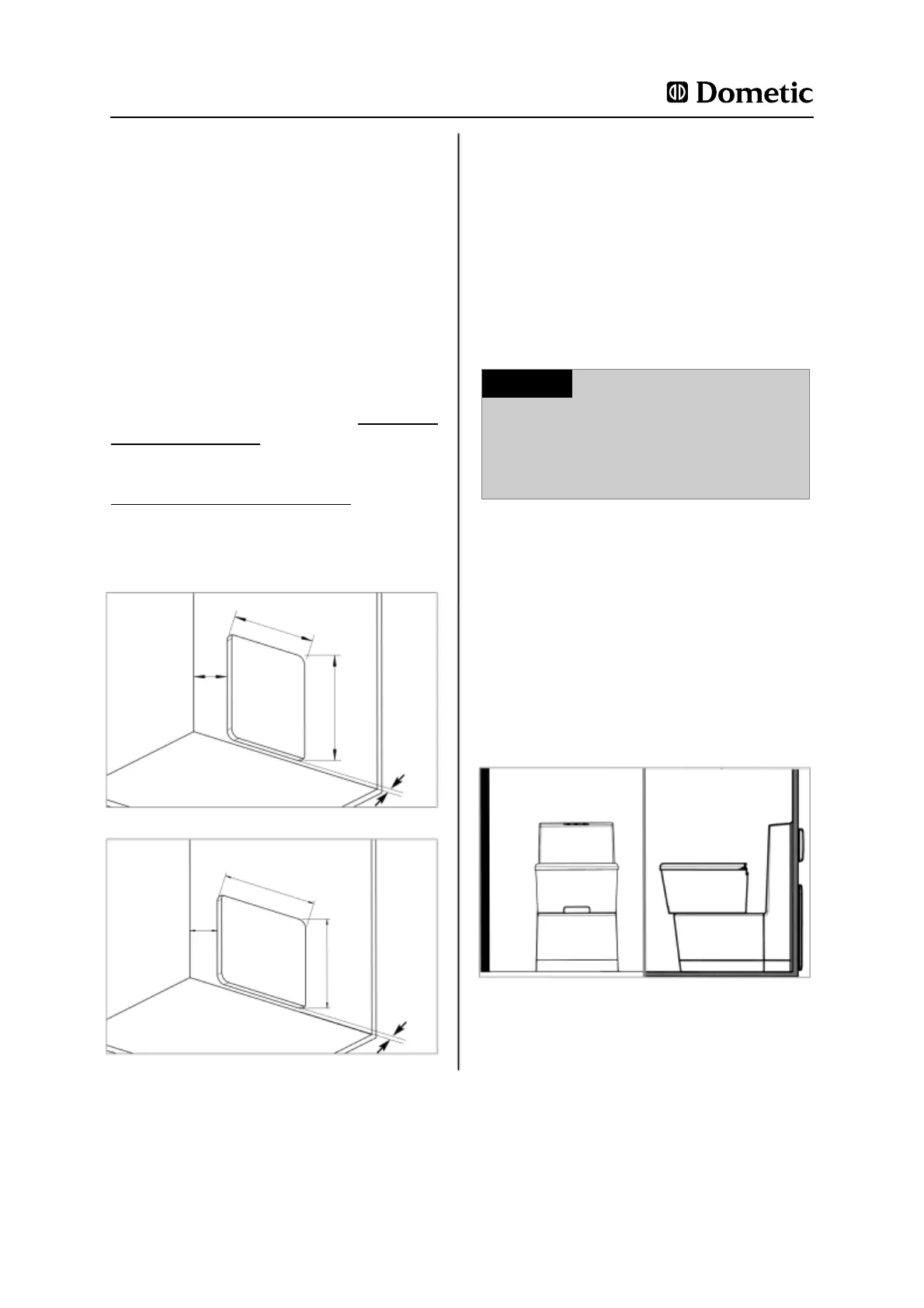

4.2 Create wall apertures
4.2.1 Wall aperture service door
Make an aperture in the wall for the cassette
with the following dimensions: for service
door SK5 vertical y
min
= 12.5 mm, y
max
= 22
mm; b = 310 mm +/- 1 mm, h = 360 mm +/- 1
mm.
for service door SK5 horizontal y
min
= 12.5
mm, y
max
= 26 mm; b = 360 mm +/- 1 mm,h =
310 mm +/- 1 mm.
The x value results from the toilet installation.
Observe the position of the service door
(template (3) and (4) on packaging).
b x h
y
SK 5 vertical Fig. 4
b x h
y
SK 5 horizontal Abb. 5
4.2.2 Wall aperture flap
The flap is applied when using Saneo BW and
Saneo CW models with an integrated water
tank. Use the template (1) , Item 5.3.1., to make
the aperture for the flap. You can find the
installation instructions for the flap under Item
4.5.
4.3 Installing the toilet
CAUTION!
All components of the system must be
installed in frost-protected areas. In
minus temperatures there is a risk of
damage due to
frost.
 Install the toilet according to the description
of the respective model.
 Only install the toilet against an upright wall.
 Leave at least 60 mm clearance from side
walls so that swivelling of the toilet top part
(with seat) is not restricted.
 Observe the dimension sketches and
templates, section 5.2, 5.3., 5.4 .
Fig.6
When installing the toilet in a wet room, we
recommend connecting the toilet with the
shower tub.
