Circuit Diagrams of Electrical Appliances
21-142

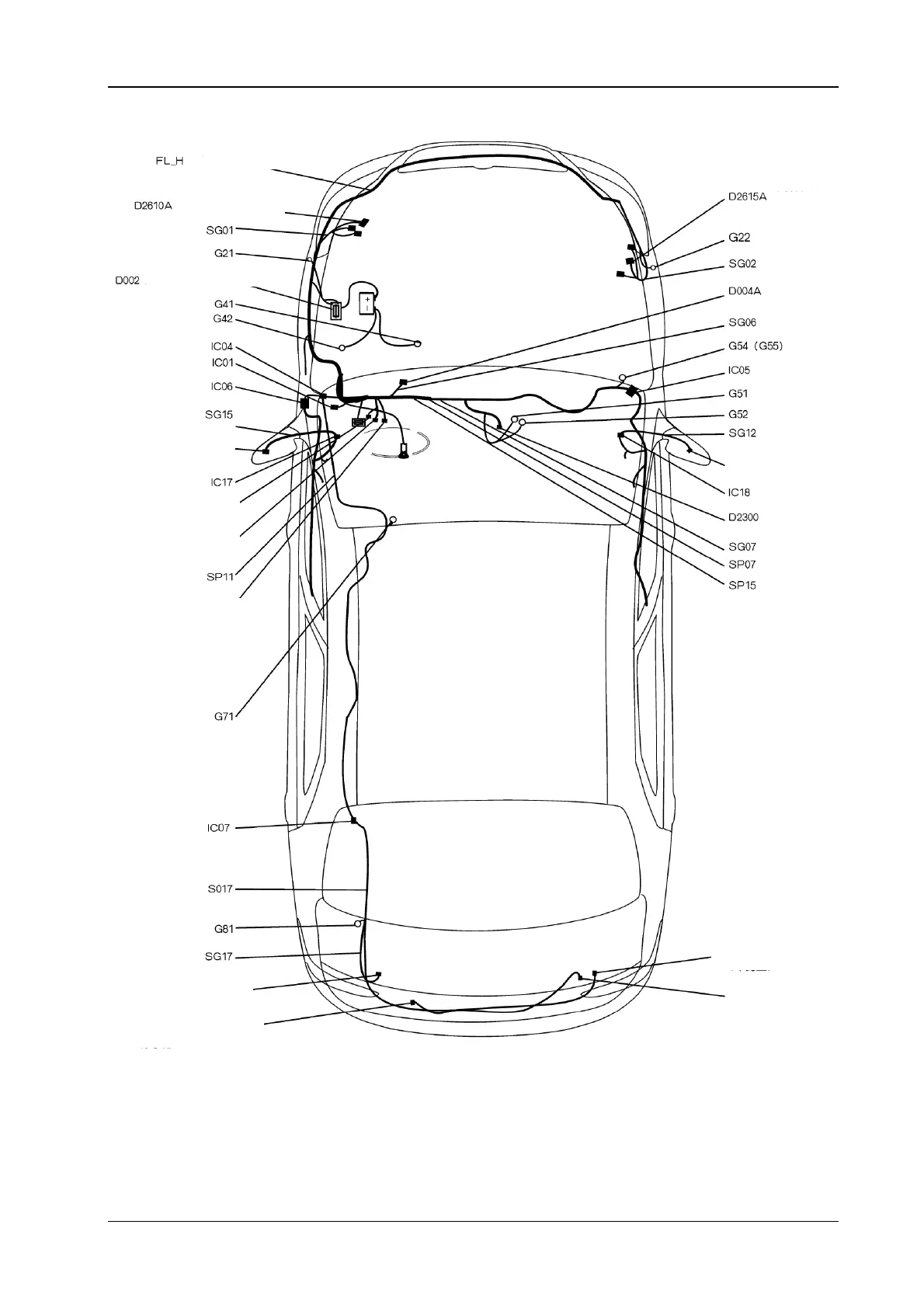

14.1 The electrical location diagram for the steering and danger alarm light (S30)
The front wiring harness
The left front steering light
The engine compartment
D2330 The left front steering light
(on the rear view mirror)
D020A The light combined switch
(the steering light switch)
D02B The light combined switch
(the side light switch)
D821 The left protection reply module
D2620 The right and left combined
light (on the vehicle body)
D2620A The left back combined light
(on the Luggage compartment)
The right front steering light
The combined instrument
(blue)
D2335 The right steering light (on the
rear view mirror)
The danger alarm light
switch
D2625 The right back combined
light (on the vehicle body)
The right back combined light (on
the luggage compartment )
