Circuit Diagrams of Electrical Appliances
21-170

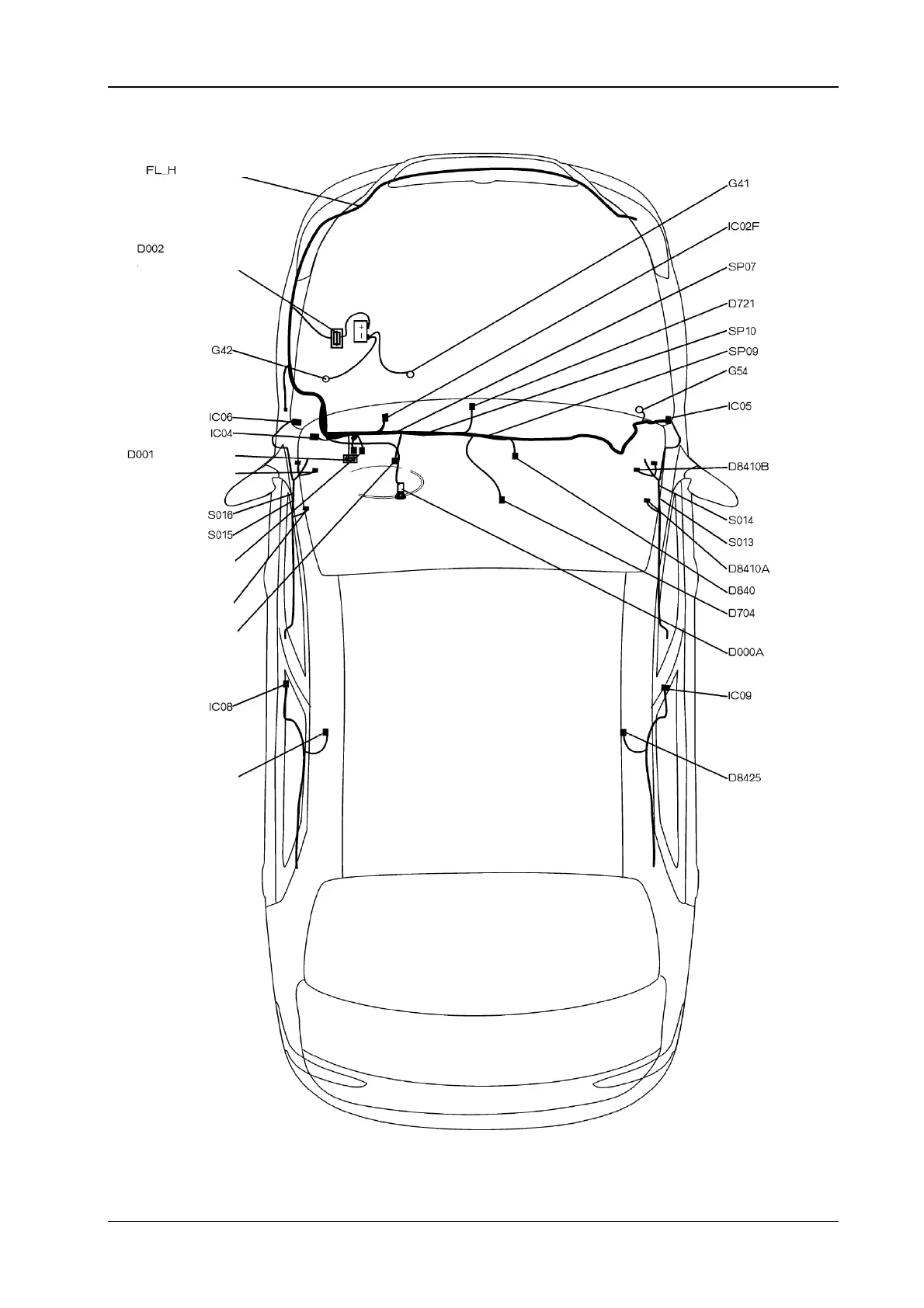

23.1 The electrical location diagram for the acoustic system S30 /H30
The front wiring harness
Engine fuse box
Cabin fuse box
D8410B The high frequency horn
D8410A The low frequency horn
D020B The side light switch
D004 The combined instrument
D8420 The low frequency horn
The multiple functional
display screen
The high frequency horn
The low frequency horn
The low frequency horn
Radio player
Manual brake switch
The low frequency horn
