Circuit Diagrams of Electrical Appliances
21-154

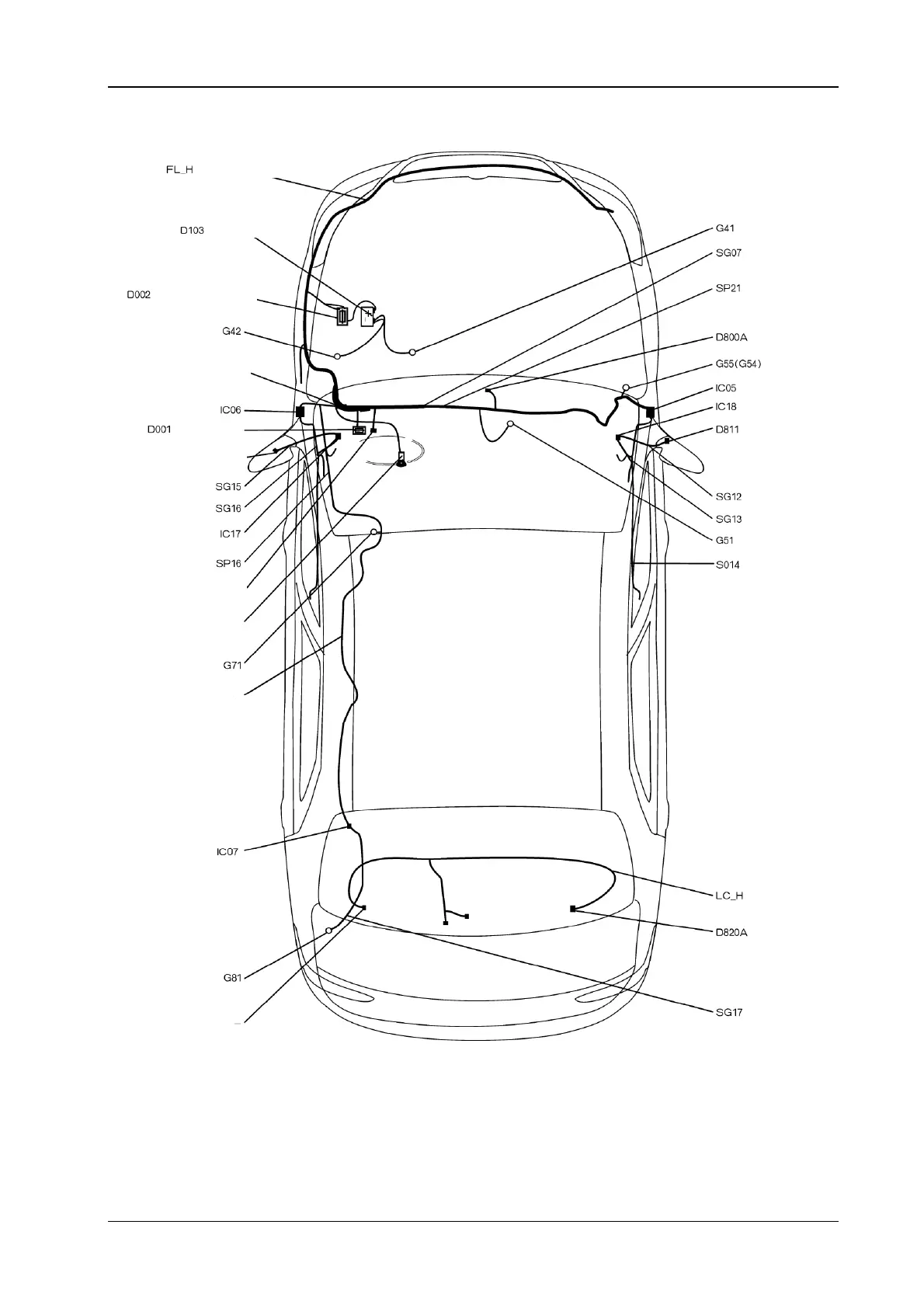

18.1 The electrical location diagram for the back window and rear view mirror S30
The front wiring harness
Battery
The engine compartment
fb
IP_H The instrument panel
wiring harness
Cabin fuse box
D812 The rear view mirror heating
D004B The combined instrument yellow
D00A The ignition switch
BD_H Cabin wiring harness
D820 B The back window heating
The back window heating +
The back wiring harness
The right rear view mirror heating
The manual operated air
conditionin
g
control module
